| US$50,000.00-100,000.00 | 1 Piece (MOQ) |

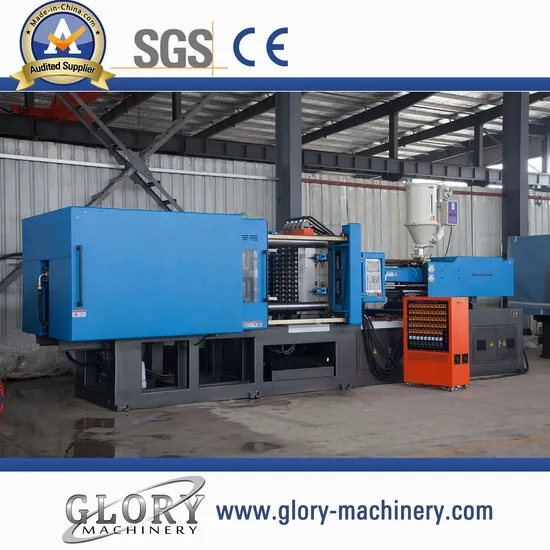

| MODEL/ | GM-1800A | ||||||
| INJECTION UNIT/ | A | B | |||||
| Screw diameter/ | mm | 45 | 48 | ||||
| Shot size(theoretical)/ | Cm³ | 372 | 420 | ||||
| Shot weight/ | g | 335 | 378 | ||||
| Injection pressure/ | Mpa | 168 | 148 | ||||
| Injection rate/ | g/s | 142 | 160 | ||||
| Screw L/D ratio/ | L/D | 23.1 | 21.7 | ||||
| Screw speed/ | r.p.m | 0-180 | |||||
| Nozzle Diameter/ | Srmm | 20 | |||||
| CLAMPING/ | |||||||
| Clamp tonnage/ | KN | 1800 | |||||
| Toggle stroke/ | mm | 440 | |||||
| Mould Thickness/ | mm | 180-470 | |||||
| Space between tie-bars/ | mm | 480X460 | |||||
| Ejector stroke/ | mm | 155 | |||||
| Ejector tonnage/ | KN | 70 | |||||
| Ejector number/ | Piece | 5 | |||||
| Hole Diameter/ | mm | 125 | |||||
| OTHERS/ | |||||||
| Heat power/ | KW | 11 | |||||
| Max. pump pressure/ | MPa | 16 | |||||
| Pump motor power/ | KW | 15 | |||||
| Valve Size/ | mm | 16 | |||||
| Machine dimension/ | m | 5.3X1.6X1.75 | |||||
| Machine weight/() | t | 5.5 | |||||
| Oil tank capacity() | L | 250 | |||||
