Factory Manufacturer Pet Bottle Plastic Recycling Line Plastic Washing Machine

Product Description

Factory Manufacturer Pet Bottle Plastic Recycling Line Plastic Washing Machine
Product Description:
The PET bottle recycling plant takes dirty bottles and transforms them into clean PET flakes. And the flakes can be further processed and reutilized with high commercial value. The production capacity we can make on the PET Bottle washing and recycling line can be 300kg/h to 3000kg/h. The line main purpose is intend to get the clean flakes from the dirty even mixture bottles or bottles slice during dealing with the whole washing line. And also get clean PP/PE collection, labels and paper chips etc.
The device divided into unpacking,washing,sorting,detecting metal,crushing,floating washing,hot washing,rubbing,rinsing,dehydration,drying and packaging process steps.

Process Flow:

NO	Process	Machine	Description
1	Break the compacted bales(Optional)	Bale Opener	As PET bottles generally arrive at washing plants in bales, or compacted bundles of plastic bottles, it must first be unpacked before the bottles can flow freely onto the belt conveyor system.
2	Primary separation of sand and gravel	Trommel	Remove small contaminants such as broken glass, paper/cardboard,metals,rocks.
3	Remove the label	Label Remove machine	Remove the label from the bottles.
4	Sort out different color bottles, and labels	Sorting Conveyor	Picking out the different color bottle and also the bottle still have the label, which make sure the end products of PET flakes same color and much more clean.Metal Detector is optional.
5	Crushing PET Bottles into PET Flakes	Wet Crusher	Using a wet crusher, whole PET bottles are cut into PET flakes between 12-18mm in size.
6	The First Time Floating washing the PET flakes	Floating Washer	A way to separate materials that float from those that sink, the sink/float separation tank is ideal for PET recycling as PET flakes sink while plastic film, PP/PE bottle caps, and other contaminants float.
7	Break down the oil & glue	Hot Washer	Using the hot water and chemical to break down the oil and glue on the PET bottles.
8	Separating the contamination	High Speed Friction Washer	The friction wash uses high speeds to create friction between the PET flakes where debris is effectively scrubbed off.
9	The Second Time Floating washing the PET flakes	Floating Washer	It used in cleaning pet flakes, make the flakes cleaner and whiter.
10	Dry the PET flakes	Dewatering Machine	The dewatering machine uses centrifugal force to spin water moisture off the PET flakes.
11	Hot air to dry the PET flakes	Pipeline Dryer	Using the hot air to take the humidity away from the clean material.

Components:
Technical Features:
1.High automation level, try best to reduce your cost on labor (especially for three shifts) and ensure high processing capacity: 100-2000kg/hr.
2.Friendly control system (PLC integrated & separated control on each machine) and Touch screen panel, easy for operation, monitor and emergency stop.
3.All parts contacting with plastic material and water are made of high-quality 304 stainless steel; ensure no second pollution to flakes.
4.This China Hot Selling Waste PET Bottle Washing Machine can easily wash and recycle waste PET bottle flakes. Equipment at the end of the washing line so that the completely dry flakes can be collected and packed directly after being washed.
5.The whole production line can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products.
6.Coordinating the production line with follow programmed work (granulating system), and it will make waste and dirty PET bottles to be the PET granule material and in order to producing new PET bottles.
Application Areas:
Bottles jars and other containers made of PET can be collected and recycled into a wealth of products. PET can be recycled into new PET bottles and containers, carpet and clothing, industrial strapping, rope, upholstery fabrics, boat sails, automotive parts, fibrefill for winter jackets and sleeping bags, construction materials, and many other items.
System Configuration:

No.	Machine Name	Note
1	Bale breaker	Custom
2	Belt Conveyor	PVC Belt
3	Metal detector	Custom
4	Label Remover	Remove the label from the bottles.
5	Manual Sorting Belt	Custom,PVC Belt
6	Belt Conveyor	PVC Belt

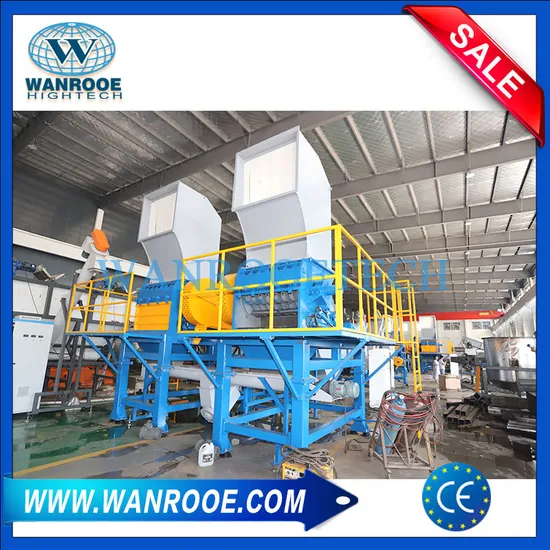

7	Crusher	Blade metal:alloy(9CrSi or SKD-II)
8	Screw Loader	Made of Stainless steel
9	Hot Washer	Made of Stainless steel ,can put some soda
10	High-speed Friction Washer	Made of Stainless steel Can be design Two-screw
11	Sink-Float Tank	Single-screw or Two-screw
12	Dewatering Machine	Vertical or Horizontal
13	Drying system	Made of Stainless steel
14	Storage hopper	Normally 1000L
15	Flakes Pneumatic Separating Machine	New style label remover for flakes
16	Electrical Control Cabinet	Siemens DELIXI Schneider ABB

Technical Parameters

Input capacity	500kg/h	1000 kg/h	2000 kg/h
Workshop(M*M*M)	42 (L)×10(W)×6(H)	55(L)×15(W)×6(H)	70(L)×18(W)×6(H)
Ancillary staff	6Persons	8 Persons	12 Persons
Installation power	156KW	307KW	420KW
Water Consumption:	2Ton/h	3.5Ton/h	5 Ton/h
Final product	Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: max.20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm	Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: max. 20oom Floatable contamination: less than 200ppm Total impurity: 320ppm	Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: Max. 20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm

---
