Horizontal Manual Heavy Duty Big Bore Metal Lathe Machine Cw62103c

Product Description

Horizontal manual heavy duty lathe machine CW62103C FEATURE
Horizontal manual heavy duty lathe machine Feature
harden gear,harden bed way
2.130mm spindle bore for optional
3.610mm bed way,strong rigidity
4.Solid bed,good antivibration 5. Head stock runs on taper roller bearings
6. Powerful 11KW motor for heavy-duty cutting
7. Overload slip clutch enclosed in apron. SPECIFICATIONS

Model	Unit
		CW62103C	CW62123C	CW62143C	CW62163C	CW62183C
Swing over bed	mm	1030	1230	1430	1630	1830
Swing in gap	mm	1200	1400	1600	1800	2000
Swing over cross slide	mm	700	900	1100	1240	1440
Distance between centres	mm	1500; 2000; 3000; 4500;6000
Length in gap from face plate	mm	380
Spindle nose		C11 or D11
Spindle bore	mm	105,130
Spindle speeds	rpm/steps	10-800/18 7-576/18 6-480/18
Cross slide travel	mm	615 715 815 915
Top rest travel	mm	225 300
Rapid traverse	mm/min	Axe Z:3200 ,Axe X:1400
Quill dismater	mm	120
Quill travel	mm	270
Quill taper		MT6
Bed width	mm	610
Metric threads	mm/kinds	1-240/53
Inch threads	tpi/kinds	30-2/31
Module threads	mm/kinds	0.25-60/42
Diametral pitch threads	tpi/kinds	60-0.5/47
Longitudinal feeds	mm/r	0.07-16.72
Cross feeds	mm/r	0.04-9.6
Main motor power	kw	11
Packing size (mm)	Length	3840; 4340; 5170; 6670; 8290
	Width	1700	1700	1850	2000	2200
	Height	1980	2080	2220	2280	2380
Gross weight	Kgs	5900	6500	7200	7800	8600
		6250	6850	7400	8200	9000
		6900	7500	8100	8900	9700
		8000	8600	9000	9800	10600
		9000	9600	10000	10500	11200

ACCESSORIES
Horizontal manual heavy duty lathe machine Stand Accessories

500mm 4-jaw chuck and flange

500mm steady rest(1 pc)

Dead centers

Reduction sleeve

Foundation bolts

Level blocks

Maintenance kits

Horizontal manual heavy duty lathe machine optional accessories
A)Chasing dial
B)800mm face plate
C)Follow rest
D)Live center
E)380mm 3-jaw chuck and flange
F)2 AXIS DRO Detailed Photos

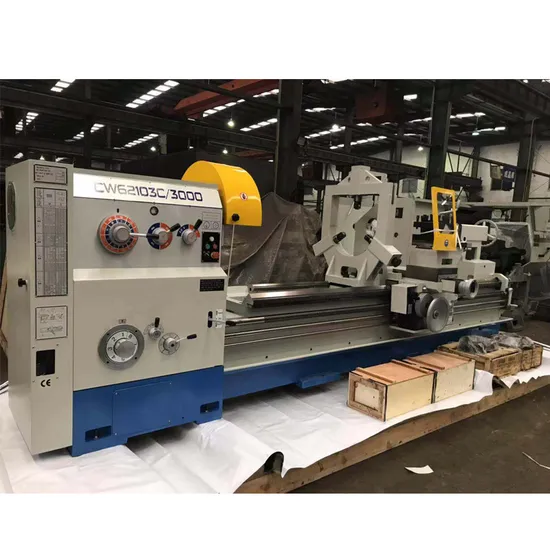

Horizontal manual heavy duty lathe machine more photos
After service
1. Our quality gurantee time is 12 months since the machine on board date.
A, During this period, if something damaged owing to our machine itself, we will supply you the spare parts free and post to you by DHL or some similar courier within 7 days

B. During this period, if machine problem is caused by operator own mistake, we will charge you the half costs for the spare parts, and charge you the DHL costs.
2. Exceeding the 12 months quality time, If you need some spare parts, we will have to charge you the spare parts on full value and charge you the DHL costs.
If you are interested in heave duty manual lathe machine, pls contact us
TENGZHOU UNI-TECH CO.LTD

Contact person: Kitty Xu

---
