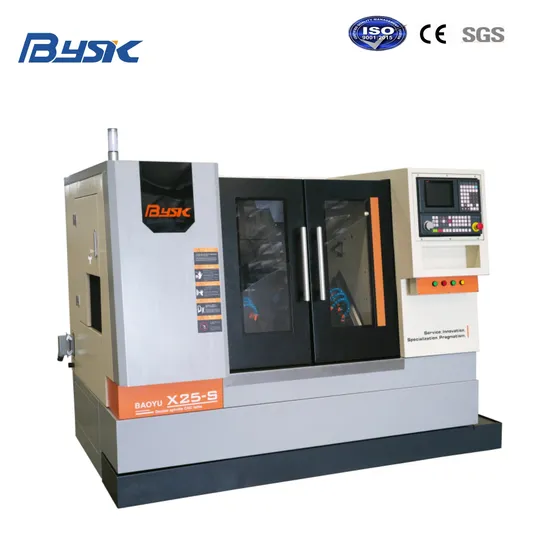

High Rigidity X25-S Slant Bed CNC Metal/Stainless Steel/Copper Cutting Lathe Machine

Product Description

Product Description
High Rigidity X25-S Slant Bed CNC Metal/Stainless Steel/Copper Cutting Lathe Machine
--X25-S cnc lathe is 2 spindle gang type cnc lathe,improve the efficiency of production,chip collection
--Body with cast iron slant bed, which provides strong shockproof resistance and reduces deformation,improve the durability
--The lathe can equipped with live tools to achieve turning ,drilling and milling, assembled with bar feeder or truss manipulator, to achieve automatic production.
Product Parameters
X25-S Slant Bed Turning And Milling CNC Gang Tools Lathe Machine With 2 Spindle

Power	Rated Voltage	Three-phase AC 380V
	Rated Frequency	50HZ
	Total Input Power	8kW
CNC System	LNC	T5800D
	Minimum Set Unit	0.001mm
	X Axis Pulse Equivalent	0.0005mm
	Z Axis Pulse Equivalent	0.001mm
	Max Programming Size	±9999.999
	Cutting Speed	1--4000mm/min
	X Axis Rapid Feed Speed	20000mm/min
	Z Axis Rapid Feed Speed	20000mm/min
Main Spindle	Max Bar Diamater	Φ25mm
	Main Spindle Through-hole Diamater	Φ26mm
	Max Rotating Diamater	Φ150mm
	Main Spindle Center Height from Ground	900mm
	Main Spindle Speed	0-4000r/min
	Main Spindle Motor Power	1.8kW
Travel	X Axis Travel	800mm(Diamater)
	Z Axis Travel	250mm
	X Axis Servo Motor Power	0.85kW
	Z Axis Servo Motor Power	0.85kW
	Guide Rail Form	Liner Guide Rail

Gang Tools System	T-notch+Dovetail Tools Arrangement	17pcs
	16*16Square	4pcs on each side(left&right)
	Φ25 Hole Cutter	2pcs on each side
	Φ16 Hole Cutter	2pcs on each side
Cooling System	Cutting Oil Motor Power	0.45kW
	Cooling Box Capacity	150L
Lubrication System	Motor Power	25W
	Capacity	2L
lathe Size	Length * Width * Height	2270*1560*1860
	Lathe Weight	2800KG

X25-S Configurations
Item	Specification	Origins
System	LNC	LNC T5800D
Main Spindle	25 Spindle Unit	China Baoyu
Main Spindle Motor	1.8kW Servo Main Spindle Motor	Inovance Absolute Value+Lines
X Axis Motor	0.85kW Servo Motor	Inovance Absolute Value+Lines
Z Axis Motor	0.85kW Servo Motor	Inovance Absolute Value+Lines
X Axis Screw Rod	655*2510	Taiwan Joint Venture
Z Axis Screw Rod	575*3210	Taiwan Joint Venture
X Axis Guide Rail	MSA25LS	HIWIN/PMI
Z Axis Guide Rail	MSA30LS	HIWIN/PMI

Optional Configurations
End-face Live tool
Chuck type	ER16	Can be equiped with fly-cutter
Motor Power	1kW
Rotating Speed	3000r/min

Detailed Photos

Point 1 : Precision Liner guide rail and ball screw pair are adopted,improve the rigidity and processing accuracy.
Point 2 : The guide rail lubrication adopts the volume distributor with oil injection, to supply the oil to screw rod ,guide rail regularly, so as to reduce the waste of lubricating oil, to avoid environmental pollution.
Inner structure Advantage :
(1 Dual spindle dual gang tooling system, can work at the same time, One lathe equal to two lathes, improve the working efficiency.
(2 Adopts tool arrangement type, With stable tools change accuracy, high structural economy, can add live tools to realize turning and milling compound processing
(3 The double spindle adopts synchronous spindle, high speed of revolution, accurate precision, low noise and high synchronization

LNC T5800D CNC System Electrical Cabinet Driver Cabinet
X25-S CNC Lathe will configurated with oil film bar feeder, with high-pressure oil pump,oil mist machine, to improve the performance of lathe,extend the life of lathe
Processed Product Display
Some Suggestions:
--Max profile diameter within 7mm, suggest model B07,CK1107. B07 is with dual spindle type, CK1107 is single spindle type.
--Max profile diameter within 13mm, suggest our model B13,CK1113.
--CK0620A2 particularly suitable for processing of complex-shaped parts such as linear/taper/arc threads, Configurated with center frame can process slender shaft parts.
--CK0625A is suitable processing of various precision parts such as instruments/meters/electronic connectors/optics/ automotive and motorcycle parts/small hardware.
--CK32A3 is multi-functional Turning&Milling CNC Lathe, CK32A3-B is with dual spindle based on CK32A3.
--X42 is slant-bed cnc lathe, suitable for processing of shaft/disc parts with complex/variety of sizes/high precision request.
--More details pls contact us, or send your drawings of profiles, we will give you professional recommendation.
Company Profile
Packaging & Shipping
FAQ
1. Do you accept OEM/ODM?
Reply: Yes. OEM/ODM are welcomed.
2.How many years of production experience does your company have?
R: Over 10 years,We have several professional and experienced technical instructors to guide you for after-sales.
3. Is it possible to deliver quickly (or how many days is the delivery guaranteed, the delivery deadline)?
R: Yes, in common condition , lead time about 30- 45 work days
4.What are the after-sales services?
R: We have professional technical team, can solve your problem 24 hours online.
5. Does this product accept customized services? What specific aspects can be customized? (Such as color, shape, size, etc.;)
R: Yes , customized service is workable , like print your company logo etc.
6. Do you accept small quantity orders (or what is the minimum order quantity, etc.)?
R: Yes, 1 set machine also be available.
7. What are the characteristics of the material of this product?
R: High quality gray cast iron with CE Certificate.
8. What are the unique functions and features of this product?
R: Comparable to European quality Swiss type cnc lathe machine, With high cost-effective, and obtained multiple domestic certifications in China, in addition, As an independent production enterprisewe have ourself technical research team.
9. What are the application areas or uses of this product?
R: Widely appled in Communication Equipments,Connectors, 5G Products, Mobile Phones, Household Applications, War Industry, Spaceflight, Medical Devices, Car, Water Heating, Miniature Shaft, Optical Instrument, Timepiece, Glasses and various hardware accessories.
10. Is it in stock? Can it be wholesaled?
R: Some models have, need confirm
11. Are there any second-hand products for sale?
R: No,sorry
12. What cnc system you use?
R: Our cnc operate system is the BYSK190, this is our company's own brand, and has always been popular in the market because of its easy operation and comprehensive functions, in addition, LNC system also be optional.
13. Are you factory ? and where is your factory located ? How can i have a visit there ?
R: Yes it is. Our company is located at Jianshe Road No.1, Economical District, Guangde,Xuancheng City,Anhui Pronvince. You are warmly welcomed to visit us.

---
