JBC CD-2BHQF Station Soldering-Nishizaki

Product Details

Product Description

Product Description
For general electronics application.
It Includes JBC Most Efficient Soldering System offering the best quality and extending tip life up to 5 times.
• Complete Tip Cleaning System, with exclusive fast and safe Cartridge Exchanger.
• Connectivity:
- Fume Extractor
- Datas Download
- Software Updates
- Traceability
• T245 General Purspose Handle working with C245 Cartridges
REFERENCES
CD-1BQF
120 V
CD-2BQF
230 V
CD-9BQF
100 V
PRODUCT COMPOSITION1

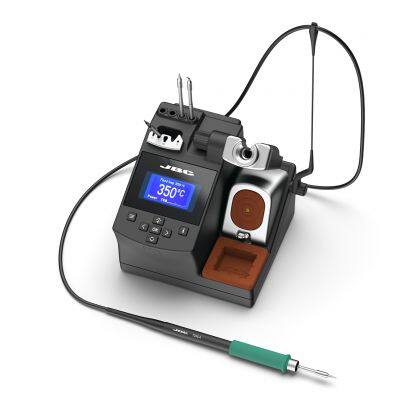

CD Soldering Station
1
T245 General Purpose Handle
(cartridge not included)
SPECIFICATIONSSelectable Temperature
90 to 450 ºC / 190 to 840 ºF
CONNECTIVITY
USB-B
Software PC / Firmware update
Equipotential bonding
Optional connection to EPA
FAE Connector
Smart Fume Extractor control
Earthing Fuse
F 1.25A
ESD/EOS
ESD safe
Tip to ground vol./ resist.
Meets and exceed
ANSI/ESD S20.20-2014 IPC J-STD-001F
POWER SUPPLY
Peak power
130 W - 23.5 V
Operating temp. range
10 to 50 ºC / 50 to 122 ºF
DIMENSIONS AND WEIGHT
Compact Stations
170 x 176 x 145 mm / 2.74 kg.
6.69 x 6.93 x 5.71 in / 6.04 lb.
Package
234 x 234 x 258 mm / 3.34 kg.
9.21 x 9.21 x 10.16 in / 7.36 lb.

---
