Product Description
Product Description
1.Parameters:

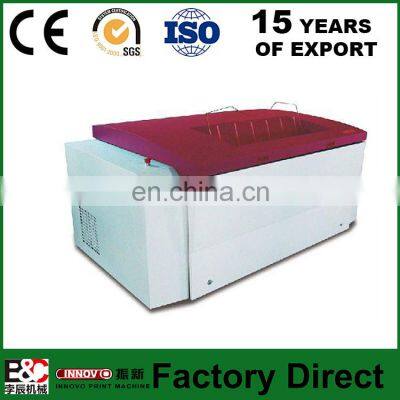

Ausetter UH Series Specifications
|
Model
| Ausetter 400UH S
| Ausetter 400UH E
|
Exposing Method
| External Drum
|
Imaging System
| 32-channel
| 24-channel
|
Discrete 405nm laser diode
|
Throughput
| 22 plates per hour
| 16 plates per hour
|
800mm×660mm 2,400dpi
|
Plate Size
| Max. 800mm×660mm, min.400×300mm
|
Exposing Size
| Max.800mm×646mm, min. 400mm×284mm
|
Max Output Power
| 150mw
|
Plate Thickness
| 0.15mm to 0.3mm
|
Resolutions
| 2,400dpi
|
Repeatablity
| Continuous exposing for four times or above on the same plate with a temperature of 23°C and humidity of 60%)
|
Interface
| USB2.0
|
Plate Loading
| Semi automatic
|
Weight
| 800KG
|
Size (W×D×H)
| 1,900mm×1,200mm×1,000mm ( W×D×H )
|
Power Supply
| single-phase 220AC, +6%, -10%, Power Consumption: 4KW
|
Environment
| recommended 21-25°C,Max. 18-26°C,humidity 40-70%
|
2.Description:
Using Traditional Plates
Plates cost is tremendously cut down by utilizing traditional PS plates to expose directly.
Mature and reliable 32-64 channels; Discrete 405nm laser diode technology.
Extremely clear and sharp screen dots can be exposed; impression rate is high and it’s operated in light room; Service life extends as long as tens of thousands of hours; Replacement is economic and convenient.
Exposure Design with External Drum Style
The printing plates are clamped and bent in the style closest to the press, high-quality and exactly accordant dots are exposed and printing formes are output at high speed up to 22 pages of 800x646mm per hour.
Dynamic and Automatic Focusing
Track in real time the variation of surface fluctuation and adjust the lens forwards or backwards to assure the distance between exposure dots and lens is unchangeable. Each laser spot is exposed at the best focal length to assure all the screen dots are accordant, clear and sharp.
Special Screen Dots Control Technology
Screen dots gain problems caused by size of laser spots are accurately compensated for so that 1%~ 99% grayscale gradients is perfectly presented.
Convenient Operation
High-speed USB2.0 interface makes Ausetter 400 have Plug and Play function like a desktop printer. The aided output management software (Tiff download) can realize seamless link with any mature workflow.
3.Company strength:
1.15 years factory experience
2.10 years export experience
3.Over one hundred professional factory workers
4.100% quality guarantee,supply all kinds of certificates
5.Good after-sales serive,we send engineers to repair machine overseas.
6.Primary products:
Automatic High Speed Flute Laminater
ZXSCM Book Case Making Machine
650UV Coating Machine
ZX-650C Manual Paper Pasting Machine
Box Making Machine
Hot Melt Gluing Machine and Gluing Machine
Table Gluing Machine
Paper Pressing Machine.etc
7.Following is our factory pictures:
4.Certificate:
5.Trade show:
6.Packaging & Loading:
Welcome to visit our factory!
>>
