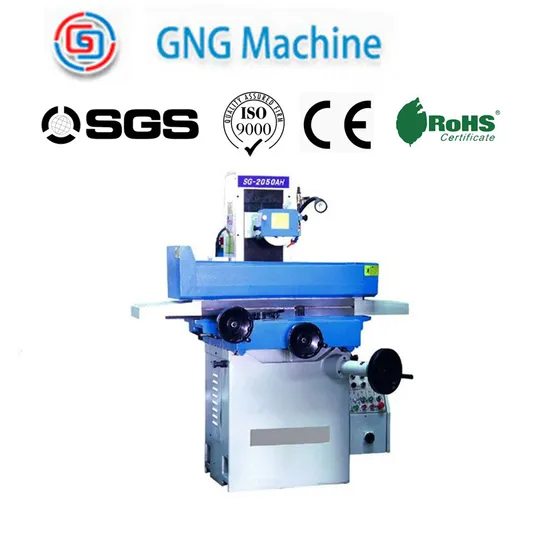

Multi-Function Surface Grinder Machine

Product Description

Min. Order Quantity: 1 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
Type: Surface
Grinding Machine
CNC or Not: Normal
Max. Grinding Diameter: 238
Max. Grinding Length: 510
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: SG2050-H
Voltage: 220V
Power(W): 1500W
Dimension(L*W*H): 1900X1720X2175
Weight: 1600kgs
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: Packed in playwood case
Delivery Detail: 30-45days
Specifications
Max. Width to be ground 238mm
Max. Length to be ground 510mm
Table size 200X400mm

SG SGA saddle moving surface grinder
Item/Model		Unit	SG-2050H/AH SG-2050AHR SG-2050AHD		SGA-2550AH SGA-2550AHR SGA-2550AHD
table size(WxL)		mm	200x400		250x500
max. longitudinal travel		mm	510		560
max. cross travel		mm	238		275
max. distance from spindle center to table		mm	450		450
electro magnetic chuck size		mm	200x460		250x500
speed of table longitudinal movement		m/min	7-23
table transverse movement	auto feed	mm/min	0.1-8
	rapid speed	mm/min	990
	feed of handwheel	mm/div	0.02
wheelhead vertical movement	auto feed	mm	---(H/AH/AHR model) 0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model)
	rapid speed	mm/min	---(H/AH model) / 460 (for AHR model)
	feed of handwheel	mm/div	0.005
grinding wheel	speed	rpm	2850(50Hz), 3450(60Hz)
	eize(ODxWxID)	mm	200x20x31.75
spindle motor		kw	1.5		2.2
hydranlic motor		kw	0.75
cooling pump motor		kw	0.04
elecating motor		kw	---(Ah model) 0.25(AHR model) 0.5(AHD model servo motor)
cross feed motor		kw	1.04
max. loading capacity of table(include chuck)		kg	120		180
total rated power		kw	3		3.7
height of machine		mm	1675
floor space(LxW)		mm	2050x1400		2300x1600
Gross weight		kg	1600		1800
package dimensions(LxWxH)		mm	1900x1720x2175

---
