Aluminum Foil Coil Coating Machine Manufacturer/Aliuminium Foil Color Coating Line/Plant

Product Description

Weifang HiTo Equipment Engineering Co.,Ltd
Innovation is our Mission. It is key for providing our customers with a competitive advantage. Our innovative engineering team applies our technology to offer a tailor made solution to your individual requirements consistent with your preferences, production goals and budgets.
The competitive advantage of HiTo stems from being able to offer the world's best technology at competitive pricing, with the backup of full & ongoing specialist support. In short, we offer a world class supply solution that is second to none.

The color coating unit adopts double-coating double-baking model and hot air circulation heating process. Material of base plate: electro-galvanized plate, hot-dip galvanized plate, hot dip Al-Zn plate, cold-rolled steel plate , Aluminum Coils etc. Raw material:cold rolled strip,GI,GL,aluminum strip, 3-25Tons Thickness of strip steel: 0.12-1.8mm, Width of strip steel: 600-1650mm Process speed: 30 - 200m/min Production capacity: 30,000-300,000 Tonnes/year
Process Flow of the color coating line:
We provide Pattern Printing System to produce pattern color coated steel, like the mood grain, marble/brick pattern and so on.
We offer the following services to our customers:
· Project feasibility
· Equipment design
· Installation and commissioning
· Technology transfer
· Training of operators and production personnel
· Product testing
· Downstream Equipment
· Ongoing technical support

Nominal Thickness	Allowable Deviation of Thickness in Case of the Following Thicknesses
	General Precision PT.A		High Precision PT.B
	≤1200	>1200-1500	≤1200	>120-1500
0.20-0.40	±0.05	±0.06	±0.03	±0.04
>0.40-0.60	±0.06	±0.07	±0.04	±0.05
>0.60-1.0	±0.07	±0.08	±0.05	±0.06

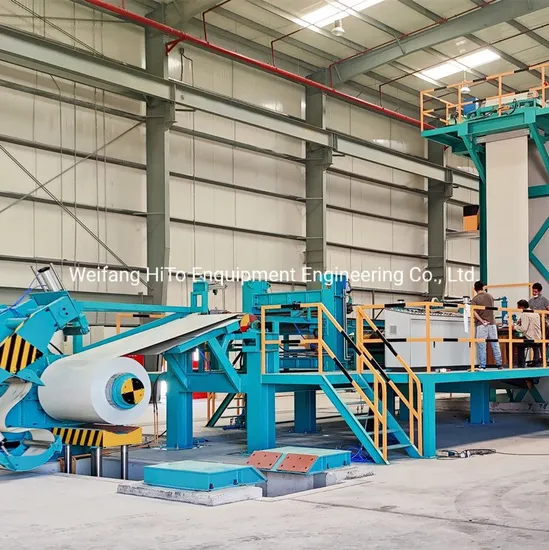

Factory
FAQ
Give us the connected electrical load of machine in KW
A: 850-1000 Kw
We insist all program software and HMI text should be in English language not in chinese.
A: Yes. All program software and HMI text are English language.
Can I choose a configuration
A:Yes,sure
