Bore Hole Drilling Machine Automatic CNC Drilling Machine

US$13,970.00-25,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZA80
Controlling Mode
CNC
Number of Shaft
6
Hole Diameter
50-100mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE
Condition
New
Max.Drilling Diameter
80mm
Spindle Taper
Mt6
Spindle Travel
260mm
Spindle Motor
11 Kw
Control
PLC Auto Drilling Machine
Transport Package
1900X2100X2600 mm
Specification
3 tons
Trademark
TOKMC
Origin
China
HS Code
84592900
Production Capacity
100 Sets/Year

Product Description

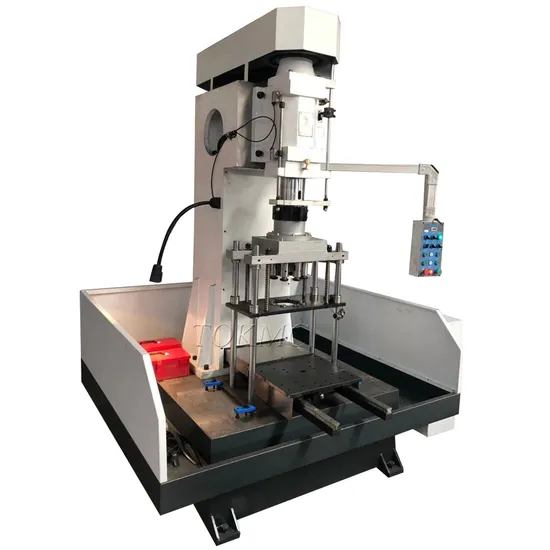

CNC auto drilling machine for drum hub
Item ZA50 ZA80
Effective table size 700x500 800mm*1100mm
Diameter of vertical column Φ160 Rectangular 400*500
Spindle diameter Φ110 Φ160
Spindle taper MT5 MT6
Distance from spindle center to table surface 300mm-850mm Customer
Spindle travel 230mm 260mm
Spindle speed Fixed speed
Optional :variable 		Fixed speed
Optional :variable
Spindle motor 5.5KW 11KW
Max.drilling diameter Φ50 Φ80
Weight 1 TON 1.8 TON
PLC CHINA CHINA

Main parts list
Name Brand Origin
Spindle motor HQF Taiwan
Lubrication pump motor GEYAO Taiwan
Lubrication pump LS Taiwan
Hydraulic valve YOUYAN Japan
Fluent valve HDX Taiwan
Frequency control XINJIE China
Switch for travel TEND Taiwan
Button KNDELE China
PLC Brand XINJIE China
Bearing NSK Japan
Electrical parts Schneider France
