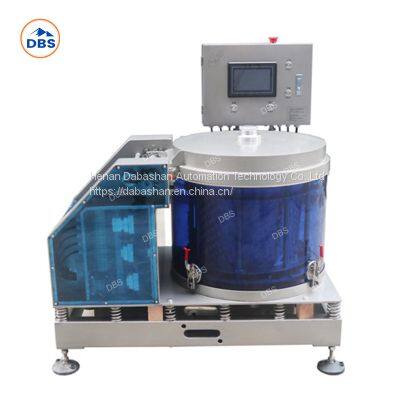

Frequency Conversion Dehydrator

Product Description

Product Description
Product Description
The frequency conversion dehydrator uses frequency conversion technology and photoelectric sensing technology to realize control of the dehydration time, dehydration speed, and start and stop.
The operation is safe and reliable, and convenient, and the noise of vibration is low.
The control system consists of control elements such as high-end frequency converters and photoelectric sensors.
The open structure design of the upper cover uses the oil-gas mixed shock-absorbing spring, and the design of the visual window, so the frequency conversion dehydrator is convenient to use.
It adopts a frequency conversion adjustment method and dehydration timing function and is equipped with an emergency stop switch device.
The driving motor adopts a three-phase asynchronous motor with variable frequency speed regulation, which has stable operation and convenient speed adjustment.
Features
The dehydrator is a rubber shock-absorbing type, which can avoid foot vibration during operation due to an unbalanced load in the drum.
The outer shell is made of stainless steel plate, the water outlet pipe is on the side of the barrel, and the material of the base and the column foot is cast iron.
The main shaft is made of high-quality steel, equipped with two bearings, and the lower end is supported by a thrust ball bearing to reduce wear and save power.
The dehydrator adopts a time controller to control the working time, which can be freely set according to the dehydration time of the raw materials.
Technical Parameter

Dimension (L/W/H)	8806701050mm
Total Installed Power	1.5kw
Production Capacity	500kg/h
Basket Volume	50L/60L
Voltage	380V/50HZ
Equipment Material	SUS304 Stainless Steel
Basket Diameter	420mm
Basket Depth	370mm
