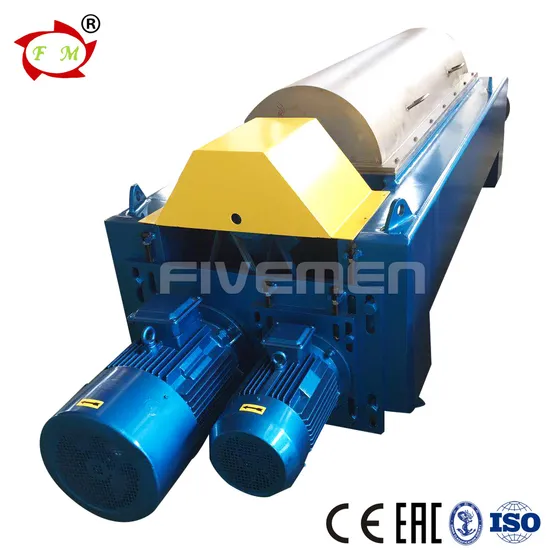

Medical Centrifuge Laboratory Lw Decanter Centrifuge Used for Tea Polyphenol Extract

Product Description

Instruction
Horizontal screw centrifuge is for 0.002-3mm material for clarification, separation, dehydration, or
classify 1um-5um solid phased particles.
It is wide application range, work continuously, large processing capacity, low cost, convenient
maintenance and so on. It is the best equipment for separating solid-liquid.
Reference standard

1. Main standard of the national machinery industry.
JB/T502-2004 "spiral discharge sedimentation centrifuge"
JB/T9095-1995 "centrifuge, separator forgings, welding conventional NDT technology standard"
2. The national main standard
GB10894-89 "separation machinery noise sound power level measurement engineering method"
Application
It is widely used in chemical industry, light industry, medicine, food, paper making, mining and other industries.
For LW decanter centrifuge, we have two different types, one is LW decanter centrifuge , which is two phase centrifuge(solid liquid centrifuge),
another is three phase centrifuge (solid liquid liquid centrifuge.)
Appication:
1) City tap water, domestic sludge dewatering;
2) Oil drilling mud dewatering;
3) Sludge Oil Recovery;
4) Fruit juice separation
4) Refinery sludge concentrated dehydration;
5) Distiller 's grains dehydration;
6) Paper, printing and dyeing wastewater separation;
7) Medical sludge dewatering;
8) Soy protein dehydration;
9) Plant oil clarification and separation;
10) Cosmetic clarification and separation;
11) Bleaching powder separation.
Parameters :
2 phase Decanter Centrifuge:

Type	Bowl diameter(mm)	Bowl length/ Bowl diameter	Bowl speed (r/min)	Main Power(Kw)
LW180	180	2.5-720	6000	3-5.5
LW260	260	3.0-4	5000	7.5-11
LW355	355	2-4.5	4000	11-30
LW420	420	3-4.1	3600	18.5-37
LW450	450	2-4.4	3600	18.5-37
LW480	480	2-4.2	3200	18.5-45
LW500	500	2-4.2	3200	18.5-55
LW530	530	2-4	3200	22-55
LW580	580	2-4	2800	30-55
LW620	620	2-4	2800	37-110
LW760	760	2-3.5	2500	55-132
Note: In case of differences between the table and the user manual, the latter shall prevail.

3 phase Decanter Centrifuge:

Type	Bowl diameter(mm)	Bowl length/ Bowl diameter	Bowl speed (r/min)	Main Power(KW)
LWS355	355	3.3-4.5	4000	15-18.5
LWS420	420	4.1	3600	22
LWS500	500	4.2	3000	30
LWS530	500	4.2	3000	30
LWS580	580	4.1	2800	45
LWS620	620	4	2800	45
Note: In case of differences between the table and the user manual, the latter shall prevail.
