Diamond Wire Saw Cutting Machine for Granite Marble Quarry

Product Description

Diamond wire saw cutting machine for granite marble quarry
Products Description
· Zhongli diamond wire saw machine adopts dual inverter + PLC + touch screen electronic control mode.
· The control system adopts digital communication, which makes the circuit simple, high reliability and low failure rate.
· The operating system includes Chinese and English human-computer interaction interface. The screen is clear, visualized, abundant information, real-time dynamic parameter display and operating instructions transmit the action instruction signal to the PLC through the software button in the human-computer interaction interface.
· The fault phenomenon that appears in the operation of the equipment can be automatically detected and alarmed (fault information).
· The system adopts PID process control mode, and the equipment can realize automatic adjustment of the constant tension for the diamond wire saw under the automatic control mode.
· This system can be operated with two-speed control system (high speed: 2.15m/min; low speed: 0-0.358m/min), which can meet all working conditions.
· In order to meet the demands of different customers, this product is equipped with high and low grade machine, users can choose the suitable products according to their own conditions.
· General-purpose (This product that contains Chinese and English operating interface can be adapted to domestic and international market and can also be used different models of machine with different power).
· The high grade machine with redundancy facilitates the upgrading of products.
· The good compatibility, meaning the follow-up upgrade version can be compatible with the previous high-end general-purpose product, demonstrate a good continuity.
Advantage:
· Stable quality with reasonable price
· Low energy consumption and long life
· SGS/ISO certificate
· OEM/ODM
· Strictly raw material source and production quality control ensure stable quality.
Technical Parameter

Wire saw machine parameter
Equipment Model	MWQ-37AT	MWQ-45AT	MWQ-55AT	MWQ-75AT
Main Motor Power(KW)	37	45	55	75
Driving Wheel Diameter(mm)	800	800	800	1000
Length of Wire Saw(m)	20-80	20-100	20-120	20-150
Diameter of Wire Saw(mm)	≤11.7
Flywheel Speed(m/s)	0-40
Walking Speed(m/h)	0-90
Rotation Angle	360°
Walking Length(mm)	1900			2050
Length of Guide Rail(m)	4*2m
Environment Temperature(ºC)	-15~+40
Equipment Power Supply	AC380±20%V 50HZ
Machine Dimension(mm)	2000*1300*1500			2200*1450*1650
Net Weight(T)	2.2	2.3	2.5	3

Products Details

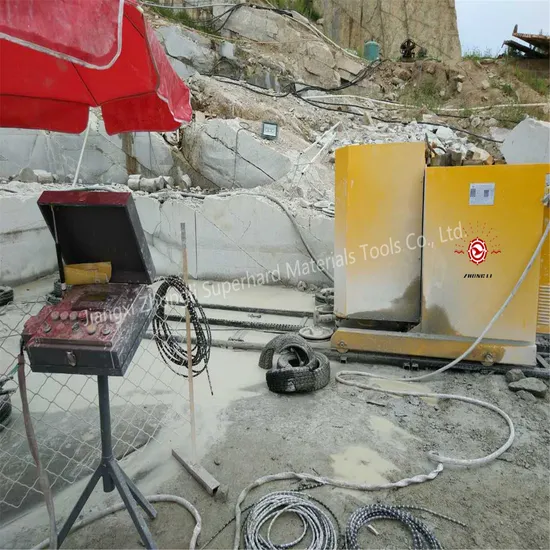

Application in quarry
Application methods
Packing Details
Shipping
Transport ways choose:
a. For urgent order with less weight or samples, we recommend express service.
b. For normal (regular) orders which weight over 45kgs, we recommend Air Cargo.
c. For big dimensional goods or heavy weight cargo, we recommend Sea Cargo.
Customers Distrubution & Exhibition

FAQ:
Q1:Are you a factory or trading company?
A1:We are factory. If you have time, welcome to visit our factory.
Q2. How is your quality?
A2. We have a very seriously control system. We guarantee the high performance of our products.
Q3. If we need technical support, can you offer us?
A3. Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product management staff, engineers and technicians.
Q4. How can we be your agent in our country?
A4. Please inform us your detailed company, we will discuss and propose helpful suggestion for you, and to find the best solution for you.
Q5. Do you offer free samples?
A5. Normally we do not offer free samples, but we could properly adjust according to detailed requirement.
Q6. Is there cheap shipping cost to import to our country?
A6. For small order, express will be the best choice; for bulk order, sea way is best but take longer time; for urgent orders, we suggest shipment by air or by express.
Q7. When you can reply to me when I send you an Inquiry?
A7. We promise to reply within 24 hours on receipt of your inquiry on working days.
