Jh-5 Recovering Prop Pulling Winch for Underground Mine Tunnel

Product Description

Introduction of Jh-5 Recovering Prop Pulling Winch for Underground Mine TunnelProp pulling winch, also known as slow-speed winch, is used for pillar-returning and topping of coal mining face in underground coal mines.Because of its low height and light weight, it is especially suitable for thin coal seams and steeply inclined coal seam mining faces, as well as various coal mining faces to recover metal pillars sunk into the floor or buried by gangue.JH series explosion-proof prop pulling winches are mainly for underground prop pulling, transportation, placing ground anchor, and chute shifting.
JH series prop pulling winch adopted spherical worm gear pair drive, compact structure, are symmetrically and rectangle arranged with the sledge-shaped chassis, smooth and flexible for underground self-moving.zmwm10 Parameter of Jh-5 Recovering Prop Pulling Winch for Underground Mine Tunnel

Model Parameter		JH-5	JH-8	JH-14	JH-20	JH-30
Steel wire rope average static tension (KN)		50	80	140	200	300
Steel wire rope (m/s) average speed		0.17	0.12	0.115	0.118	0.13
Drum	diameter* width (mm)	276* 372	280* 230	400* 317	430* 530	550*560
	rope capacity (m)	80	100	130	170	220
Steel wire rope	diameter	15.5	17	21.5	24.5	30
	construction	6* 19	6* 19	6* 19	6* 19	6* 19
	nominal extension strength (M pa)	1550	1550	1550	1550	1570
Explosion proof motor	Model	YBJ7.5-4	YBK2-160M-6	YBK2-200L1-6	YBK2-200L2-6	YBK2-280S-4
	Power (KW)	7.5	7.5	18.5	22	45
	Voltage (V)	380/660	380/660	380/660	380/660	380/660
	Rotate speed (r/min)	1450	970	970	970	980
Overall size: length* width* height		1450* 512* 515	1550* 530* 570	1955* 680* 815	2560* 968* 797	3300*1077*1034
Winch weight (including motor)		620	650	1350	2600	4460

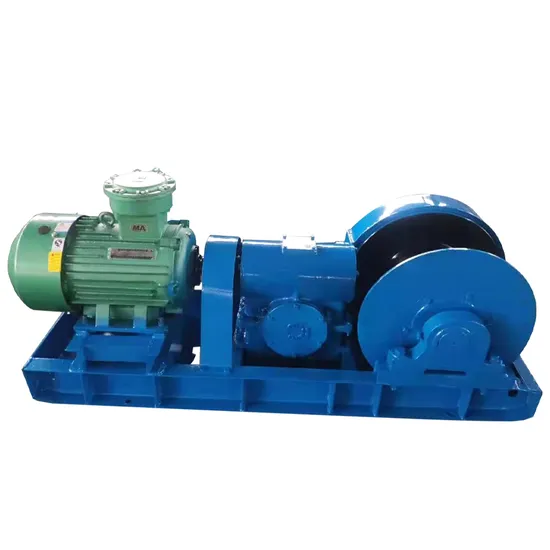

Pictures of Jh-5 Recovering Prop Pulling Winch for Underground Mine Tunnel

---
