US$8,900.00-9,900.00
|
1 Set
(MOQ)
|
Basic Info.
Tool Holder
Single-tool Holder CNC Lathe
Automatic Grade
Automatic
Processing Accessory
Centre CNC Lathe
After-sales Service
Free Service on Internet
Overall Size
2800X1500X1650mm
Payment Item
30% in Advance, 70% Before Shipment
Transport Package
PE Film
Specification
2800x1500x1650mm
Production Capacity
10 Sets/ Month
Product Description

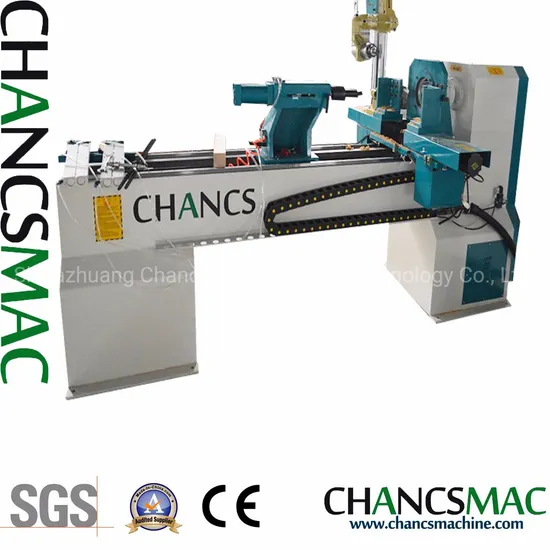

CNC Wood Lathe1.Introduction:
CNC Wood Turning Lathe can do various cylindrical work piece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.
2.Parameter:
| Model | CNC1530K-CH |
| Power supply | AC 380 V, 50HZ, 3 phase four wire |
| Machine Body | Machine body is casting, powerful and stable |
| Working Type | Single spindle with double tools |
| Function | Rotary engraving, Turning, Slotting, Helix, hollow, and line engraving |
| Working Length | 1500mm |
| Working Diameter | 300mm |
| Working Speed | 4000mm/min (5cm*90cm Stair Railing, 1.2Minute/Piece) |
| Main Motor Power | 5 KW |
| Converter | 5.5KW frequency converter for Variable frequency spindle |
| Cutting Tool | Three Tools Included |
| Control Form | CNC Computer/ DSP Controller |
| Support Software | Type3/Artcam/Ucancam/Caxa/Mastercam/UG/Wentai/JD |
| Linear Guide | Taiwan Brand - CSK High grinding linear square rail |
| Drive train | Taiwan TBI High precision ball anti-backlash screw |
| Spindle gear | Japan brand NSK |
| Total Weight | 1600Kg |
| Overall Size | 2800x1500x1650mm |
| Space needed | 2900x1700mm |
| Packing | Plywood box |
| Payment Item | 30% in advance, 70% before shipment |
| Guarantee Time | One Year |
3.Detailed Images:
4.FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact with us
1. Q:What's the MOQ?
R: One set will be ok.
2. Q: Provide customized machine Yes or NO?
R: Yes. We have professional designers and engineers to supply customized machines.
3. Q: What is payment terms?
R: 30%T/T in advance, the balance paid before shipment after inspection.
4. Q: What is the warranty time?
R: One year.
>>
