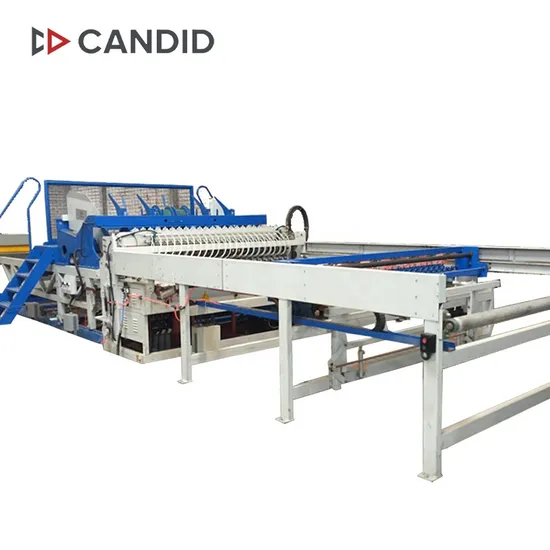

Full Automatic High Speed Wire Mesh Welding Machine Electric Welding Machine

Product Description

Candid Full Automatic Low Noise Wire Mesh Welding Machine Electric Welding Machine supplier for Construction with low price
Descriptions:
Galvanized Steel Wire Mesh Welding Machine consists mainly of main machine for welding, material feeding mechanism, step-by-step mesh-grid-size-fixing mechanism, transverse wire falling mechanism, mesh falling and conveying mechanism, material storage rack, electric control system, air-driven system and water cooling system, etc.
Function Features
Main characteristic: Both line wires and cross wires are coiled, can weld continuous wire mesh sheets and wire mesh rolls.
Main functional structures: Line wire straightening and locator device, line wire fed and locator device, cross wire straightening, cutting and alignment device,mechanical hauling wire mesh device, wire mesh locator device.

Advantages
It's compact in structure, easily to operate and with fully functions. The machine is used to produce welded wire mesh.
Technical parameter

name		Unit	parameter
Diameters of steel wires		mm	2-12
Maximum width of wire meshes		mm	2500
mesh size	Space of the vertical wires	mm	adjust
	Space of the horizontal wires	mm	50-300
welded points		Points	customized
Welding frequency		Times/min	60-80
power		VHz	380/50(can be customized)
Working pressure of the air-driving system		Mpa	≥0.8
Pressure of cooling water		Mpa	0.3≤P<0.4
Dimension (L x W x H)		m	25×3.2×2.3
weight		T	18

Product show
Auxiliary equipment
Package transportation
Customer witness
Recommend equipment
FAQ
1. What is your machine type:
A: We offer Construction welding machine, Reinforcing mesh production line, Animal cages mesh machine line and 3D Lattic girder welding machine
2. what is the raw material for netting:
A: Steel wire
3. What is the mesh size for your machine?
A: The mesh size is from 50*50-300*300mm
4. What is the sea port for delivery.
A: The nearest sea port from our factory is Tianjin port
5. What is the guarantee?
A: 12 months after commissioning or 18months after shipment. Whichever first is in valid. (it is excluding wear parts. Shipping cost for parts to be replaced during warranty period has to be borne by the customer.)
6. How to install chain link fence machine?
A: 1 technicians and 1 interpreter will be assigned to coordinate installation, commissioning and training, for the maximum duration of 15 working days your side will supply the air return tickets, food, accommodation(hotel and one day three meals), transportation, communication, insurance , tax ( if have) for the technicians and the interpreter. USD120.00/day/person working fee will be paid to them.

---
