Cost-Effective Tube Mill for Durable ERW Pipe Production

Product Description

Overview
Basic Info.

Model NO.	508*16mm machine	Application	Industry
Type	Pipe Production Line	Product Name	China Factory Price ERW Pipe & Tube Mill
Usage	making steel pipe	Cutting System	Computer servo flying saw
Round Pipe Diameter	Φ219mm~Φ508mm	Round Pipe Wall Thickness	5.0mm~16.0mm
Square/Rectangle Size		Square/Rectangle Wall Thickness
Origin	China	Export Port	Jiujiang
Advantages	Right feed	Machine Color	Green
HS Code	85152191	Production Capacity

Product Description

No	Item	Numerical value
1	Round tube diamter	Φ219 mm~Φ508mm
2	Round tube thickness	5.0mm~16.0mm
7	Produce speed	70m/second
8	Production length	4m-16m

Technological Process
Configuration

Num	Details include
1	Uncoiler
2	Hydraulic station
3	Hydraulic valve
4	Leveling machine
5	Accumulator
6	Forming welding and sizing machine
7	Solid state high frequency welder machine
8	Flying saw
9	Run-out table

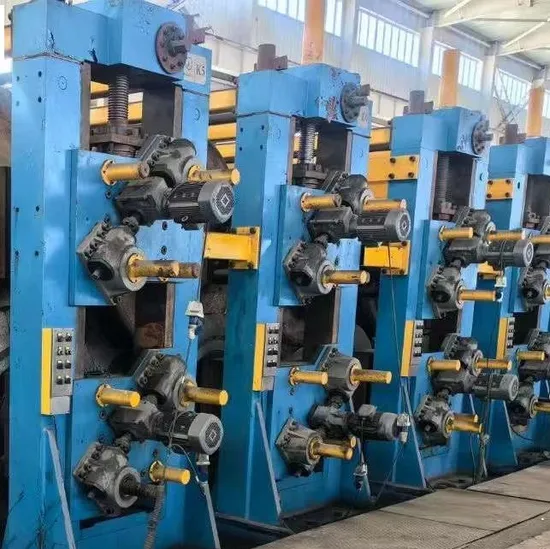

Photos of welded pipe equipment after renovation and refurbishment

Product Parameters

Model	Round Pipe		Square & Rectangular Pipe
	Diameter(mm)	Thickness(mm)	Size (mm)	Thickness (mm)
ERW 32	10-38 mm	0.5-2.0 mm	10x10~30x30mm	0.5-1.6mm
ERW 50	15-51 mm	0.5-2.5 mm	15x15~40x40mm	0.5-2.0mm
ERW 60	16-60 mm	0.5-3.0 mm	15x15~50x50mm	0.5-2.5mm
ERW 76	20-76 mm	1.0-4.0 mm	20x20~60x60mm	1.0-3.0mm
ERW 89	25-89 mm	1.0-4.5 mm	20x20~70x70mm	1.0-3.5mm
ERW 114	38-114 mm	1.0-5.0 mm	40x40~90x90mm	1.0-4.0mm
ERW 165	60-165 mm	2.0-6.0 mm	50x50~150x150mm	2.0-5.0mm
ERW 219	89-219 mm	3.0-8.0 mm	80x80~200x200mm	3.0-8.0mm
ERW 273	114-273 mm	4.0-10.0 mm	100x100~250x250mm	4.0-10.0mm
ERW 325	165-325 mm	4.0- 12.7 mm	100x100~300x300mm	4.0-12.0mm
ERW 426	19-426 mm	5.0-14.0 mm	150x150~350x350mm	5.0-14.0mm
ERW 508	219-508 mm	6.0-16.0 mm	200x200~400x400mm	6.0-16.0mm

Company Profile
Foshan Shunde jinyujie mechanical and Electrical Equipment Co., Ltd. (hereinafter referred to as jinyujie mechanical and Electrical Equipment Co., Ltd.): the company was established in 2001, the main business is the acquisition and transfer of second-hand welded pipe units, and one-stop to provide customers with installation, commissioning, maintenance, customization and other services. Focusing on the high frequency welded pipe industry for 30 years, 17 years of high frequency manufacturing and service experience. In the past 17 years, we have provided more than 2000 enterprises with high quality products and one-stop service support. Second hand welded pipe production equipment and accessories, talent and technology war.
A large number of second-hand real source, rapid integration of the entire second-hand welded pipe production line. Installation and commissioning services can be provided at home and abroad to ensure the rapid production of qualified steel pipes. Long term cooperation with a number of welded pipe equipment manufacturers, complete spare parts. Adhering to the development concept of "honesty, pragmatism, creating value for customers", we are committed to providing valuable services for customers.

Packing and Shipment
Our customer and partner
After Sales Service
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
Customized service
1.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly.
2.We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3. 12 Months guarantee and life-long technical support.
4.Well-trained & experienced staff are to answer all your inquiries in English and Chinese.
5.24 hours for engineer response.
6.Your business relationship with us will be confidential to any third party.
7.Good after-sale service offered,please get back to us if you got any questions.
Quality Control
Our engineer would test the machine before delivery to ensure the machine running smoothly.

---
