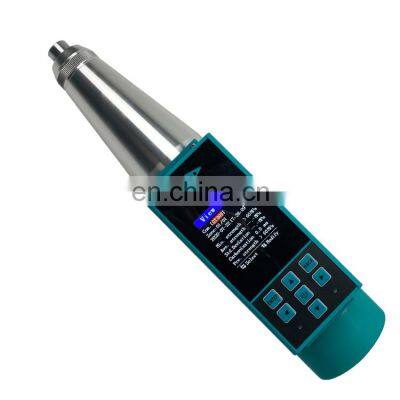

HT 225 Integrated Concrete test hammerProduct DescriptionHT225 Integrated Concrete test hammer is a non-destructive testing and evaluation instrument for the compressive strength of hardened concrete in building structures. It can detect and record parameters such as rebound value, carbonization depth value angle, test surface and so on. The strength estimation results of the component can be given immediately after the detection is completed.ParametersModelGTJ-HT225SensorMOS image sensorData Acquisition TerminalInput modeAutomatically record rebound valueData processingAutomatic date vevision, calculation and analysisDisplay modeLCDSystem capacity200,000 Measuring pointsPower modeRechargeable large capacity lithium batteryWolume123*55*25mmWeight200gMechanical Rebound TesterRange of strength measurement10~60 MpaNominal kinetic energy2.207JStiffness of spring strike7.84N/cmHammer stroke75mmIndicative Consistency error＜0.5Calibrated rebound value of steel anvil80±2Volume55*55*270mmWeight1.0KGWorking environment requirementsTemperature: -10℃ ~ +40℃ Humidity： ＜90%RHPacking SpecificationMaterial: engineering plasticVolume:420*140*335mmWeight: 6KgsMain FeaturesFeatures: 1.Integrated design, small in size and easy to carry.;2. The new MOS image sensor is used to subvert the traditional signal acquisition method, and the data is accurate and reliable;3. Special color screen display, automatic recording of detection time and date;4.The parameters of angle, test surface, pumping and carbonization can be set on site;5. Voice reading function, noisy environment can also be equipped with headphones to monitor;6. Mini-printer to print test results on site (Optional);7. Ultra-low power design, continuous use of power supply for 8 to 10 hours;8. The upper computer software saves the data in Excel format, and can directly generate word report format. The later softwareprocessing is simple and convenient.ApplicationContact USCangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 10 years, Withadvanced technologies and best customer service, Our product has exported to more than 100 countries and regions, which win favorable comments from customers worldwide.We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.Our Customers and patent certificatePacking & DeliveryWhy Choose us ?get our in-time reply via email or telephone or instant messenger;get best product with excellent quality and competitive price;One year guarantee for whole machine 24 hours technical support by email or calling teach you to install and operate,always enjoy our considerable & full-side after-sales service; feel very convenient since we can help you sourcing and ship products from different factories via one shipment, which to a large extent save your time and cost; easily make the payment via West Union, Paypal, T/T for small value order;
>>
