High-Speed Shutter Door Roll Forming Machine Line

Product Description

Product Description

Shutter Door Roll Forming Machine Rolling shutter doors are widely used in commercial and industrial buildings for their durability, security, and ease of use. To manufacture these doors, a rolling shutter door forming machine is required.
We adopt export standard technical solution to make the machine strong and stable enough. Usually it can run with the normal speed to 15m/min, high speed to 25m/min, max speed to 30m/min. PLC with touch screen operation make the machine simple and easy for operation.
Product feature 1 More efficient and accurate execution of production orders;2. High equipment reliability;3. Little waste of materials and energy;4. High productivity;5. High quality materials, get a longer service life;6. All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll;7. Customized coil processing solutions to solve all aspects of technical problems. Product Parameters
Uncoiling --- Feeding --- Roll Forming --- PLC Controlling --- Hydraulic Pressing --- Length to Cutting --- Receiving

Name	Shutter Door Roll Forming Machine
Raw Material	Material	PPGI PPGL GI GL
	Width	1000/1200/1250mm
	Thickness	0.8-1.2mm, customized
Power Required	Power	380V 3Phase 50Hz, customized
	Main Motor	5.5KW, servo motor driving
	Cutting Motor	4.0KW
Roll Forming Machine	Support Frame	Square pipe welded
	Forming Station	12
	Structure	Stong and stable
	Shaft	45# high grade steel, CNC finish milling
	Roller	Cr12
	Transimission	1.2inch Chain
	Bearing	Standard
	Speed	12-18m/min
	Cutting Blade	Cr12Mov, quenched 58°-62°
	Operation	Touch button
	Dimension	6.5*1.0*1.5M
	Weight	4.5T

We also provide Safety Shield, Hydraulic decoiler, Automatic stacker for your better operation. It can save labor, save cost and can guarantee your production line more safer. Above all, it can improve your work efficiency !

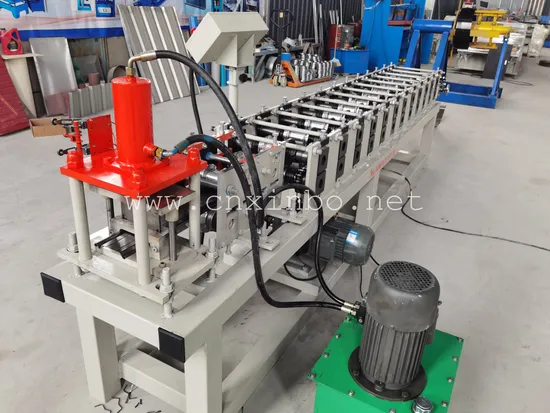

Detailed Photos
Certifications
Company Profile
Botou Xinbo Import & Export Co.,Ltd mainly produce and sell All kinds of machines and cnc machining services. roll forming machines,C Z purlin machine, deck floor machines,stud &track light keel machine, T grid machine, downpipe machine,EPS and Rockwool sandwich panel machines for the building structure and all kinds of CNC machining services.
Packaging & Shipping
Packing method:Bare covered, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
Sales term:30% deposit by T/T,70% should be balanced by T/T before delivery.
FAQ
1.How about your price?
Although we are brand name products,but our prices are very favorable and competitive.?Customer from all over the world to purchase our products, because our best price.
2.What's your payment?
Our Payment could be
(1) 100% T/T
(2) 30% in advance, others before shipment.
(3)Advance, others letter of credit.
3.Could you special design and produce for you?
Sure, we have all kinds of professional engineers,
Could design and produce special product according to customer requested.
Such as: special Size, special control, or OEM, etc.
4.Do you looking for Agent?
Yes, we're looking for the agent all over the world, please contact us for further discussion.

---
