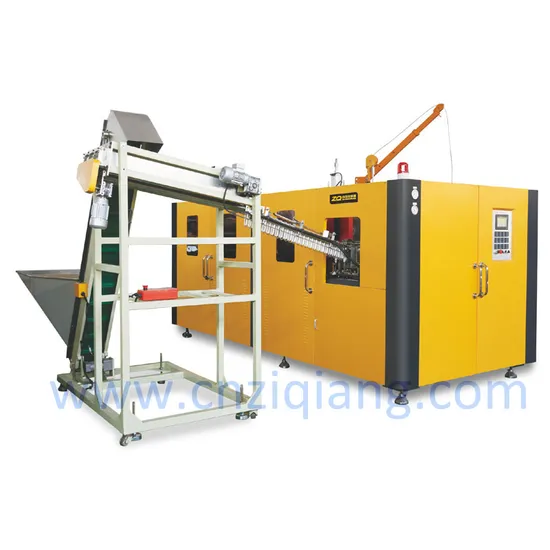

Juice Drink Bottle Blow Molding Machine (ZQ-M1500-3)

Product Description

Juice Drink Bottle Blow Molding Machine - Economic Type
By structure optimization and technicial innovation, Cost-effective ZQ-M series of blowing machines have been developed on the basis of ZQ-A series of blowing machines.
ZQ-M series of blowing machines can produce different shapes of 0.6L, 2.0L, 5L and 10L carbonated, mineral, pesticide, cosmetics, wide-mouth and other plastic PET/PP containers. They have all the advantages of ZQ-A series of blowing machines: Low rejection rate, high speed, stable running and easy operation.
ZQ-M600-4 Speed: >=4500bottles/hour.
Settings One.
A). PLC colour display: OMRON(Japan)
B). Pneumatic parts: FESTO(Germany)
C). Controller of preform transfer: Servo motor DELTA(Taiwan)
D). Other electric parts are all world-famous brand
Juice Drink Bottle Blow Molding Machine,Factory picture
Juice Drink Bottle Blow Molding Machine,equipment information.

TYPE	ITEM	ZQ-M1500-2	ZQ-M1500-3	ZQ-M5000-1	ZQ-M5000-2
CONTAINER	Number of cavity	2	3	1	2
	Output	1600-1800 pcs/hr	2300-2600 pcs/hr	600-700 pcs/hr	1200-1400 pcs/hr
	Max. container volume	2.0L	2.0L	5L	5L
	Max. neck diameter	38mm	38mm	100mm	100mm
	Max. container diameter	105mm	105mm	180mm	180mm
	Max. container height	350mm	350mm	350mm	350mm
ELECTRICAL SYSTEM	Number of lamp	28pcs	40pcs	28pcs	48pcs
	Max. heating power	42kw	60kw	42kw	60kw
	Installation power	44kw	65kw	44kw	63kw
	Actual power consumption	28kw	40kw	30kw	40kw
AIR SYSTEM	Operatating pressure	7kg/cm²	7kg/cm²	7kg/cm²	7kg/cm²
	Low pressure consuming	1200 Ltr/min	1600 Ltr/min	1200 Ltr/min	1600 Ltr/min
	Blowing pressure	≤ 30kg/cm²	≤ 30kg/cm²	≤ 30kg/cm²	≤ 30kg/cm²
	High pressure consuming	2000-2500Ltr/min	2800-3000Ltr/min	2000-2500Ltr/min	3000-3500Ltr/min
CHILLER WATER	Operating pressure	5-6 kg/cm²	5-6 kg/cm²	5-6 kg/cm²	5-6 kg/cm²
	Temperatuer	10° C	10° C	10° C	10° C
	Consuming	5600kcal/hr	7600kcal/hr	5600kcal/hr	5600kcal/hr
	Flow rater	30Ltr/min	40Ltr/min	30Ltr/min	30Ltr/min
MACHINE	Machine dimension	3.1× 1.45× 1.85(m)	4.20× 1.60× 1.9(m)	3.3× 1.75× 1.9(m)	4.35× 2.0× 1.9(m)
	Machine weight	2.0T	2.5T	2.2T	3.2T

Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.

---
