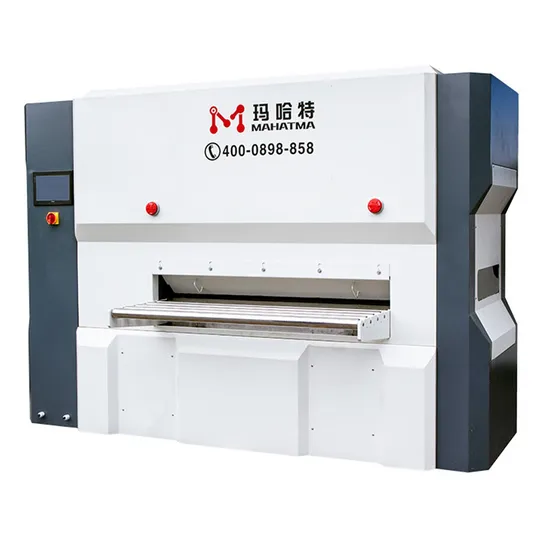

Copper Aluminum Metal Accessories Sheet Laser Cutting Aluminum Plate Parts Metal Leveling Flattening Straightening Machine

Product Description

Product Description

Model	MHTM40-400-21	MHTM40-800-21	MHTM40-1300-21	MHTM40-1600-21	MHTM40-2100-21
Width	0-400mm	0-800mm	0-1300mm	0-1600mm	0-2100mm
Roll diameter	40	40	40	40	40
Rated thickness	0.6-3.0mm	0.6-3.0mm	0.6-3.0mm	0.6-3.0mm	0.6-3.0mm
Maximum thickness	6.0	6.0	6.0	6.0	6.0
Number of rolls	21	21	21	21	21
Shortest part	70	70	70	70	70
Leveling speed	0-10m/Min	0-10m/Min	0-10m/Min	0-10m/Min	0-10m/Min
Voltage	3-phase 380v	3-phase 380v	3-phase 380v	3-phase 380v	3-phase 380v
Optional	1.Loading and unloading and reclaiming munipulators 2.Loading and unloading joint robots 3.Automat detection platform 4.inlet and outflow assembly line

Model details

Leveling Series	Model	Roller Diameter(mm)	Thickness (mm)	Width(mm)	Roller qty(Standard)	Shortest part(mm)
MHTP High-end CNC Precision Leveling Machine	MHTW10	10	0.03-0.6	100-300	31	20
	MHTW15	15	0.08-1.0	100-600	31	30
	MHTW20	20	0.3-1.2	200-1600	23	40
	MHTW30	30	0.5-2.0	400-3000	23	60
	MHTW40	40	0.6-3.0	400-3000	21	70
	MHTW50	50	0.8-4.0	400-3000	21	90
	MHTW60	60	1.0-6.0	400-3000	21	100
	MHTW80	80	2.0-8.0	400-3000	19	130
	MHTW100	100	3.0-12.0	400-3000	19	160
	MHTW120	120	4.0-16.0	400-3000	19	190
	MHTW150	150	6.0-25.0	600-3000	19	240
	MHTW200	200	8.0-30.0	800-3000	15/19	310
	MHTW250	250	10.0-40.0	1000-3500	15/19	390
	MHTW300	300	12.0-50.0	1000-4000	15/19	480
MHTY Hydralic High precision Leveling Machine	MHTR30	30	0.5-3.0	400-3000	23	60
	MHTR40	40	00.6-4.0	400-3000	23	70
	MHTR50	50	0.8-5.0	400-3000	23	90
	MHTR60	60	1.0-8.0	400-3000	21	100
	MHTR80	80	2.0-10.0	400-3000	15/19	130
	MHTR100	100	3.0-12.0	400-3000	15/19	160
	MHTR120	120	4.0-20.0	400-3000	15/19	190
	MHTR150	150	6.0-30.0	600-3000	15/19	240
	MHTR200	200	8.0-40.0	800-3500	15/19	310
	MHTR250	250	10.0-50.0	1000-3500	15/19	390
	MHTR300	300	12.0-60.0	1000-4000	15/19	480
Normal MHT CNC High precision Leveling Machine	MHTM10	10	0.03-0.6	100-300	31	20
	MHTM15	15	0.08-1.0	100-600	31	30
	MHTM20	20	0.3-1.2	200-1600	23	40
	MHTM30	30	0.5-2.0	400-3000	23	60
	MHTM40	40	0.6-3.0	400-3000	21	70
	MHTM50	50	0.8-4.0	400-3000	19	90
	MHTM60	60	1.0-6.0	400-3000	21	100
	MHTM80	80	2.0-8.0	400-3000	19	130
	MHTM100	100	3.0-12.0	400-3000	19	160
	MHTM120	120	4.0-16.0	400-3000	19	190
	MHTM150	150	6.0-25.0	600-3000	19	240
	MHTM200	200	8.0-30.0	800-3000	15/19	310
	MHTM250	250	10.0-40.0	1000-3500	15/19	390
	MHTM300	300	12.0-50.0	1000-4000	15/19	480
Four-fold type Leveling Machine	VSHS10	10	0.03-0.5	100-200	19	20
	VSH15	15	0.08-1.0	200-400	19	30
	VSH20	20	0.2-1.5	400-800	19	40
	VSH32	32	0.5-2.0	400-800	19	60
	VSH42	42	0.4-3.0	400-1300	19	70
	VSH50	50	0.8-3.5	400-1600	15/19	90
	VSH60	60	1.0-6.0	400-1600	15	100
	VSH80	80	2.0-8.0	400-2100	15	130
Two-fold Leveling Machine	VST42	42	0.4-3.0	200-600	19	70
	VST70	70	0.8-6.0	200-1600	13	120
	VST90	90	3.0-8.0	400-1600	13	150
	VST120	120	4.0-12.0	400-2600	13	190
	VST150	150	6.0-18.0	450-3000	13	240
	VST200	200	8.0-25.0	800-3000	13	310

Why choose us?
Why should we Level it?

Drawings
CNC leveling machine equipment function
CNC Leveling machine function
Compared with other leveling methods, the machine's control system has the functions of storing, recalling, and editing process and equipment parameters, and has the function of identifying and early warning of misoperation. When in use, on the
console, the inlet and outlet reductions can be set according to parameters such as plate thickness, plate width, or the existing parameters in the database, so as to realize the electric adjustment of the work roll out and the entry gap, and it can be manually
adjusted and corrected.

Control system; this machine adopts Japanese Panasonic PLC controller, and the operation speed is controlled by Delta inverter. All the machine actions are controlled by the operation console. The touch-sensitive man-machine interface display screen
and the operation panel are simple and easy to understand. Emergency switches are installed at the four conspicuous positions of the exit to ensure safe operation! It is also equipped with a digital display to display the displacement amount, which is very
simple and rapid to operate. It only takes a few seconds to level high-precision and complex hardware that usually takes a long time to level by hand.
CNC leveler is the first choice for leveling equipment in vehicle manufacturing, locomotive manufacturing, construction industry, medical technology industry, chassis manufacturing, textile machinery, sheet metal processing, etc. Play a vital
role in the verticality, parallelism, appearance and accuracy of industrial structural parts!

Under the condition of large elastoplastic bending, no matter how different the original degree of bending is, the CNC precision leveler uses the "Bauschinger effect" of the material to bend the plate many times, gradually reducing the bending
deflection, so that The multiple original curvatures gradually become a single curvature, and they are finally leveled to achieve the leveling accuracy required by the process.

CNC leveling machines have been widely used in industry. They have the characteristics of advanced technology, high leveling accuracy, wide process range, high degree of automation, reliable and stable work under high strength, etc. During the roll leveling process, the metal plate passes through a series of Alternate bending, the precise control of the pressing amount of each leveling drum through the motor and PLC control, eliminates the internal stress, and fundamentally solves the unsatisfactory leveling effect caused by the different stresses in each part of the sheet. So as to achieve high-precision leveling.

Application

Company Profile
MAHATMA Brand-a high-end automation brand operated by Guangdong (Jiangxi) Dayongsheng Technology Co., Ltd. -- A high-tech enterprise dedicated to R&D, production and sales of high-precision leveling machines and supporting peripheral equipment. Introduce precision leveling/straightening equipment technology from Germany and Switzerland, and cooperate with a number of
universities and research institutes in production, learning, and research, continuously carry out technological innovation and production improvement, and combine the needs of many metal precision parts manufacturing enterprises to adopt innovation Design ideas, advanced manufacturing technology, R&D and production: servo CNC high-precision leveling machine, hydraulic high-precision leveling machine, four (six) heavy-duty leveling machine, automatic loading and unloading manipulator, robot, laser leveling detector, High-precision uncoiling, leveling, stamping and shearing.

---
