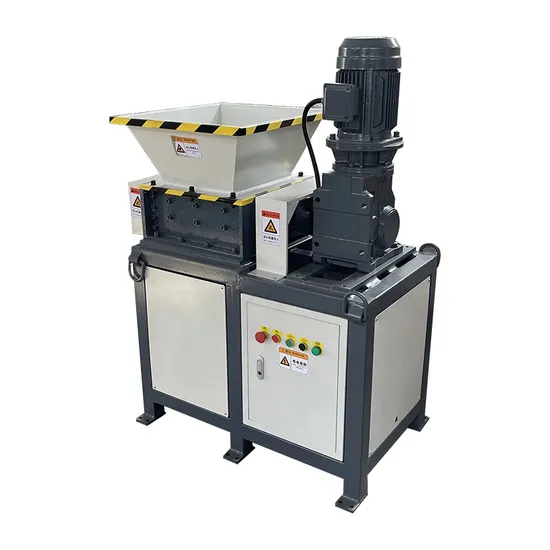

High Performance Small Shredder Machine for Shredding Pipe Fittings

Product Description

Product Description
Industrial Shredders are used in a wide range of applications in recycling and waste disposal industry in reduce size or volume in large batches by shearing, tearing or crushing. It is divided into single-shaft shredders, double-shaft shredders and four-shaft shredders. Double-shaft shredder meets most material disposal requirements thanks to its high shredding ratios, consistent work efficiency and low failure rates.
Our industrial shredders have an extremely wide range of applications and are capable of processing municipal waste, bulky waste, industrial hazardous waste, waste tyres, non-ferrous metals, electronic waste, plastics, cardboard and all other solid wastes. Combined with advanced intelligent control systems, we helps customers to increase project automation and availability, reduce operating costs and system risks to achieve long-term development plans.
Product Parameters

Model	Blade Size(mm)	Quantity(pcs)	Power(kw)	Reducer	Speed(r/min)	dimension(mm)
300	Φ180*10	29	3	JK77	16	850*500*1300
400	Φ200*15	40	5.5	JK87	17	1120*600*1480
500	Φ200*20	24	7.5	JK97	15	1200*600*1550
600	Φ200*20	30	11	JK107	15	1550*660*1800
600	Φ250*20	30	15*2	ZQ400*2	18-25	2800*1400*1900
800	Φ350*25	32	22*2	ZQ650*2	18-25	3700*1540*2200
1000	Φ400*30	33	30*2	ZQ650*2	18-25	3860*1550*2350
1000	Φ400*40	25	37*2	ZSY315	18-25	4000*1600*2350
1200	Φ400*40	30	45*2	ZSY355	18-25	4600*1900*2450
1200	Φ400*20	24	55*2	ZSY400	18-25	4600*1900*2450
1400	Φ550*60	23	75*2	ZSY450	18-25	5300*2200*2600
1600	Φ600*60	26	90*2	ZSY500	18-30	5800*2300*2800
1800	Φ700*60	30	110*2	ZSY560	18-30	6000*2500*3100

Production process
Company Profile
ACLMEC is one of the largest professional knife and machine manufactory in China. It's located in Bowang District where is very near to Nanjing LuKou airport and Nanjing South railway station. As a most popular knife and machine OEM supplier for European market, ACLMEC provides professional services of customization, applications and innovation by combining over 20 years production experience and service after sale globally. With manufacturing and sales throughout America, Europe, India, Africa, ACL offers an unrivaled presence worldwide. We are there where you need us, when you need us, anywhere in the world.We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Certifications
Exhibition

---
