Semi-Auto Double Spiral Binding Machine Double Wire Binding Machine

Product Description

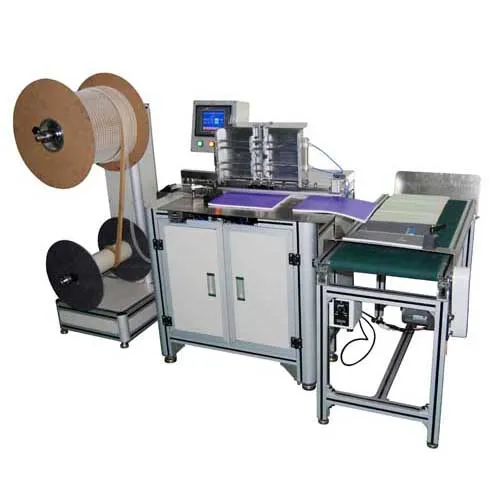

DWB520 semi automatic double wire binding machine
Specifications:
1. Working speed up to 1200 ~1800 books per hour
2. Binding diameters can be 1/4"- 9/16", pitch can be 3:1 or 2:1
3. Skip-binding at one time is available, up to 5 skips binding once
4. Touch screen and automatic error reminder
5 Automatic hanger binding device, automatic books convey device
6. New slide-type pneumatic components extend the machine life and ensure the machine stability

Parameters:

DWB-520 Specifications
Feeding Model	manual delivery
Wire spec	auto cut, bind
Max. Paper Width	520 mm
Max. Binding Width	507mm
Min. Paper length	75mm
Working Speed	1,200-1800 t/hour
Size of Worktable(W*D)	600*300mm
Air Compressor(not include)	1.5 KW
Air Pressure	6-8 ba
Main Machine Dimensions	1,000*760*1,230 mm
Net Weight	400 KG
Dimensions of pay-off unit	490*760*1230mm
Net weight	500 KG

Our company is a global business enterprise engaged in the manufacture, marketing, research and development of machinery. Our company also provides import and export operations and technical training.
We are a professional company which manufactures and sells printing machines and office equipment. Our high quality products and perfect service have enjoyed a high reputation in the industry. Moreover, they sell well all over the world.
Our products include all kinds of offset machines, cutting machines, binding machines, bill printing machines, digital stencil duplicator machines, digital print machines, spray printing machines, print finishing machines and other kinds of printing, packing, advertisement and office equipment.
We sincerely hope to establish business relationships and cooperate with you.
