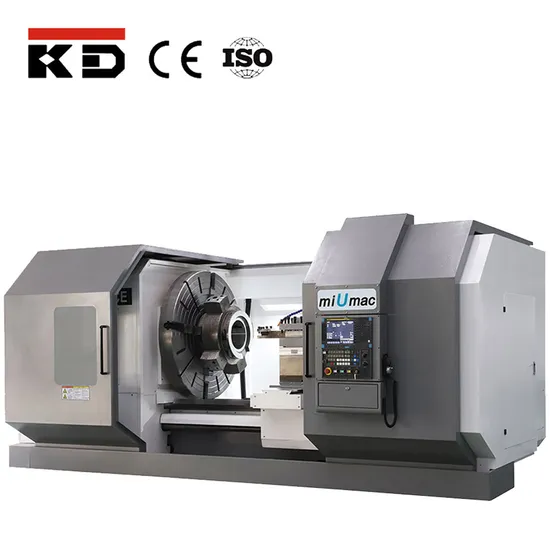

High Precision Big Bore CNC Lathe Machine Ck61100CE/1500 Series

US$80,000.00-150,000.00 1 SET (MOQ)

Basic Info.

Model NO.
CK61100CE/1500
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Spindle Bore
130mm
Spindle Nose
A2-15
Main Motor
22kw
Max. Swing Over Bed
1000mm
Max. Turned Length
1.5m
Tool Post Stations
4-Stations
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458190000
Production Capacity
180 Sets/ Year

Product Description

FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
MODELS
CK61100CE
 CK61125CE
 CK61140CE
CAPACITY



Max. swing over bed
Ф1000 mm
 Ф1250 mm
 Ф1400 mm
Max. swing over carriage
Ф620 mm
 Ф815 mm
 Ф990 mm
Width of bed
755 mm
Max. length of workpiece
1.5/ 2/ 3/ 4/ 5/ 6/ 8/ 10 m
Max. turning length
1.3/ 1.8/ 2.8/ 3.8/ 4.8/ 5.8/ 7.8/ 9.8 m
Max. weight between centers
5000 kg
SPINDLE



Spindle nose
A2-15
Spindle bore
Ф130 mm
Spindle tapper
Metric Ф140 1:20
Steps of spindle speed(manual)
2 steps (manual)
Range of spindle speed
2.5~34, 20~270 rpm
FEED



Rapid feed for axis Z
8 m/min
Rapid feed for axis X
5 m/min
TRAVEL



Max travel of Z axis
1.55/2.05/3.05/4.05/5.05/6.05/8.05/10.05 m
Max travel of X axis
580 mm
 685 mm
 820 mm
TOOL POST



Tool post stations
4
Tool cross section
40×40 mm
 50×50 mm
TAILSTOCK



Tailstock sleeve outer dia.
Ф160 mm
Tailstock sleeve taper bore
Metric Ф80
Tailstock sleeve travel
300 mm
OTHERS



Mi. Input
0.001 mm
Main motor power
22 kW
Coolant pump power
370 w
Chuck diameter
Ф1000mm (4-jaw chuck)
 Ф1250mm (4-jaw chuck)
