Double Shaft Paddle Mixer Machine for Gypsum Powder

Product Description

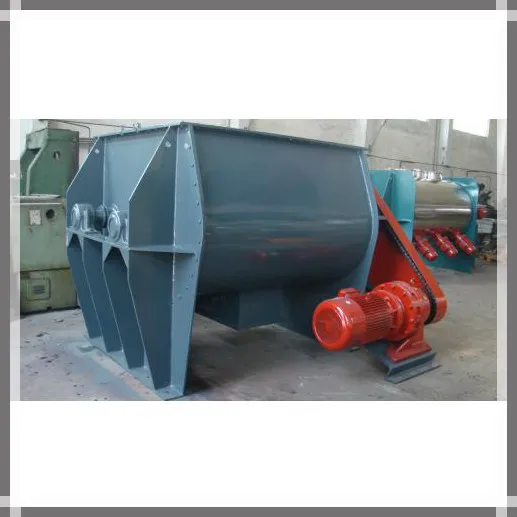

Double shaft Paddle Mixer machine for Gypsum Powder
Questions for Buyer:
Please answer below questions and send answers to email, and then we will send you offer as soon as possible.

1, What materials do you mix? (Names of raw materials?) 2, What is the power fineness (or particle size)? (mesh, mm) 3, What is the bulk density (or specific gravity) of mixed materials? (kg/liter, kg/m3) 4, How many kgs or liters to be mixed per batch? 5, What is the distance from bottom discharge outlet to ground? (cm, mm, m) 6, What construction materials do you require? (Please choose below option) A, all construction materials mild steel; B, contact parts stainless steel, non-contact parts mild steel; C, all construction materials stainless steel;

1 Working principle:
CMPP series horizontal double shaft paddle mixer consist of W-shaped tank, top cover with/without openings, reverse rotation double shaft equipped with paddles, transmission unit, support frame, sealing element, discharge structure and so on. For the reason that double shaft rotate at reverse direction and specific angled paddles make materials get blended in the axial and radial, materials get homogeneously mixed. Materials form fluidized bed during its own up-throwing movement and produce instant weightlessness, so this series of mixer is also called weightlessness mixer.

2 Performance & features:
2.01 Material: stainless steel 304 / 316L or mild steel Q235;
2.02 Surface treatment: paint (mild steel), polish/sandblasting (stainless steel);
2.03 Paddle agitator: of certain angle;
2.04 Mixer tank: horizontal, W-shaped tank;
2.05 Shaft: horizontal, hollow, integral twin shaft;
2.06 Mixing time: 5-20 minutes;
2.07 Working model: batch mixing;
2.08 Speed reducer: cycloid reducer;
2.09 Rotation speed: fixed speed;
2.10 Main shaft seal: (Teflon) stuffing seal or air purge seal;
2.11 Openings: feeding inlet, manhole, and inspection door & connection port;
2.12 Discharge valve: pneumatic or manual/ flap or cylindrical discharge valve;
2.13 Working condition: NPT (normal pressure and temperature);
2.14 Not heavy duty: mixer can not be started with loading materials;
2.15 Power supply: 220V 50HZ single phase/ 380V 50HZ 3 phase;
2.16 Non ex-proof electronics (motor, electronic elements, control cabinet);

3 Optional features:
The following optional features are available: wear-resistant and anti-corrosion materials, surface treatment; continuous mixing; changeable speed; mechanical seal; customized openings and discharge valves; temperature control; pressure requirement; heavy-duty configuration; motors, electronic elements, electronic control panel are customized to different power and ex-proof requirements; light glass; sampling device; liquid spraying device; scrappers etc.
4 Technical specifications:

Mixer model	Working volume (L)	Rotation speed (rpm)	Motor power (kw)	Overall dimension (mm)	Machine weight (kg)
CMPP-50	20-30	60	2.2	800×900×850	200
CMPP-100	40-60	60	3	950×1100×900	300
CMPP-300	120-180	60	4	1100×1300×1050	690
CMPP-500	200-300	60	7.5	1400×1600×1200	950
CMPP-1000	400-600	40	11	1700×1850×1550	1600
CMPP-2000	800-1200	40	15	2100×2650×1900	2400
CMPP-3000	1200-1800	40	18.5	2350×2800×2000	3100
CMP-4000	1600-2400	40	22	2500×2900×2200	4000
CMPP-5000	2000-3000	40	30	2700×3000×2300	4500
CMPP-6000	2400-3600	35	37	2900×3050×2450	5000
CMPP-8000	3200-4800	35	45	2800×3500×2600	6100
CMPP-10000	4000-6000	30	55	3000×3700×2700	8000
CMPP-15000	6000-9000	30	75	3100×4300×2900	9500
CMPP-20000	8000-12000	20	90	3500×4600×3200	13000

5 Mixers Album:
6 Application Industry:
7 Factory Album:

---
