PE/PP/PA/PA66/ABS/PS/EPS/HDPE/LDPE Film Bag Fiber Fishing Net Nylon Fabric Granules Making Water Ring Die Face Noodle Strand Plastic Pelletizing Production Line

Product Description

PE PP PA PA66 ABS PS EPS HDPE LDPE Film Bag Fiber Fishing Net Nylon Fabric Granules Making Water Ring Die Face Noodle Strand Plastic Pelletizing Production Line
Product Description

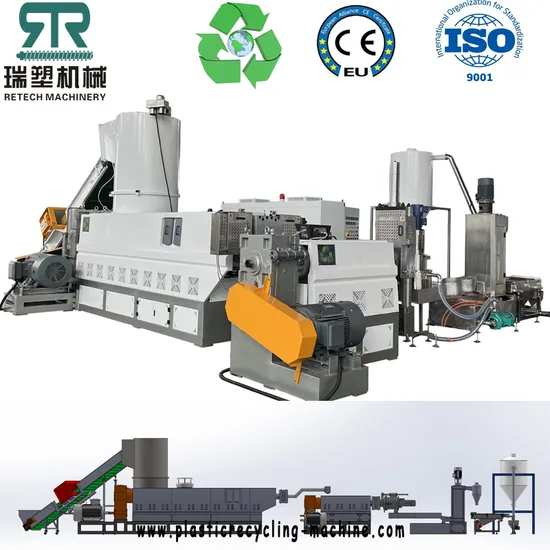

Plastic BOPP/BOPET PP PE Lamination Packaging Film Recycling Granulating Line:
Our Plastic film pelletizing machine is used to process PP film, BOPP printing film, packaging film, PP woven bag, PP jumbo bag, PP raffia bag, PP ton bags, etc.

Machine Model	RCDJ
Brand	RETECH
Applicable material	LDPE, LLDPE, HDPE, PP, BOPP, CPP, EPS, PS, ABS, PA, PLA
Capacity	200-1200KG/H
Screw diameter	85-180MM
Screw design	Single Screw
L/D ratio	33
Screw rpm	90-180
Screw material	38CrMoAl
Gearbox type	High torque vertical
Motor brand	WEG/SIEMENS
Degassing zone	2
Pelletizer type	Water ring pelletizer
Total power	159-674KW
Delivery time	2-4 months ready for inspection
Guarantee	1 year
Certificate	CE

Detailed Photos
Belt Conveyor With Metal Detector
Function: As standard design, plastic scraps such as film, filament, raffias conveyed into the compacting
room through belt conveyor; to handle rolls' scraps, roll hauling off device is an optional
feeding method.
Motor drives of conveyor belt and hauling device cooperate with
ABB inverter. Feeding speed of conveyor belt or roll hauling off is fully automatic
based on how full the compactor's room is. Metal detector can be combined with belt
conveyor, and can interlock with control system, to warn and stop the system, in case that
metal is found in feeding section.
Compactor
Function: The rotatory blades of compactor will cut up incoming scraps. Frictional heating which
caused by high speed rotatory blades will heat and let scraps shrinking just below their
agglomerating point. Optimal designed guide structure compacts the material and directs
it into extruder screw. Crushes, dries and compacts the material which enables a fast
and stable feeding from the compactor directly into the extruder.

Main Extruder of RCSJ130
Function: A specialized single screw extruder applied to gently melt the pre-compacted material.
The plastic scraps will be well melted, plasticized in the first stage extruder, and the
plastic will be extrude by the second stage extruder.
With double-zone vacuum
degassing system, volatiles such as low molecular and moisture will be removed
efficiency, especially suitable to heavy printed film and material with some water content.

Die Face Cutting System
Typical features:
Ø Newest design, adopts the European advanced technology.
Ø Cutting blades' speed automatically adjust to present uniform final granules.
Ø Pneumatic device to control the blades well touching on the die section,
automatically adjustment, to guarantee blades system cutting stably.
One key booting system, which make the whole system running conveniently;
PLC online controlling system
>>PLC & Touch screen controller to control the whole system automaticlly .
>>One button " start" to start whole system as per
processing technic.
>>One button " stop" to stop machine with proper sequence.
>>Brand:Siemens brand.
Electrical control cabinet
>>All electrical units mounted in a strong safe electrical cabinet; >>Safety interlock principle applied in the system;
>>Inverter:ABB/FUJI/DELTA;
>>Adopt CE safety electrical components;
>>Solid state relay is optional for heating control.
Features
1.High efficiency:
Compared with the primary design,the output of RETECH second generation film pelletizing machine has been increased 20%.
2.Low power consumption:
The power consumption reduced 15% compared with the primary film pelletizing design.
3.Highly automatically:
Only 2 people for one film granulating line.
Product Parameters

Model	Screw Diameter	L/D	PE(Output)	PP(Output)
RCDJ85/100	85mm/100mm	33:1	160-220kg/h	120-200kg/h
RCDJ100/120	100mm/120mm	33:1	260-380kg/h	220-280kg/h
RCDJ130/150	130mm/150mm	33:1	450-550kg/h	380-450kg/h
RCDJ160/180	160mm/180mm	30:1	650-800kg/h	500-600kg/h
RCDJ180/200	180mm/200mm	28:1	800-1000kg/h	600-800kg/h

Certifications
Packaging & Shipping
Company Profile
RETECH is a manufacturer of PLASTIC GRANULATOR MACHINE and PLASTIC WASHING LINE with strong technical force.
With a simple operation, good quality, reasonable prices and experienced designs, our plastic recycling machine are extensively used in the field of waste plastic recycling field.
15+years experience in plastic recycling machinery field.Focusing on produce the plastic recycling machine and plastic pelletizing line and plastic washing line.Such as plastic bottle recycling machine,PP raffia recycling machine,plastic film recycling machine,chemical fiber/nylon fiber pelletizing machine,PP PE film granulator plastic recycling machine plant,PET bottle flakes pelletizing line,Crusher,Shredder,Agglomerator and so on.
Our machines are specialized in processing PP PE HDPE LDPE BOPP PET PA PVC ABS PS EVA and so on.
We are waiting for your further concerns.
