Product Description
Product Description
USE: It is mainly suitable for slitting all kinds of thermal paper, TTR, fax paper, cash register, computer bill, medical record paper, pos printing paper, ATM reel paper, film and self adhesive paper e...

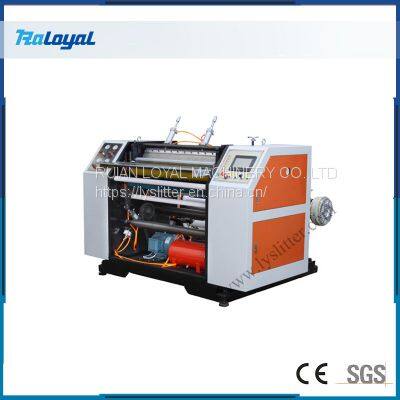

Features of HC-T700/900/1100 Thermal Paper Slitting Rewinding Machine
USE
It is mainly suitable for slitting all kinds of thermal paper, TTR, fax paper, cash register, computer bill, medical record paper, pos printing paper, ATM reel paper, film and self adhesive paper etc.
Characteristic
● Equipped with Panasonic PLC and Weinview touch screen, all the parameter are displayed on the monitor. You only need to setup the material roll diameter and thickness, the PLC will give a proper parameters for machine running automatically.
● Equipped with Auto Tension Control System for unwinding tension.
● With meter counter. Got to the setup data, the machine stops and alarms.
● It adopts Synchronic Belt to avoid the over lap problem.
● It adopts frequency inverter for main inverter motor driving, the speed can be displayed on the operation panel. Frequency inverter motor: 2.2Kw.
● All transmission rollers have been dynamic/static balance treated.
● Equipped with emergency switch.
Specifiction HC-T700/900/1100 Thermal Paper Slitting Rewinding Machine
Model model
| HC-T700A
| HC-T900A
| HC-T1100A
|
Max. parent web width
| 660mm
| 860mm
| 1060mm
|
Max. parent web dia.
| 1000mm
|
Max. rewinding dia.
| 150mm
|
Machine speed
| 150m/min
|
Slitting precision
| ±0.2mm
|
Unwinding shaft
| 3” pneumatic air expanding shaft
|
Rewinding shaft
| Coreless 8mm, 1/2 inch, 1inch steel shaft
|
Slitting precision
| ±0.2mm
|
Voltage
| 3 phase 380v 50hz
|
Air supply
| 0.6Mpa, 0.3m^3/min
|
Ruian Loyal Machinery Co, Ltd., is located in Wenzhou, is one of the most professional enterprises of manufacturer and developer in the field of slitting machine, printing machine, sheeting machine and mask machine. We provide Slitter Rewinder Machine, High Speed Slitting Machine, slitter rewinding machine, Raloyal slitting & rewinding machine and so on. Want to know more? Please contact us.
>>
