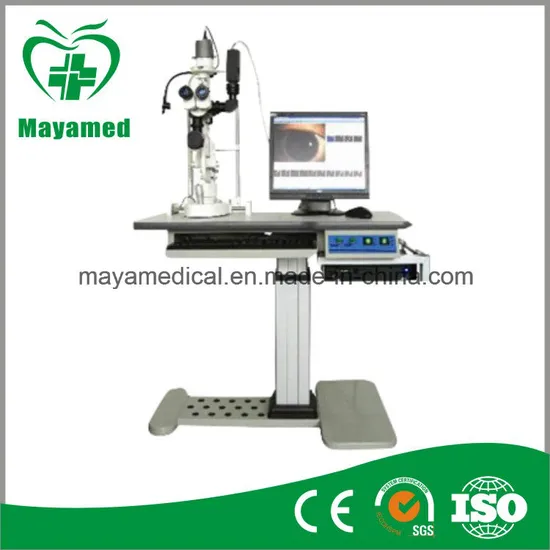

My-V009 Tower Style Slit Lamp with 5 Magnification

Product Description

My-V009 Tower Style Slit Lamp with 5 Magnification
MY-V009 tower style slit lamp with 5 magnification
Accessories
1)BacLite Background Illumination Model
2)Digital Camera Adaptor
3)Beam Splitter
4)MediView Image Process Software
5)Foot-controlled shooting model
6)CMOS

Specification:
1.The Galilean type microscope system adopts revolving drum,the highest magnification is 5 steps. (Professional type)
2.The excellent optical system can give you a clear and clean image.
3.The 14mm aperture can help you observe the whole cornea and iris easily, and it is convenient to examine the foreign object.
4.The German imported 6V20W Osram halogen lamp can fully make use of every beam. It can make sure that you get the clean and clear image effect with the minimum illumination, at the same time can protect the patients eye.
5.The high eyepoint and open field eyepieces design can guarantee the clear image even when you wear glasses.
6.The modular design can reserve the adapters, this is convenient to connect beam splitter, digital camera adapter and the CCD adapter, thus can upgrade to the digital camera system or the image capture system.
7.The adapter function is good, digital single lens reflex camera and the digital vidicon are compatible.
Microscope
Type	Galilean-Type
Magnification change	Revolving Drum
Total magnification Ratio	6x,10x, 16x, 25x,40x
	professional configuration
Eyepieces	12.5x
Angle between eyepieces	13 degree
Pupillary adjustment	55mm~78mm
Diopter adjustment	±6D
Field of view	40x (¢5.5mm), 25x (¢8.5mm),16x (¢13.5mm), 10x (¢22mm), 6x (¢34.7mm)
Slit Illumination:
Slit width	Continuously variable from 0 to 14mm
	at 14mm,slit becomes a circle
Slit length	Continuously variable from 1mm to 14mm
Lamp	6V/20W Halogen Lamp
Slit angle	0~180 degree(continuously adjustable both vertical and horizontal)
Slit inclination	4 step 5 degree,10 degree,15 degree,20 degree
Filters	Thermal safety,UV,Red-free,Cobalt Blue
Aperture diameters	¢14mm,¢10mm,¢5mm,¢3mm,¢2mm,¢1mm,¢0.2mm
Base
Longitudinal movement	90mm
Lateral movement	100mm
Vertical movement	30mm
Chin-Rest
Vertical movement	80mm
Fixation	Green LED
Power:
Input voltage	220V/110V~±10
Input frequency	50Hz/60Hz
Power consumption	30VAmax
Output voltage	Lamp 6V (continuously adjustable),Fixation 3V
Dimension & Weight:
Dimension	740mm x 450mm x 500mm
Gross weight	25Kg
Net weight	24kg
Working environment:
Temperature	+5~+40
Relative humidity	≤80%
Air pressure	800hpa~1060hpa
Storing environment:
Temperature	-40~+55
Relative humidity	≤93%
Air pressure	700hpa~1060hpa
Transporting environment:
Temperature	-40~+55
Relative humidity	≤93%
Air pressure	700hpa~1060hpa

Our Services
1.For all your inquires about us, we will reply you in detail within 24 hours.
2.We own professional team with professional attitude to recommend products and
services for you.
3.The products have one year free warranty, after which they can still be
provided after-sales service.
4. We offer OEM services. And we can print your own logo on the product.
5. We have well-experienced engineers, who can help you better use our products.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope
we can offer you more help in medical field and build the long term business
relationship with you.
FAQ
Q: How to buy your products ?
A: We have some products in stock , you can take away the products after you
arrange the payment ; If we don't have the products in stock you want, we will
start production once getting the payment.

Q: What's the warranty for the products ?
A: The free warranty is one year from the date of commissioning qualified.

Q: Can we visit your factory ?
A: Of course, welcome to visit our factory if you come to China.

Q: How long is the validity of quotation ?
A: Generally, our price is valid within one month from the date of quotation. The
price will be adjusted appropriately as the price fluctuation of raw material in
the market.

Q: What's the production date after we confirm the order ?
A: This depends on the quantity. Normally, for the mass production, we need about
one week to finish the production.
Packaging & Shipping
Packaging:Standard export corrugated paper board cartons or wooden box
Pallet: Plastic/ Wooden pallet
Shipping:By sea/ By air/ By courier (DHL, FEDEX, UPS, TNT)

---
