US$0.38-34.00
|
1,000 Meters
(MOQ)
|
Basic Info.
Type
Thermosetting Plastic Pipe
Usage
Drainpipe, Water Supply Pipe, Agricultural Irrigation Pipe, Corrugated Pipe
Product Name
PVC Suction Hose
Construction
High Quality PVC with Rigid PVC Helix
Length
12/30/50m or as Your Requirement
Application
Widely Used in Civil and Building Works ,Agricultu
Surface
Smooth/Corrugated Surface
Certification
ISO9001-2008 CE
Transport Package
Shrink Wrap, Color Insert and Carton or as Custom
Production Capacity
500000 Meters Per Month
Packaging & Delivery
Package Size
1.00cm * 1.00cm * 1.00cm
Package Gross Weight
1.000kg
Product Description
| Type1 | General Purpose Smooth Suction Hose |
| Type2 | General Purpose Corrugated Suction Hose |

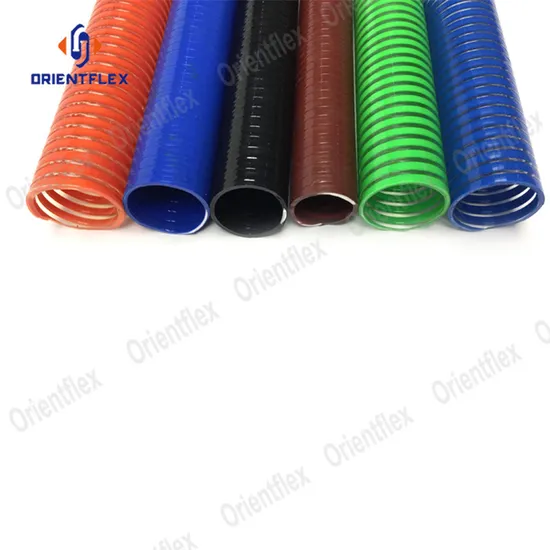

Product Description Construction:
Construction: High quality pvc with rigid pvc helix
Application:
PVC suction hose is designed for regular water supply and drainage, and for transporting various powdery particles and liquids, it is widely used in civil and building works ,agriculture,mining, construction,ship and fishery
Characteristic:
1. Economical & flexible
2. Abrasion & chemical resistant
3. Impact & crush resistant
4. Excellent bending radius
5. Constructed with rigid spiral helix reinforcement
6. Smooth inner construction for unrestricted flow of materials
7. Economical, flexible & lightweight for easy transport
Temperature: -10ºC(-50ºF) to 65ºC(+150ºF)
| GENERAL PURPOSE PVC SUCTION HOSE |
| HEAVY DUTY |
| Item code | I.D | OD | Thickness | W.P(at20˚C) | Vacuum Rat. | Bend Radius | Length | Dimension | Volume |
| inch | mm | mm | mm | bar | psi | mmHg(68˚F) | mm | m | D*H(cm) | m3/roll |
| PSHH019 | 3/4 | 19.0±0.5 | 25.0±0.5 | 3.0 | 5.0 | 75 | 750 | 70 | 50 | 60x20 | 0.072 |
| PSHH025 | 1 | 25.4±0.5 | 31.4±0.5 | 3.0 | 5.0 | 75 | 750 | 70 | 50 | 60x25 | 0.090 |
| PSHH032 | 1 1/4 | 31.7±0.5 | 37.7±0.5 | 3.0 | 5.0 | 75 | 750 | 90 | 50 | 70x30 | 0.147 |
| PSHH038 | 1 1/2 | 38.1±0.5 | 45.1±0.5 | 3.5 | 5.0 | 75 | 750 | 110 | 50 | 80x30 | 0.192 |
| PSHH050 | 2 | 50.8±1.0 | 58.8±1.0 | 4.0 | 5.0 | 75 | 750 | 150 | 50 | 100x25 | 0.250 |
| PSHH065 | 2 1/2 | 63.5±1.0 | 72.5±1.0 | 4.5 | 4.0 | 60 | 750 | 180 | 50 | 115x35 | 0.463 |
| PSHH075 | 3 | 76.2±1.0 | 86.2±1.0 | 5.0 | 4.0 | 60 | 750 | 220 | 50 | 135x40 | 0.730 |
| PSHH100 | 4 | 101.6±1.5 | 103.6±1.5 | 6.0 | 4.0 | 60 | 750 | 330 | 50 | 200x35 | 1.400 |
| PSHH125 | 5 | 127.0±1.5 | 141.0±1.5 | 7.0 | 3.0 | 45 | 750 | 500 | 50 | 230x42 | 2.220 |
| PSHH152 | 6 | 152.4±1.5 | 168.4±1.5 | 8.0 | 3.0 | 45 | 750 | 700 | 30 | 230x35 | 1.850 |
| PSHH200 | 8 | 203.2±1.5 | 225.2±1.5 | 11.0 | 2.5 | 38 | 750 | 1100 | 12 | 1200x230 | 0.640 |
| PSHH250 | 10 | 254.0±1.5 | 278.0±1.5 | 12.0 | 2.5 | 38 | 750 | 1400 | 12 | 1200x280 | 0.941 |
| PSHH300 | 12 | 304.8±1.5 | 328.8±1.5 | 12.0 | 2.5 | 38 | 750 | 1800 | 12 | 1200x330 | 1.310 |
| PSHH350 | 14 | 355.6±1.5 | 379.6±1.5 | 12.0 | 2.5 | 38 | 750 | 2200 | 12 | 1200x383 | 1.761 |
| MEDIUM DUTY |
| Item code | I.D | OD | Thickness | W.P(at20˚C) | Vacuum Rat. | Bend Radius | Length | Dimension | Volume |
| inch | mm | mm | mm | bar | psi | mmHg(68˚F) | mm | m | D*H(cm) | m3/roll |
| PSHH019 | 3/4 | 19.0±0.5 | 23.0±0.5 | 2.0 | 5.0 | 75 | 750 | 70 | 50 | 60x20 | 0.072 |
| PSHH025 | 1 | 25.4±0.5 | 29.4±0.5 | 2.0 | 5.0 | 75 | 750 | 70 | 50 | 60x25 | 0.090 |
| PSHH032 | 1 1/4 | 31.7±0.5 | 35.7±0.5 | 2.0 | 5.0 | 75 | 750 | 90 | 50 | 70x30 | 0.147 |
| PSHH038 | 1 1/2 | 38.1±0.5 | 44.1±0.5 | 3.0 | 5.0 | 75 | 750 | 110 | 50 | 80x30 | 0.192 |
| PSHH050 | 2 | 50.8±1.0 | 57.8±1.0 | 3.5 | 5.0 | 75 | 750 | 150 | 50 | 100x25 | 0.250 |
| PSHH065 | 2 1/2 | 63.5±1.0 | 70.5±1.0 | 3.5 | 4.0 | 60 | 750 | 180 | 50 | 115x35 | 0.463 |
| PSHH075 | 3 | 76.2±1.0 | 84.2±1.0 | 4.0 | 4.0 | 60 | 750 | 220 | 50 | 135x40 | 0.730 |
| PSHH100 | 4 | 101.6±1.5 | 111.6±1.5 | 5.0 | 4.0 | 60 | 750 | 330 | 50 | 200x35 | 1.400 |
| PSHH125 | 5 | 127.0±1.5 | 139.0±1.5 | 6.0 | 3.0 | 45 | 750 | 500 | 50 | 230x42 | 2.220 |
| PSHH152 | 6 | 152.4±1.5 | 166.4±1.5 | 7.0 | 3.0 | 45 | 750 | 700 | 30 | 230x35 | 1.850 |
| PSHH200 | 8 | 203.2±1.5 | 219.2±1.5 | 8.0 | 2.5 | 38 | 750 | 1100 | 12 | 1200x230 | 0.640 |
| PSHH250 | 10 | 254.0±1.5 | 274.0±1.5 | 10.0 | 2.5 | 38 | 750 | 1400 | 12 | 1200x280 | 0.941 |
| PSHH300 | 12 | 304.8±1.5 | 324.8±1.5 | 10.0 | 2.5 | 38 | 750 | 1800 | 12 | 1200x330 | 1.310 |
| PSHH350 | 14 | 355.6±1.5 | 375.6±1.5 | 10.0 | 2.5 | 38 | 750 | 2200 | 12 | 1200x383 | 1.761 |
| LIGHT DUTY |
| Item code | I.D | OD | Thickness | W.P(at20˚C) | Vacuum Rat. | Bend Radius | Length | Dimension | Volume |
| inch | mm | mm | mm | bar | psi | mmHg(68˚F) | mm | m | D*H(cm) | m3/roll |
| PSHH019 | 3/4 | 19.0±0.5 | 23.0±0.5 | 2.0 | 4.0 | 60 | 750 | 70 | 50 | 60x20 | 0.072 |
| PSHH025 | 1 | 25.4±0.5 | 29.4±0.5 | 2.0 | 4.0 | 60 | 750 | 70 | 50 | 60x25 | 0.090 |
| PSHH032 | 1 1/4 | 31.7±0.5 | 35.7±0.5 | 2.0 | 4.0 | 60 | 750 | 90 | 50 | 70x28 | 0.137 |
| PSHH038 | 1 1/2 | 38.1±0.5 | 44.1±0.5 | 3.0 | 4.0 | 60 | 750 | 110 | 50 | 80x30 | 0.192 |
| PSHH050 | 2 | 50.8±1.0 | 56.8±1.0 | 3.0 | 4.0 | 60 | 750 | 150 | 50 | 100x24 | 0.240 |
| PSHH065 | 2 1/2 | 63.5±1.0 | 69.5±1.0 | 3.0 | 3.0 | 45 | 750 | 180 | 50 | 115x33 | 0.436 |
| PSHH075 | 3 | 76.2±1.0 | 83.2±1.0 | 3.5 | 3.0 | 45 | 750 | 220 | 50 | 135x38 | 0.693 |
| PSHH100 | 4 | 101.6±1.5 | 109.6±1.5 | 4.0 | 3.0 | 45 | 750 | 330 | 50 | 200x34 | 1.360 |
| PVC CORRUGATED SUCTION HOSE |
| HEAVY DUTY |
| Item Code | I.D | O.D | Thickness | W.P(at20˚C) | Vacuum Rat. | Bend Radius | Length | Dimension | Volume |
| inch | mm | mm | mm | bar | psi | mmHg(68°F) | mm | m/roll | D*H(cm) | m3/roll |
| PCSH019 | 3/4 | 19.0±0.5 | 25.0±1.0 | 3.0 | 7.5 | 110 | 740 | 60 | 50 | 57x20 | 0.065 |
| PCSH025 | 1 | 25.4±0.5 | 31.4±1.0 | 3.0 | 7.0 | 100 | 740 | 70 | 50 | 60x25 | 0.090 |
| PCSH032 | 1 1/4" | 31.7±0.5 | 38.7±1.0 | 3.5 | 7.0 | 100 | 740 | 90 | 50 | 70x28 | 0.137 |
| PCSH038 | 1 1/2" | 38.0±0.5 | 46.0±1.0 | 4.0 | 6.0 | 85 | 740 | 120 | 50 | 80x30 | 0.192 |
| PCSH050 | 2 | 50.8±1.0 | 58.8±1.5 | 5.0 | 6.0 | 85 | 740 | 150 | 50 | 100x25 | 0.250 |
| PCSH065 | 2 1/2" | 63.5±1.0 | 73.5±1.5 | 5.0 | 5.5 | 80 | 740 | 200 | 50 | 115x35 | 0.463 |
| PCSH075 | 3 | 76.2±1.0 | 88.2±1.5 | 5.5 | 5.0 | 70 | 740 | 230 | 50 | 135x40 | 0.729 |
| PCSH100 | 4 | 101.6±1.5 | 116.6±2.0 | 7.5 | 4.5 | 65 | 740 | 350 | 50 | 200x35 | 1.400 |
| PCSH125 | 5 | 127.0±1.5 | 142.0±2.0 | 7.5 | 4.5 | 65 | 740 | 500 | 50 | 220x35 | 1.690 |
| PCSH150 | 6 | 152.4±1.5 | 170.4±2.0 | 9.0 | 4.0 | 55 | 740 | 700 | 30 | 230x35 | 1.850 |
| PCSH200 | 8 | 203.2±2.0 | 223.2±2.0 | 10.0 | 2.0 | 35 | 740 | 1200 | 12 | 1200x230 | 0.640 |
| PCSH250 | 10 | 254.0±2.0 | 276.0±2.0 | 11.0 | 1.5 | 30 | 740 | 1800 | 12 | 1200x280 | 0.940 |
| PCSH300 | 12 | 304.8±2.0 | 330.8±2.0 | 13.0 | 1.5 | 20 | 740 | 2000 | 12 | 1200x330 | 1.320 |
| STANDARD DUTY |
| Item Code | I.D | O.D | Thickness | W.P(at20˚C) | Vacuum Rat. | Bend Radius | Length | Dimension | Volume |
| inch | mm | mm | mm | bar | psi | mmHg(68˚F) | mm | m | D*H(cm) | m3/roll |
| FCSS019 | 3/4 | 19.0±0.5 | 25.0±1.0 | 3.0 | 4.0 | 55 | 740 | 40 | 50 | 57x20 | 0.065 |
| FCSS025 | 1 | 25.4±0.5 | 31.4±1.0 | 3.0 | 4.0 | 55 | 740 | 45 | 50 | 60x25 | 0.090 |
| FCSS032 | 1 1/4 | 31.7±0.5 | 37.7±1.0 | 3.0 | 4.0 | 55 | 740 | 50 | 50 | 70x28 | 0.137 |
| FCSS038 | 1 1/2 | 38.0±0.5 | 45.0±1.0 | 3.5 | 3.5 | 50 | 740 | 55 | 50 | 80x32 | 0.192 |
| FCSS050 | 2 | 50.8±1.0 | 59.8±1.5 | 4.5 | 3.5 | 50 | 740 | 110 | 50 | 100x26 | 0.250 |
| FCSS065 | 2 1/2 | 63.5±1.0 | 72.5±1.5 | 4.5 | 2.5 | 35 | 740 | 180 | 50 | 115x35 | 0.463 |
| FCSS075 | 3 | 76.2±1.0 | 87.2±1.5 | 5.5 | 2.5 | 35 | 740 | 220 | 50 | 130x43 | 0.729 |
| FCSS100 | 4 | 101.6±1.5 | 115.6±2.0 | 7.0 | 2.5 | 35 | 740 | 240 | 50 | 200x35 | 1.400 |
| FCSS125 | 5 | 127.0±1.5 | 141.0±2.0 | 7.0 | 2.5 | 35 | 740 | 400 | 50 | 220x35 | 1.690 |
| FCSS150 | 6 | 152.4±1.5 | 168.4±2.0 | 8.0 | 2.0 | 30 | 740 | 450 | 30 | 230x35 | 1.850 |
| FCSS200 | 8 | 203.2±1.5 | 223.2±2.0 | 10.0 | 1.5 | 20 | 740 | 700 | 12 | 1200x230 | 0.640 |
| FCSS250 | 10 | 254.0±2.0 | 276.0±2.5 | 11.0 | 1.0 | 15 | 740 | 950 | 12 | 1200x280 | 0.940 |
| FCSS300 | 12 | 304.8±2.0 | 330.8±2.5 | 13.0 | 1.0 | 15 | 740 | 1000 | 12 | 1200x330 | 1.320 |
| LIGHT DUTY |
| Item Code | I.D | O.D | Thickness | W.P(at20˚C) | Vacuum Rat. | Bend Radius | Length | Dimension | Volume |
| inch | mm | mm | mm | bar | psi | mmHg(68˚F) | mm | m | D*H(cm) | m3/roll |
| FCSL019 | 3/4 | 19.0±0.5 | 25.0±1.0 | 3.0 | 4.0 | 55 | 740 | 40 | 50 | 57x20 | 0.065 |
| FCSL025 | 1 | 25.4±0.5 | 31.4±1.0 | 3.0 | 4.0 | 55 | 740 | 45 | 50 | 60x25 | 0.090 |
| FCSL032 | 1 1/4 | 31.7±0.5 | 37.7±1.0 | 3.0 | 4.0 | 55 | 740 | 50 | 50 | 70x28 | 0.137 |
| FCSL038 | 1 1/2 | 38.0±0.5 | 44.0±1.0 | 3.0 | 3.5 | 50 | 740 | 55 | 50 | 80x32 | 0.192 |
| FCSL050 | 2 | 50.8±1.0 | 58.8±1.5 | 4.0 | 3.5 | 50 | 740 | 110 | 50 | 100x26 | 0.250 |
| FCSL065 | 2 1/2 | 63.5±1.0 | 71.5±1.5 | 4.0 | 2.5 | 35 | 740 | 180 | 50 | 115x35 | 0.463 |
| FCSL075 | 3 | 76.2±1.0 | 85.2±1.5 | 4.5 | 2.5 | 35 | 740 | 220 | 50 | 130x43 | 0.729 |
| FCSL100 | 4 | 101.6±1.5 | 136.6±2.0 | 6.0 | 2.5 | 35 | 740 | 240 | 50 | 200x35 | 1.400 |
| FCSL125 | 5 | 127.0±1.5 | 139.0±2.0 | 6.0 | 2.5 | 35 | 740 | 400 | 50 | 220x35 | 1.690 |
| FCSL150 | 6 | 152.4±1.5 | 164.4±2.0 | 6.0 | 2.0 | 30 | 740 | 450 | 30 | 230x35 | 1.850 |
>>
