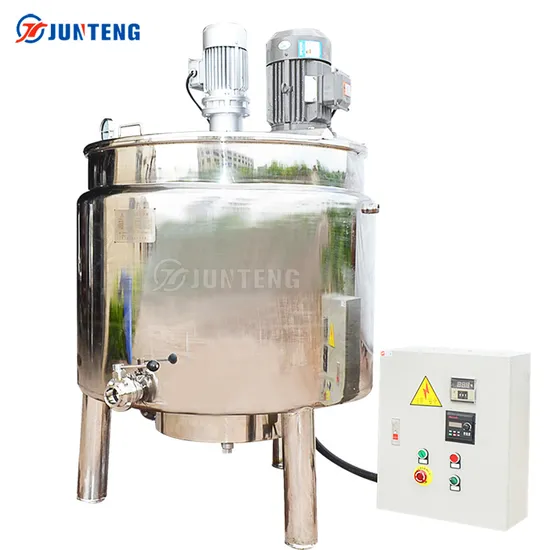

Stainless Steel Electric Heating Melting Tank Vacuum Homogenizer Mixer Emulsifying Tank

Product Description

Product Parameter

Model	Working volume (L)	Dimension of tank (D*H)(mm)	Total Height (mm)	Motor power (kw)	Agitator speed (r/min)
JTHV-500	500	800x900	1700	0.55	49
JTHV-1000	1000	1000x1200	2100	0.75
JTHV-2000	2000	1200x1500	2500	1.5
JTHV-3000	3000	1600x1500	2600	2.2
JTHV-4000	4000	1600x1850	2900	2.2
JTHV-5000	5000	1800x2000	3150	3
JTHV-6000	6000	1800x2400	3600	3
JTHV-8000	8000	2000x2400	3700	4
JTHV-10000	10000	2100x3000	4300	5.5
Other sizes can be custom made per clients requirement!

Products Description: Content heating can be an important function for both mixing and storage tanks. Heat can be applied to the tank contents using a variety of methods including direct fire, steam, electrical, jacketed and more. Stainless steel is ideal for these heated mixing and storage tank applications. Non-oxidizing, easy to clean, easy to sterilize, available in standard and custom sizes, Wenzhou Junteng Machinery Limited. specializes in stainless steel tanks - it's all we do. If you need high-quality stainless steel heated mixing or storage tanks for your application - one, ten, one hundred or more - we can build them for you

Product Display

Key Components

High Quality and Nicely Built Electric Heating Tank for Your Trust and Honored Choice!
01, Glass Manhole

The high pressure sight glass manhole is a way for raw material loading and deep cleaning. The operator can see the mixing process inside the boiler clearly. So that all reactions changes inside the tank can be monitored closely and timely. This manole can be made in stainless steel with a sight glass union too per clients requirement. But all these manles should bear high pressure in order to avoid any air leaks during the production process.
02, Ex-proof Electric Motor
The Ex-proof elctric motor is connected with a gear box to drive the mixing blade to stir the raw materials inside the tank. The raw materials can be liquid, paste or sometimes powder. The Ex-proof electric motor is very important for some specific industries, such as alcohol distillation and chemicals.
03, Mixing Blade
Actually, there are many different kinds of mixing blades, such as paddle mixer, anchor mixer, magnetic mixer, spiral ribbon mixer etc.. The customers can choose the most suitable one per the requirement of application.

04, Liquidmeter
The liquidmeter is usually required if you are going to proceed the liquid materials. You can check and closely monitor the latest liquid level of the material inside the tank during the production process. There are common sight glass liquidmeter, magnetic flap level gauge and so on.
05, Control Panel
The operator can control the raw material loading, heating, mixing and transfer easily by the control panel. The whole process can be done semi-automatic and fully automatic per clients requirement.


Q: Are you a manufacturer or trading company? A: Junteng is leading manufacturer based in Wenzhou, China. Q: Which kind of product can you make? A: We are producing and supplying distillery equipment, dairy equipment, crafts beer equipment, tanks and sanitary components.
Q: Can you make the products per our requirement? A: Yes, Junteng has strong R&D team that can provide you customized solution and products.
Q: Will you charge us for drafting drawing and designing? A: No, we provide free engineering and designing services for our customer if that is necessary.
Q: What is the warranty of your products? A: The standard warranty is 1 year for our products.
Q: Can you provide service and instruction for installation after delivery? A: Yes, we can provide you free instruction and support online. We can also send engineer to your factory for onsite instruction. But you need to pay the travel expense.
Q: Can we become your local distributor? A: Yes, we are working with many distributors all over the world. We'll be glad to discuss with you for the details if you have interest.
Q: What is your required MOQ? A: The MOQ is 1pc for the stock products. The MOQ of custom made product should be per discussion.

---
