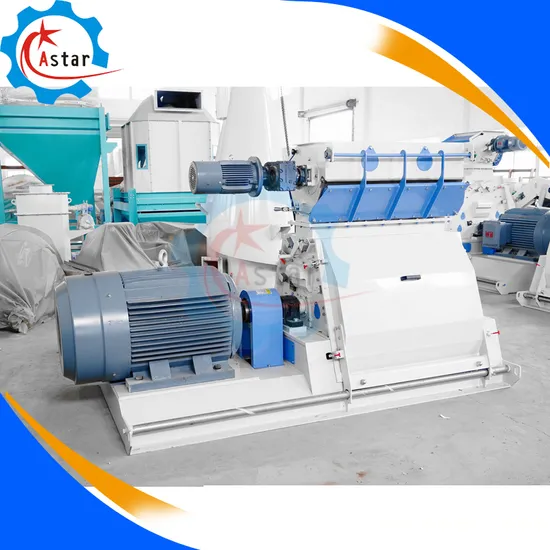

Fine Grinding Wood Crusher Pulverizer Milling Machine Process Sawdust

Product Description

Fine Grinding Wood Crusher Pulverizer Milling Machine Process Sawdust
All our Hammer Mill Models ( below capacity based on crush corn), when use to crush wood chips, capacity will be lower :

Name	Model	Power(KW)	Capacity(T/H)
Hammer Mill	AST-ZW36A	22	1-3
	AST-ZW40A	37	3-5
	AST-ZW30C	55	6
	AST-ZW30C	75	8
	AST-ZW40C	90	10
	AST-ZW40C	110	12
	AST-ZW50C	132	16
	AST-ZW60C	160	18
	AST-ZW80C	185	20
	AST-ZW80C	200	25
	AST-ZW100C	220	28
	AST-ZW100C	250	32
Hammer Mill	AST-ZW60B	55	2
	AST-ZW60B	75	3.5
	AST-ZW80B	90	5
	AST-ZW80B	110	7
	AST-ZW100B	132	9
	AST-ZW120B	160	15

1. Fine Grinding Wood Crusher Pulverizer Milling Machine Process Sawdust Character :
1. It is universal type product. With stable performance . it is widely used in small and medium size feed and food processing industries for raw materials grinding .
2. The design of overall base is high in structural strength and beautiful in appearance.
3. Direct transmission and advanced falk flexible coupling are adopted. The reasonable arrangement of hammers and clearance between hammers and screens make sure the final products are in uniform fineness .
4. Multi-grinding chambers are assembled in this machine. The secondary grinding chamber is cast ironing, which has high abrasive resistance .
5. The bearing imported is with high quality , when working, it has low temperature rising. And it is equipped with the temperature indicator that can show the working condition. The bearing pedestal is SKF brand from Sweden .
6. Various screen sieve size are selectable. Quick-starting type door opening machinery and frame-type screen pressing mechanism are adopted. Which can make the screen fixed solidly and fast to change the new screen. In this way, this design is easy to operate and convenient to maintenance .
7. The tool bit of the hammer is spray welding with carbon tungsten alloy, which has long lifetime .

2. Fine Grinding Wood Crusher Pulverizer Milling Machine Process Sawdust B Series :

Model		AST-ZW60B		AST-ZW80B		AST-ZW100B	AST-ZW120B
Rotor diameter(mm)		660		660		660	660
Spindle speed(RPM)		2980		2980		2980	2980
Linear speed of hammers ( m/s)		78		78		78	78
Pulverizing room width (mm)		600		800		1000	1200
Screen size (mm)		2pcs ( 830*598)		4 pcs ( 830*393)		4 pcs ( 830*493)	4pcs ( 830*593)
Hammers Qty ( Pcs)		96		120		160	192
Power( kw)		55	75	90	110	132	160/185
Normal Air Volume ( M3/h)	Rough crushing	42	46	55	61	80	100
	Fine crushing	55	60	72	78	100	130
This series of pulverizers are installed correctly, the suction is good, and the performance indicator is used under the correct conditions.
Capacity as below
Ordinary grinding output( t/h)		9	12	14	16	18	20
Fine grinding output(T/H)		2	3.5	4.5	6	8	10

The above capacity is based on crush raw materials corn, moisture less than 13% .the bulk weight is not less than 0.72T/m3, matched with screen size 3mm, hole Opening ratio is not lower than 33% .
Fine Grinding Wood Crusher Pulverizer Milling Machine Process Sawdust C Series :

Model	AST-ZW-30C		AST-ZW-40C		AST-ZW-50C	AST-ZW-60C	AST-ZW-80C		AST-ZW-100C
Rotor diameter (mm)	1120		1120		1120	1120	1120		1120
Spindle speed(rpm)	1480		1480		1480	1480	1480		1480
Linear speed of hammers (m/s)	86.5		86.5		86.5	86.5	86.5		86.5
Pulverizing room width(mm)	300		400		500	610	810		1010
Screen size (mm)	2pcs ( 1400*298)		2pcs ( 1400*398)		2pcs (1400*498)	4pcs ( 1400*298)	4pcs (1400*398)		4pcs ( 1400*498)
Number of hammers	52		72		92	104	144		184
Power(kw)	55	75	90	110	132	160	185	200	220	250
Normal Air Volume ( M3/min)	55	60	72	78	95	100	120	140	140	160

3. Fine Grinding Wood Crusher Pulverizer Milling Machine Process Sawdust More Photos:
Any more information you need Fine Grinding Wood Crusher Pulverizer Milling Machine Process Sawdust, please feel free to contact with us.
