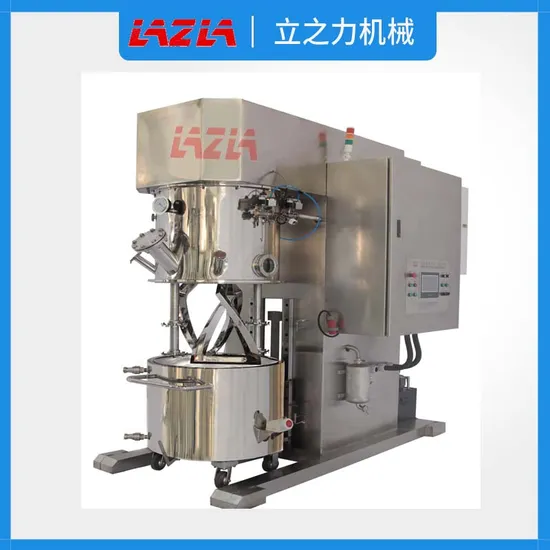

30L New Double Planetary Mixer for Mixing Slurry Material

Product Description

Product Introduction
The planetary power mixer is a new all-powerful machine, which combines the principle of traditional double planet mixer and high speed dispersion machine, and has been widely used in many fields.
For the characteristics of high solid content and large viscosity of power battery slurry, our company has developed an enhanced power mixer with higher speed and greater torque on the basis of the proto-planetary power mixer. In the design process, fully consider the speed of the agitator, stirring power, dispersion linear speed, suspension grade, liquid flow pattern and the distribution of turbulence intensity in the barrel and other factors, the highest high-speed dispersion linear speed can reach 18m/s±1, the enhanced twist frame can handle any high viscosity battery slurry. The new mixing method - the twist frame rotates clockwise and turns counterclockwise to ensure that the mixing has no dead Angle and no "climbing" phenomenon. In terms of sealing, two sets of mechanical seals plus soft and static seals ensure vacuum - in theory, the sealing performance is enhanced by 30%. The Pt100 temperature sensor is in direct contact with the material, the measurement is more accurate, the reaction speed is faster, and the error is only between ±0.5ºC. This machine is composed of base, beam, column, seal cover, cylinder, transmission and electric control system. Equipment Configuration

Name	Type specification	Brand origin
Reducer	RF88-V4-4P	China
Motor	Low speed 4KW-4 level, 1 set; High speed motor 5.5KW-2 level, 1 set	China
Converter	4KW*1 set, 5.5KW*1 set	VEICHI
Touch Screen	7 inch touch screen, touch screen can run normally, according to actual needs can also omit some steps to run	VEICHI
PLC	By Design Requirements	VEICHI
Platinum Thermistor	Material: stainless steel; Measuring temperature: -50 degrees to 280 degrees; Thermal reaction time: 0.3s; measuring accuracy:1°	HTC
Bearing	By Design Requirements	Germany FAG/HRB
Linear Guideway	HGW30CA, Class C accuracy	Hao Chen
Framework Oil Seal	Fluoroplastic skeleton oil seal	NAK/YSDA
Electrical Apparatus Element	Low-voltage electrical components	Schneider Electric
Valve	According to the drawing	ANIX
Mechanical Seal	Two sets of mechanical seals	Chesterton
Gear	Using 20CrMnTi vacuum treatment, tooth surface carburizing hardening processing precision grinding, using bevel gear transmission	OWT
Lubricating Grease	High speed bearing special grease temperature 600 degrees	Bester

Product Specifications

vacuum degree	-0.098Mpa Vacuum pressure holding: no less than -0.085Mpa for static 2 hours
Structure	Cantilever type
RPM r/min	Revolution: 0~42r/min±1 Rotation: 0~82r/min±2 (frequency control of motor speed); High speed: 0~4500r/min±1.5% (frequency control of motor speed), meet line speed requirements.
Low Speed Shaft	Two axis twist
High Speed Shaft	Dual high speed dispersion axes with two Φ75 dispersion discs on the shaft
Lifting Mode	Linear guide cylinder hydraulic lifting Hydraulic motor: 0.75KW
Lifting Height	400mm
Temperature Measurement Method	Barrel wall temperature measurement
Tank Body Positioning	The cylinder body is positioned with a circular body positioning block, and the kettle cover is provided with a flange structure to ensure the center positioning
Total Power (KW)	10.5kw
Power Supply	AC: 3*380V, 50HZ
Dimensions	Length: 1630 Width: 1050 Heigth: 1800 (mm)
Weight (kg)	About 900kg

Dimension parameter

Tank Size (mm) (Inner diameter * Internal height)	Φ400mm×350mm
Volume (L)	44L Effective volume: 30L
Design Pressure (Mpa)	Inner tank: -0.098Mpa Jacketed: 0.4Mpa
Design Temperature (°C)	-10~+200°C
Tank Body Thickness(mm)	Inner tank: δ5mm (Measured thickness after processing) Jacketed: δ3mm.
Temperature control form	Barrel wall temperature measurement, signal quick plug transmission to temperature controller display temperature
Moving Method	Manual operation

Our Advantages
1. We are a direct manufacturer and our priority is your complete satisfaction.
2. Logo printing: We can print any logo as per your requires on the case.
3. We take care of each order from start to finish. All emails will be answered in 1 day
4. No matter what's your order quantity, we will offer the same attention to our quality and service
5. Delivery & lead time: All delivery methods are acceptable, and our lead time is quite short. Usually, our lead time around 7 days, depending on the quantity.
6. Packages: Available for ploy bag or carton box
Company Profile
Li&Li Mechanical (Guangzhou) Corporation is a professional and experienced corporation that mainly occupied in design, manufacture, installation and debugging of coating, chemicals, cleaning good, pharmacy, new energy, Oil&Gas engineering, daily use, food, etc. equipment. Enterprise strictly execute the ISO9001 standard management, It has obtained 33 national patents for inventions and practical new types, and has obtained the D1.D2 pressure vessel manufacturing and pressure pipeline installation qualification issued by the National Quality Inspection Bureau. Our products include: all kinds of Reactor, high-speed dispersers, mixing tanks, condensers(heat exchanger), recycling towers, weighing control systems and other complete sets of automation control equipment, at the same time, customize all kinds of special-shaped equipment for customers.Our branch located Chongqing will start product by the end of 2023
