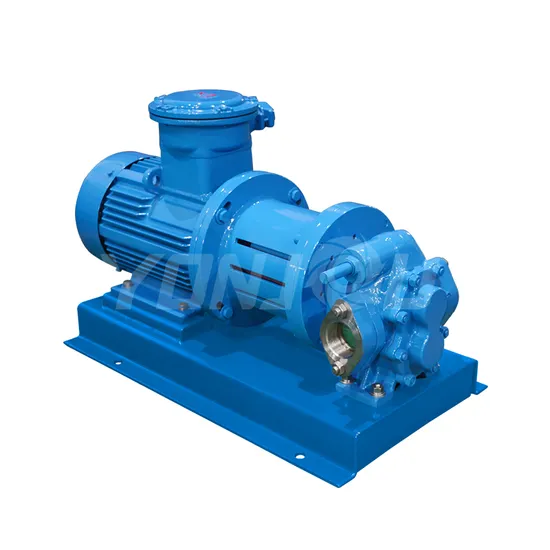

10%off KCB Horizontal or Vertical Stainless Steel Cast Iron External Gear Pump Rotary Rotor Lube Oil Transfer Gear Pump

Product Description

1. KCB Electric Hydraulic Gear Oil Pump Transfer Waste Oil, Olive Oil, Crude Oil, Diesel Oil is designed for
pumping light fuel oils such as diesel, kerosene, and biodiesel. It is also possible to pump vegetable oil, motor oil,
and even glycerol.
2. It is helical gear pump, and built-in by-pass valve. For pumping clean viscous liquids, not containing abrasive
or solid particles.
3. They can run dry for only intermediate amounts of time, allowing for the use of a suction hose for collecting
fluids from a tank. They should not be run dry for an extended period of time as oil is required to lubricate the pump head.
Generally used in:
Petrochemicals: Pure or filled bitumen, pitch, diesel oil, crude oil, lube oil etc. Chemicals: Sodium silicate, acids, plastics, mixed chemicals, isocyanates etc. Paint and ink. Resins and adhesives. Pulp and paper: acid, soap, lye, black liquor, kaolin, lime, latex, sludge etc. Food: Chocolate, cacao butter, fillers, sugar, vegetable fats and oils, molasses, animal food etc.

Working Principle:	Double Gears
Pump body material:	Cast Iron, SS304, SS316
Gear material:	#45 Steel, Copper, SS304, SS316
Temperature range:	Normal ≤ 70 C, Special ≤ 300 C
Driver:	Motor engine, diesel engine
Power specs:	220V, 240V, 380V, 400V, 415V, 440V, 460V, 50hz/60hz
Max flow rate:	9600 L/min
Max discharge pressure:	1.45MPa
Type of connection:	Quick couple, Thread, Flange
Shaft seal type:	Oil seal, Mechanical seal, Graphite seal
Sliding bearing:	Good aseismic performance
Helical Gear:	Good meshing performance, steady transmisson of gear reduce noise.

Model	Flow rate	Max Pressure	Max Power	Inlet&Outlet
	(L/m)	(Mpa)	(kW)	(mm)
KCB18.3	18.3	1.45	1.5	20
KCB33.3	33.3	1.45	2.2	20
KCB55	55	1	3	25
KCB83.3	83.3	1	4	40
KCB133	133	1	5.5	50
KCB200	200	1	7.5	50
KCB300	300	1	11	80
KCB483.3	483.3	1	11	80
KCB633	633	0.8	22	100
KCB960	960	0.6	30	100
KCB1200	1200	0.6	37	150

Company information:
Zhejiang Yonjou Technology Co., Ltd is one of the leading manufacturers and exporters in the field of industry pumps
with manufacturing facilities in mainland China. We are specialized in oil pump, diaphragm pump, diesel engine pump,
centrifugal pump, screw pump, chemical pump etc.

---
