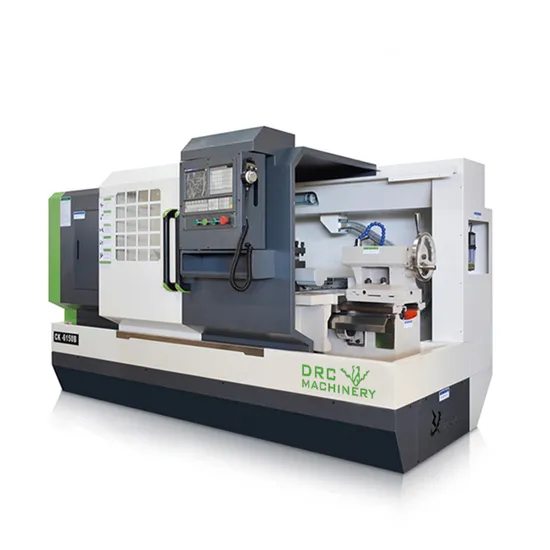

CNC Metal Lathe CNC Lathe Ck6150 Japan Fanuc CNC Turning Lathe Machine Center with CE ISO

Product Description

Cnc Metal Lathe Cnc Lathe Ck6150 Japan Fanuc Cnc Turning Lathe Center With Ce Iso
This series of machine tools is a mature product mainly exported by Dalian DRC Machinery Tool Co., Ltd. The whole machine has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.
Optimized design of the headstock, suitable for turning of disc and shaft parts. It can process straight, arc, metric and inch threads, and multi-threaded. It is suitable for turning discs and shafts with complex shapes and high precision requirements. Parts Processing.
Both the machine tool guide rail and the sliding saddle guide rail adopt hard guide rails of special materials, which are super hard and wear-resistant, durable, and have good machining accuracy retention after high-frequency quenching.
The numerical control system adopts GSK980TC3 and servo drive of Guangshu system, and adopts domestic famous and high-quality ball screw and high-precision screw bearing.
The spindle adopts high-precision spindle bearing set and has been precisely assembled and dynamically balanced to ensure that the spindle has high precision, low noise and strong rigidity.
Each lubrication point adopts a forced automatic lubrication device for fixed-point and quantitative lubrication of the lead screw and guide rail. When there is an abnormal state or the amount of oil is insufficient, a warning signal is automatically generated.
Use domestic 250 manual chuck.
The guide rail is equipped with a scraping device to prevent the guide rail from being corroded by iron filings and coolant, and to facilitate the cleaning of the iron filings.

Model	CK6150*1000 mm ( GSK980TC3 System)
Processing ability	Unit ( mm )
Max. swing over bed	500
Max. swing over slide	250
Max. Processing length	1000mm(Optional)1500mm/2000mm
Travel
X/Z axis travel	280/1000mm
Spindle nose	A2-8
Spindle
Spindle bore diameter	82mm(Optional)130mm
Spindle inner hole taper	MT6
Spindle series	stepless
Max. spindle speed	L:70~700,H:160~1800rpm
Chuck size	Manual chuck K10-250
Main motor power	7.5 /11kW
Feed turret
X/Z axis torque	5/15N.m
X/Z axis rapid speed	6/8 m/min
Turret type	Electicity
Tool shank size	25×25
X/Z axis repeatability	±0.005
Tailstock
Tailstock diameter	75
Tailstock travel	150
Tailstock center taper	MT5
Others
Machine net weight	3150kg
Machine dimension(L×W×H)	3750×1700×1820
Power supply(power/ electric current)	13kW/20A
Standard configuration
Chuck	250 manual chuck
Tailstock	Manual tailstock
X axis ball screw	Domestic(Qishan)FD3210-889-1035
Z axis ball screw	Domestic(Qishan)FD2506-407-530
Electricity turret	4 position
X,Z axis screw bearing	Domestic(Derun)
Spindle bearing	Domestic P5
Machine casting	Highquality resin sand casting
Spindle assembly	Assembly spindle
Oil paint	Can be customized color
Lubrication	Domestic

---
