Multi-Functional Hand Held Fiber Laser Welder Cleaner/Multifunction Handheld 3 in 1 Welding, Cleaning, Cutting Machine.Metal Rust Removal/Surface Cleaner/Cutter

Product Description

Product Description

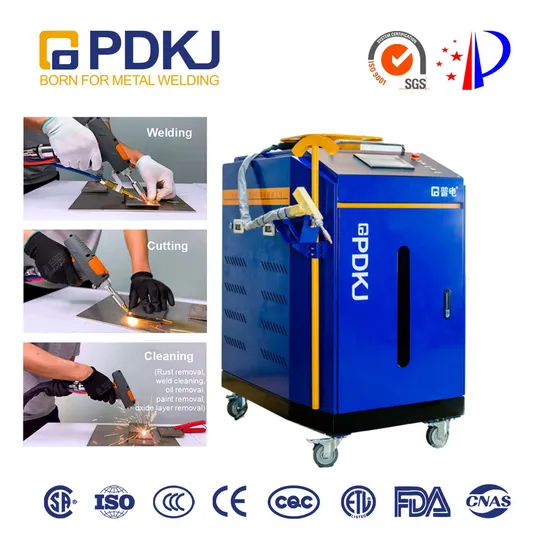

3-in-1 Multifunctional Hand-held Laser Welding Machine
Hand-held Fiber Laser Welding Machine with Welding, rust removal, and cutting functions
Optical fiber handheld welding gun
QBH interface mode, simple structure, air blowing function and safety protection function
Constant temperature chiller
High efficiency compressor, water pump, overtemperature alarm, flow protection


The hand-held continuous laser welding machine is an integrated structural design, adopts the latest generation of laser generator, and integrates double drive automatic wire feeding The system is equipped with double swing welding joint independently developed by our company. Flexible and convenient welding, good beam quality and less deformation of welding body, The weld is smooth and beautiful with high reliability. Flexible transmission non-contact hanging welding is applied to the parts that are difficult to be accessed by ordinary argon arc welding gun Connect. It is suitable for spot welding and full welding of complex and irregular inner and outer corners and joints of various metal frame structural parts and sheet metal parts, The utility model has the advantages of simple operation, beautiful weld and fast welding speed. Applicable to aluminum alloy plate, stainless steel plate, iron plate and galvanized steel plate The welding of plate and other metal materials can perfectly replace the traditional argon arc welding, electric arc welding and other processes.
Product Introduction:

Project	Parameter
Equipment name	Multifunctional Hand-held Fiber Laser Welding Machine with Automatic Wire Feeding
Fiber line length	Standard configuration 10m (customized length up to 15m)
control model	TTL level/ GUI
Cooling system	Water cool / All in one constant temperature
Working environment temperature range	15-35°C
Recommended welding thickness	0.1-5mm
Consumables	Protective lenses

Detailed Photos


Product Parameters

Parameter name	LWM1500-M	LWM2000-M
Input power	220V / 1500W	220V / 2000W
Automatic wire feeding	Yes	Yes
Bonding strength with base metal	Very good	Very good
Welding gun model	A/B/C Optional	A/B/C Optional
Laser wavelength	1064nm	1064nm
Overall power	2500W	3000W
Welding interval requirements	<0.5mm	<0.5mm
Aiming and positioning	Infrared	Infrared
Robot automatic welding interface	Yes	Yes
Welding capacity / Aluminum	0.2-3.0mm	0.2-4.0mm
Welding capacity / Carbon steel	0.2-4.0mm	0.2-5.0mm
Welding capacity / Stainless steel	0.2-4.0mm	0.2-5.0mm
Welding capacity / Galvanized sheet	0.2-3.0mm	0.2-4.0mm
Welding speed	0-120cm/Min	0-120cm/Min
Collimation focusing	D16 F60mm	D16 F60mm
Focusing focal length	D20 F800mm	D20 F800mm
Maximum air pressure	15Bar	15Bar
Vertical adjustment focusing range	±10mm	±10mm
Cleaning width	<120mm	<120mm
Applicable wavelength	1070nm	1070nm
Net weight / Packing weight	280kg / 331kg	300kg / 351kg
Overall dimension / Packing size	1050*750*1310mm / 1110*850*1870mm	1050*750*1310mm / 1110*850*1870mm

Our Advantages
01.The welding speed is 2-3 times faster than the traditional welding speed. It can help you save at least two welders a year

02.Laser welding has the advantages of low material consumption and long service life

03.It is easy to operate without welding license, and the novice can weld beautiful products

04.Safer and more environmentally friendly

05.The self-developed swing welding head makes up for the disadvantage of small laser spot, expands the tolerance range and weld width of the workpiece, and achieves good weld forming effect.


Comparision:

Project	Conventional argon arc welding	Laser welding	PDKJ handheld optical fiber welding
Heat input to workpiece	Very high	Low	Low
Deformation and undercut of workpiece	Large	Small	Small
Subsequent processing	Grinding	No or little grinding is needed	No or little grinding is needed
Welding speed	General	More than 2 times of argon arc welding	More than 2 times of argon arc welding
Applicable materials	Stainless steel / carbon steel / galvanized sheet / aluminum alloy / copper	Stainless steel / carbon steel / galvanized sheet / aluminum alloy / copper	Stainless steel / carbon steel / galvanized sheet / aluminum alloy / copper
Consumables	Multiple	Less	Less
Operation difficulty	Complex	General	Simple
Impact of environmental protection	Not environmentally friendly	Environmental protection	Environmental protection
Welding fault tolerance	OK	General	OK
Hold hands and head	No	No	Yes
The brightness of light spot is adjustable	None	None	Yes
Welding quality	Poor	General	Very good

Application
Advantage: Easy to use, beautiful welded seam, fast welding speed, small deformation, high efficiency, high precision, and high-performance welding.Suitable for welding stainless steel plate, aluminum alloy plate, carbon steel, galvanized plate and other metal materials; Widely used in cabinets, kitchens, stairs, elevators, racks, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel home furnishing and other industries.
Packaging & Shipping

Number	Name	Specifications	Qty.	Unit	Remarks
1	Laser welding host	Integrated	1	Set	Standard configuration
2	CW fiber laser	1500W / 2000W	1	Unit	Standard configuration
3	Industrial Chiller	Constant temperature	1	Unit	Standard configuration
4	Laser control system	Touch screen	1	Set	Standard configuration
5	Hand-held welding gun	T-type	1	Piece	Standard configuration
6	Multi-functional wire feeder	0.8-1.6mm	1	Unit	Standard configuration
7	IO robot connection supporting control system	PDKJ-PW353	1	Unit	Standard configuration

Company Profile
Founded in 2006, Pudian Technology is a professional supplier of welding automation solutions. The company has passed the ISO9001 international quality management system certification, has more than 80 officially authorized and applied national patents, and a number of core technologies in the welding field fill the technical gap at home and abroad. It is a national high-tech enterprise. Over the past 17 years, Pudian Technology has provided products and services to nearly 9000 users worldwide in the field of welding automation. PDKJ brand spot welder laser welding machines are popular in more than 30 countries and regions around the world. In the future, we will continue to create lifelong value for users worldwide in the field of welding automation!
FAQ
1. Who are we?
We are based in Dongguan, China, start from 2006, Oversea sell to North America(20.00%), Southeast Asia(20.00%), Mid East(20.00%), Domestic Market(20.00%), South America(10.00%), Northern Europe(10.00%). There are about 11-50 professional Engineers in our office.
2. Why should you buy from us not from other suppliers?
In order to meet the special requirements of customers for products, PDKJ is willing to customize personalized products for you, so that customers can understand the professional services brought by sophisticated equipment.

---
