Drum Tree Branch Chipper Plywood Wood Pallet Shredder Crusher Machine

Product Description

Product Description
Wood Composite Crusher
Wood Composite Crusher is mainly used for round log, building template,wasted wooden pallet,tree bark,
slabs,branches,straw and so on. Chain Plate Feeding conveyor feeding more freely, no need change the belt all the time. Simple operation, high automatic level,and high production capacity.Less manpower,easy maintenance.
Product Parameters

Specification	WS800-500	WS1300-600	WS1400-600	WS1600-600
Feeding Inlet	800*500mm	1250*600mm	1400*600mm	1600*600mm
Blade Roller Diameter	830mm	850mm	850mm	850mm
Blade Roller Speed	850RPM	850RPM	850RPM	850RPM
Capacity	10Tons/Hour	12-15Ton/Hour	25-30Tons/Hour	25Tons/Hour
Knife Blade Quantity	2Group/4PCS	2Group/4PCS	2Group/4PCS	2Group/4PCS
Motor Power	110KW	160KW	200KW	250KW
Wood Chipper Size	20-50mm	20-50mm	20-50mm	20-50mm
Chain Plate Feeding	5000mm	5000mm	5000mm	5000mm
Output Conveyor	10 meters	10 meters	10 meters	10 meters

Detailed Photos
1.Electric Engine Wood Crusher

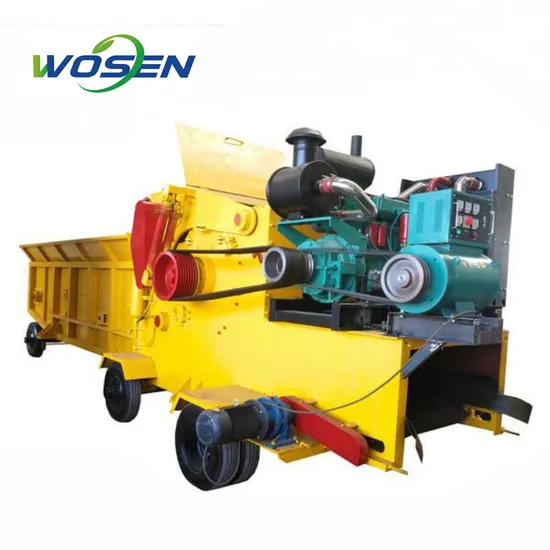

2.Diesel Engine Wood Crusher

3.Mobile Type Wood Crusher

4.Main Parts

Packaging & Shipping
Company Profile
Our company is China leading manufacturer of woodworking machinery,we are able to offer professional woodworking machinery to customers.
Our products are mainly included wood crusher,band saw, circular sawmill, wood pallet machine, wood pellet machine, wood planer, production line and so on. We have exported our machines to more than 70 countries and regions around the world, such as Southeast Asia, North America, South America, Africa, Europe, Middle East, Australia, Russia and so on.
In order to meet different requirements of customers, we have been constantly developing and improving product technology, quality and after-sale service. And we able to customize machine according to customer requirements, so it has won the favor of many customers.
If you are interested in our machine, please feel free to contact us.
FAQ
1.What is the machine delivery time ?Delivery time is 10-15 days.2.What is the payment term ?Payment term is 30% TT advance and balance before delivery machine.3.Could the machine customized according to client requirements ?Yes, can customize according to client requirements.4.What terms of trade can provide?We accept EXW, FOB, CIF, Express Delivery.5. What is your company business scope ?Our company main sell woodworking machine, including wood crusher, wood sawmill, wood pallet machine, wood pellet machine, drying kiln, wood planer and so on.
Related Machines
1.Drum Wood Chipper

Model	WS216	WS218
Blade Roll Diameter	650mm	800mm
Blade Roll Length	600mm	800mm
Blade Quantity	2 or 3 PCS	2 or 3 PCS
Feeding Inlet	240*540mm	310*680mm
Blade Roll Speed	650R/Min	650R/Min
Max Processing Wood Diameter	240mm	330mm
Wood Chip Length	20-30mm	20-30mm
Production Capacity	5Ton/Hour	7-10 Ton/Hour
Main Motor Power	55KW	90KW
Feeding Roll Motor Power	3KW*1,4KW*1	5.5KW*2
Weight	4070kg	7500kg

2.Disc Wood Chipper

Model	WS-27	WS-35	WS-45	WS-50
Feeding Inlet	270*270mm	350*350mm	450*450mm	500*500mm
Production Capacity	10 Ton/Hour	15 Ton/Hour	25 Ton/Hour	30 Ton/Hour
Blade Roller Diameter	1200mm	1200mm	1600mm	1800mm
Knife Quantity	6 PCS	6 PCS	6 PCS	6 PCS
Main Motor	90KW	110KW	185KW	220KW
Feeding Conveyor	6000mm	6000mm	6000mm	6000mm
Output Conveyor	12000mm	12000mm	12000mm	12000mm
Wood Chips Size	25-35mm	25-35mm	25-35mm	25-35mm
Weight	3300kg	4500kg	6500kg	9600kg

3.Tree Stump Crusher

Technical Parameter	WS3600
Blade Shaft Size	1600*850mm
Rotor Diameter	800mm
Blade Qty	4 PCS
Main Motor Power	185KW Electric Engine
Feeding Inlet Diameter	3600mm
Output Conveyor Length	12 Meters
Production Capacity	25-30 Ton/Hour
Weight	18 Ton

---
