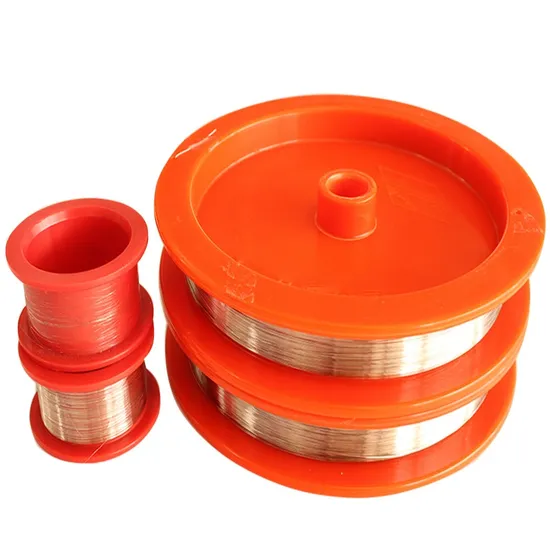

0.025mm Platinum Iridium Wire, PT-IR Wire PT IR Alloy Wire

Product Description

Product Description Specification: round wire 0.015mm-1.2mm
Strip: 60.1-0.5mm
Platinum iridium wire is a platinum based binary alloy containing iridium. It is a continuous solid melt at high temperature. When it is slowly cooled to 975~700 ° C, solid phase decomposition occurs, but the phase equilibrium process is slow. Iridium is volatile and oxidized, which can improve the corrosion resistance of platinum. There are Ptlr10.Ptlr20Ptlr25Ptlr30 and other alloys, which have high hardness, high melting point, strong corrosion resistance and low contact resistance. The chemical corrosion rate is 58% of pure platinum, and the oxidation loss is 2.8mg/g. They are common electrical contact materials, and are used for electrical contacts with high ignition contacts of aeroengines, sensitive relays, and electric motors; Potentiometers and conductive ring brushes for sensors such as aircraft, missiles and gyroscopes.
Pt Ir wires are used as high oxidation resistance thermocouple materials and filament materials. Iridium wire and iridium alloy wire are mainly used in dry spark plug industry, aviation, chemical industry, crystal, electromechanical and other related fields (ignition electrode, high temperature thermocouple, electrical contact material, filament, high temperature resistance wire

Material Science	melting point(ºC)	density(G/cm³)
Platinum Iridium-Ir(99.99%)	2410	22.42
Platinum-Pt(99.99%)	1772	21.45
Pt-Ir5%	1790	21.49
Pt-Ir10%	7800	21.53
Pt-Ir20%	1840	21.81
Pt-Ir25%	1840	21.7
Pt-Ir30%	1860	22.15

Shenzhen Silver Technologies Ltd mainly acts as an agent, develops, produces and sells packaging tools and materials such as single crystal copper, copper alloy, key alloy wire, gold palladium copper wire, alloy wire, super-soft copper wire, packaged gold tape, pure aluminum wire, cleaver, steel nozzle, film, etc. At the same time, it can also tailor products with special parameters and requirements for enterprises.
Products of each project team:
1. High purity metal (pure platinum wire, pure gold particles, high purity silver wire, high purity single crystal copper)
2. Precious metal alloys (platinum iridium, platinum rhodium, gold and silver, gold and silver palladium, copper palladium, silver palladium, gold and tin alloys)
3. Copper alloy (silver copper alloy, tin copper alloy)
4. Stranded enameled wire (polyimide, polyurethane )
5. Semiconductor materials (key alloy belt, key alloy wire, gold palladium copper wire, pure aluminum wire, steel nozzle, cleaver)
6. Imported chips (Infineon, Ansemy, ST, TI)

---
