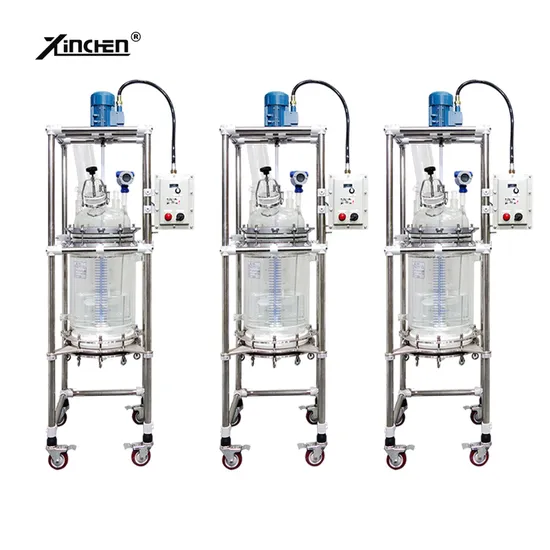

Lab Chemical Reactor Jacketed Double Layer Glass Stirred Tank Reactor

Product Description

Product Description The glass reactor can be designed to be double layer glass reactor or triple jacketed reactor .
The reaction solvent can be put into the inner layer to do stirring , inter-layer can be connected with cold and heat source to do circulating heating or cooling reaction.
Under the setting of constant temperature , in sealed glass reaction , stirring reaction can be carried out at atmospheric pressure or negative pressure conditions according to the operating , and also can carry out reflux and distillation of the reaction solution.
This machine is an ideal production equipment for the modern fine chemical , pharmaceutical and biological synthesis of new materials.
Products feature 1. The whole stainless steel supporting frame, 4-6 necks on the reactor lid, such as distillation & reflux , liquid feeding , temp sensor , stirring & mixing , etc .2. Glass reactor is made of G3.3 high borosilicate glass , with good chemical and physical properties .3. Alloy steel mechanical seal,magnetic fluid seal, PTFE connector , to maintain a high precision seal in the working condition.4. With PT100 sensor probe, high precision temperature measurement , small errors and high efficiency .5.AC reducer motor, strong torsion , no noise , etc.6.PTFE stirring paddle, suitable for low or high viscosity liquid stirring and mixing.7.PTFE discharge valve, movable interface , discharging and flushing completely and quickly.8.Can be according to customer requirements, such sand core filter , PH meter , Ex motor , Ex control box and Ex temp.
Product Parameters

Mode	XC-20L
Glass Material	G3.3
Neck No.on lid	6
Lid diameter	265mm
Place of Origin	Jiangsu, China
Applicable Industries	Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Other
Brand Name	XINCHEN
Power	140W
Product Name	Glass reactor
Capacity	20L
Heating method	Heat-transfer Oil Heating
Warranty	1 year
Jacket volume	6L
Vacuum Degree	-0.096MPa
Rotational speed(rpm)	50~600rmp
Other auxiliary equipments	Cool Chiller
Certification	CE ISO

Detailed Photos FAQ Delivery Time:* 10-15 days.Trade Terms: * FOB Shanghai/Ningbo/Guangzhou.* EXW , FOB ,CIF ,CFR, DDU, CIP are available.Technical Support* 24-hour technical support by email or by video.* Technical training service is provided to customers.Warranty * 12 months guarantee for whole machine.* Lifetime service for all sold equipment.Customized Service * Professional system solutions can be provided according to customer's drawings or requirements.* We have R&D team and designers who can work for customer's project.* Drawings, production and testing will be conducted under customer's inspection.* OEM, ODM products are supplied.

---
