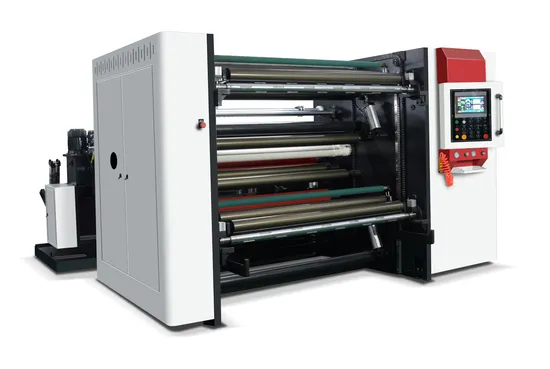

Easy to Operate Slitter Rewinder for Wallpaper Oil Proof Coated Kraft Paper Acid-Free Paper Label Sticker, Labelstock

Product Description

Product Description
Application:
We specially design HFQA with large rewind diameter (1000mm and even be customized to 1200mm) to fulfill the customer who wants to get big diameter finished rolls.
It is especially suitable for paper cup-making machines, paper bag-making machines, and packaging and printing industries in the next step.
The slitting machine cuts the entire roll or sheet of raw material into fixed lengths according to the requirements of the product. It has two winding methods: surface winding and center winding. The rewinding and unwinding tension adopts automatic tension control, and the control methods include tension feedback control and taper control. In addition, slitting machines are usually equipped with two slitting tools, circular knife shearing, and air knife cutting, which are reliable in quality and easy to adjust. At the same time, it also has an edge-cutting device that can discharge the edge material through the fan.
Suitable materials:
√ 30-500g of various paper (kraft paper, art paper, silicon paper, coated paper, newsprint paper and so on)
√ Sticky label (adhesive paper)
√ Various laminates (film to film, film to paper)
√ Film thickness≥30 micron
√ Nonwoven and so on Features:
1. Fuselage wallboard thickness 40mm; materials: Q235, ensure high-speed stable running.
2. All rubber rollers are made of polyurethane for a long time using
3. Three individual servo motors synchronous control traction and duplex rewind which provides accurate web tension are calculated by PLC automatically.
4. Germany Siemens PLC control system with touch screen brings much convenience for an operator, it has multi-functions like meter reached auto stop, tension auto control, and so on.
5. Shaftless unwind with hydraulic auto loading for heavy jumbo rolls. Web Guide system through the ultrasonic sensor to correct reel edge to guarantee feeding exactly.
Product Parameters
Main Parameter:

Model	HFQA-1100W	HFQA-1300W	HFQA-1600W	HFQA-1800W
Max. loading jumbo roll width (mm)	1100	1300	1600	1800
Max. loading jumbo roll diameter (mm)	Φ1400	Φ1400	Φ1400	Φ1400
Unwind the paper tube's inner core diameter	3" (76mm) & 6" (152mm)	3" (76mm) & 6" (152mm)	3" (76mm) & 6" (152mm)	3" (76mm) & 6" (152mm)
Slitting system	Shear Slitting Circular knife	Shear Slitting Circular knife	Shear Slitting Circular knife	Shear Slitting Circular knife
Rewinding system	Duplex rewind	Duplex rewind	Duplex rewind	Duplex rewind
Min. slit width (mm)	30	30	30	30
Rewind paper tube inner core diameter	3" (76mm)	3" (76mm)	3" (76mm)	3" (76mm)
Max. rewind diameter (mm)	1000 (Φ1200 is optional)	1000 (Φ1200 is optional)	1000 (Φ1200 is optional)	1000 (Φ1200 is optional)
Edge trimming system	Suction fan 2.2kw	Suction fan 2.2kw	Suction fan 2.2kw	Suction fan 2.2kw
Machine speed	<400m/min	<400m/min	<400m/min	<400m/min
Cutting thickness	30-500gsm	30-500gsm	30-500gsm	30-500gsm
Total power (KW)	20	20	28	36
Power supply	380V, 3P, 50HZ	380V, 3P, 50HZ	380V, 3P, 50HZ	380V, 3P, 50HZ
Air supply	0.6-0.8 Mpa, 0.8m3/Min	0.6-0.8 Mpa, 0.8m3/Min	0.6-0.8 Mpa, 0.8m3/Min	0.6-0.8 Mpa, 0.8m3/Min
Weight(kg)	3000	3200	3400	3600
Overall Dimension(mm)	3680*2850*2000	3680*3150*2000	3680*3450*2000	3680*3650*2000

Detailed Photos
Introduction:
1. Shaftless unwind with auto hydraulic lifting. Equipped standard 3" &6" step chuck.
2. Equipped web guide system for edge detection. Ensure the material feeding is exact.
3. Traction uses a double rubber roller with TPU material driven for both thin and thick paper.
4. Easy-setting rotary shear knife *10sets install on machine for slitting
5. Duplex rewind with 3" airshaft center winding.
6. Flip-type control panel makes it convenient for operators
7. The arrangement of buttons has been designed for easy operation
8. All electrical appliances comply with the China 3C certificate standard. Safe and long-lasting.
9. Problem diagnosis function on the touch screen, if any problems occur, you can check the I/O page to find it
10. Special Customization is Available.
More details display:
1. The electrical control components are selected from well-known brands, and the circuit layout is clear which is convenient for maintenance and adjustment.
2. The frequency converter derives servo motors to ensure stable running for high speed.
3. The rewinding shafts output tension stable, so after sitting and rewinding the finished roll's surface is very flat and smooth. these finish rolls are tight and hard. The siting precision can reach ±0.2mm.
4. German PLC Control Brown Kraft Paper Jumbo Roll Slitting and Rewinding Machine for Paper Cups Bottom with Photo Eyes Web Guider
5. High speed, stable running, automatic tension control, intelligent PLC control system, easy operating, CE certificated by SGS. Our slitting rewinding machine is ideal equipment for cutting paper jumbo rolls into various width small rolls to reach rolls feeding manufacturing machine requirements. It can cut general paper rolls and work on laminated and coated paper roll material for manufacturing printing and packaging products.
Company Profile
Honco Machinery Co., Ltd. is located in Wanquan Town, Pingyang County, Wenzhou City, Zhejiang Province. It is an intelligent equipment professional manufacturing enterprise that involves R&D, production, and marketing. We specialize in manufacturing roll-to-roll slitting machinery and roll-to-sheet cutting machinery. They are widely used in the paper converting, printing, and packaging industries.
Nowadays we have serial products, HFQA series economical paper slitting machine, HFQB series high-speed intelligent surface winding slitting machine, HFQC series high-speed slitter rewinder with the differential shaft, HFQD supper high-speed drum type slitter rewinder, HFQL frame type big jumbo roll slitter rewinder, HKA series automatic cross-cutting machine, HKZ series intelligent high-precision cross-cutting machine with auto stacker, HKS series roll to sheet cutter with conveyor stacker and so on. To provide the best quality machine and after-sales service to customers, we will continue to absorb the advanced technology of similar products at home and abroad, and try our best to give play to its innovative ability to improve the machine to meet customer's different requirements
Packaging & Shipping
Exhibition
FAQ
Pre-sales issues _____ 01. Where is the factory location? Direct to the company: Building 1, 1st Floor, Ruiniao E-commerce Industrial Park, Wanquan Town, Pingyang County, Wenzhou City, Zhejiang Province
02. How to answer technical guidance?
For some customers who need non-standard equipment, we will communicate with the company's relevant technical personnel according to the customer's specific requirements, taking into account the technical feasibility and production costs, and give customers solutions.
03. What should I do to choose a suitable machine?
Offering us some info about your requirement, like material and the thickness range of material.

Problems in sale _____ 01. About payment
After signing the contract, 30% of the total payment will be paid in advance, and the factory will accept the payment and pay the full amount of the machine for delivery.
02. About delivery time
About 30-45 working days after receiving the deposit (non-standard machine), the factory will re-decide whether to change the delivery date when the order is confirmed. The standard machine is generally within 30 working days after receiving the deposit.
03. Order tracking
After the customer places an order, our company will send professional personnel to track the order and regularly report the production progress to the customer.
04. Product packaging
Before the product is shipped, it will be packed in a waterproof film plus a bottom tray (wooden pallet)
05. Product Transportation
Products are generally shipped from Ningbo Port, China to the destination port by sea.

after-sales question _____ 01. Shelf life/warranty period of the product
The product warranty period is generally one year, and our company provides lifetime maintenance services. If the machine has quality problems, our company will help the customer to solve it through the following ways: a. Send spare parts to the customer. b. Remotely assist customers in maintenance. c. Notify our agent company to send personnel to the customer's factory for maintenance. d. Our company directly dispatches relevant personnel to the customer's factory for maintenance.
02. About transportation damage
In the process of product transportation, if product damage occurs, if determined that our product packaging and reinforcement work is not in place, and our company will bear the corresponding losses.
03. About machine maintenance
We will contact customers regularly on how to maintain and maintain the machine. For domestic customers, we will have a master to provide on-site service.
04. Problems during use
If there is any problem in the process of using the product, the customer can directly call or send an email to our after-sales department (24-hour hotline). The personnel of our department will respond immediately and decide on the response measures within 24 hours.
