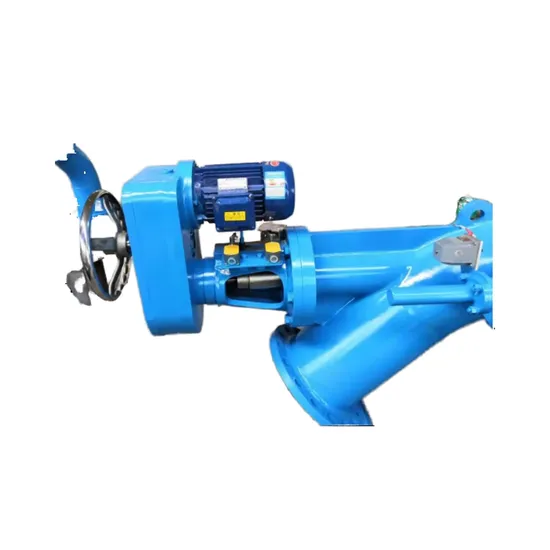

Small Francis Pelton Kaplan Micro Hydroelectric Power System Hydro Turbine Generator Price

Product Description

Product Description
Hydro turbine generator is droved directly or indirectly by hydro turbine. The rotating speed is less than 1500r/min, with horizontal and vertical arrangement. Excitation mode with brushless and static silicon type. Components including stator, rotor, base frame, bearing, excitation motor or collecting ring. The outlet voltage from 400V to 13.8KV, and frequency could be 50Hz or 60Hz, output from 50Kw to 50Mw. Our generator are high efficiency, reliable, manufacture and tests all follow related IEC standards.
Hydroelectric generator consists of the following main parts. Dynamos generate pulsing direct current through the use of a commutator. Alternators generate alternating current. Mechanically a generator consists of a rotating part and a stationary part.

Armature: The power-producing component of an electrical machine. In a generator, alternator, or dynamo the armature windings generate the electric current, which provides power to an external circuit. The armature can be on either the rotor or the stator, depending on the design, with the field coil or magnet on the other part.

Field winding or field magnets (PMs): The magnetic field producing component of an electrical machine. The magnetic field of the dynamo or alternator can be provided by either wire windings called field coils or permanent magnets. Electrically excited generators includes an excitation system to control the field winding flux. A generator using permanent magnets (PMs) is sometimes called a magneto, or permanent magnet synchronous generators (PMSMs).

Rotor: The rotating part of an electrical machine.the rotor is a moving component of an electromagnetic system in the electric motor, electric generator, or alternator. Its rotation is due to the interaction between the windings and magnetic fields which produces a torque around the rotor's axis.

Stator: The stator is the stationary part of a rotary system, found in electric generators, electric motors, sirens, mud motors or biological rotors. Energy flows through a stator to or from the rotating component of the system. In an electric motor, the stator provides a rotating magnetic field that drives the rotating armature; in a generator, the stator converts the rotating magnetic field to electric current. In fluid powered devices, the stator guides the flow of fluid to or from the rotating part of the system. The stationary part of an electrical machine, which surrounds the rotor. One of these parts generates a magnetic field, the other has a wire winding in which the changing field induces an electric current.
Why choose us?

1.More than 30 years of industry experience, install commissioning more than 150 equipment each year
2.Provide complete proposal for hydro power plant from water to wire
3.Abundant foreign power plant project implementation experience
4.Design and manufacture of hydro power generator with voltage 400V

Name	Horizontal Francis water turbine generator unit
No.	Item	Specification
1	Place of origin	Sichuan, China (Mainland)
2	Brand name	Wa Wu Shan
3	Color	Green, blue & Orange
4	Frequency	50Hz, 60Hz
5	Turbine capacity	50-20000KW
6	Generator connected	Synchronous generator
7	Service life	30-50years
8	MOQ	1 set
9	Payment terms	L/C,T/T
10	Delivery time	6 months after 30% down payment
11	Packing	Packed in wooden case, complying with export packing standard
12	Port	Negotiation or required by the customers
13	Inlet valve connected	Electric butterfly valve or Hydraulic hammer butterfly valve
14	Speed governor	Speed governor with PLC interface
15	Runner material	ZG0Cr13Ni4Mo
16	Supply ability	150 set/year
17	Exported area	Turkey, Vietnam, Indonesia, Albania
18	Superiority	Wide range for different water head Easy operation Optimum efficiency up to 94% Stable operation up to 50 years R & D support ISO9001:2008
19	Model number	Water turbine	Synchronous generator
		HLA130-WJ-97	SFWE-K-5000KW-8/2150
		HLA542-WJ-100	SFWE-K-3200KW-8
		HLA575C-WJ-60	SFWE-K-1000KW-6/1180
		HLA194-WJ-84	SFWE-K-3200KW-8/1730
		HLD50-WJ-57	SFWE-K400-6/850
		HLA708A-WJ-53	SFWE-K-400-6/850
		HLD307C-WJ-64	SFWE-K1400-6/1180
		HLA696-WJ-68	SFWE-K-2500KW-8/1730
		HLA253-WJ-71	SFWE-K-3200KW-6/1730

---
