Product Details
Product Description
Product Description
Features:

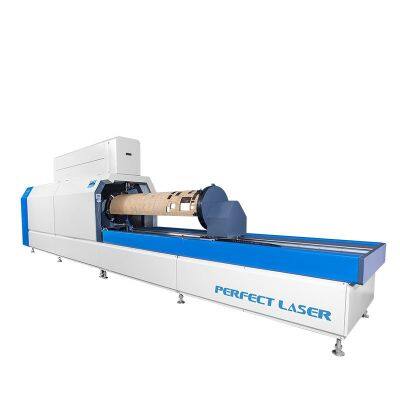

1. The laser head of this rotary die cutting machine has an automatic focusing function to solve the problem of unevenness of large template and round die board.
2. With double laser heads, the rotary die cutting machine can cut bidirectionally cutting from top and bottom at the same time, with high cutting efficiency, also assure the cutting seam to be straight.
3. Adopt Japan's imported Panasonic servo motor and Taiwan imported linear guide rail, ball screw drive system, equipped with the professional software developed by Perfect Laser, to ensure more stable performance of this die board laser cutter.
4. This rotary die cutting machine support CorelDraw, Auto-CAD, Photo-shop and other operating software, HPGL, PLT, AI, DXF and other file types to meet diverse design needs.
5. Compared with ordinary flat die board laser cutting machines, this rotary die cutting machine is faster and more cost-effective, and is more suitable for cutting large carton tamplates.
Tags: rotary die cutting machine, rotary die board laser cutting machine, die board laser cutter.
Technical Data:
Model
| PEC-3000 Rotary Die Board Laser Cutting Machine
|
Laser output power
| 150w×2pcs
|
Cutting size
| 230-800mm×1900mm
|
230-800mm×2900mm
|
Material size
| Φ180-540mm×2200mm
|
Φ180-540mm×3200mm
|
Cutting thickness
| 13mm/15mm
|
Cutting speed
| 260mm/min-500mm/min
|
Cutting accuracy
| horizontal ±0.05mm Arc±1.5mm
|
Knife slit width
| 0.4-1.5mm (adjustable)
|
Cooling mode
| Water cooling
|
Gas supply
| Compressed air
|
Power supply
| 220V/380V(AC)
|
>>
