4 Core Multimode Fiber Optic Cable Price Per Meter

US$0.10-0.30 2,000 Meters (MOQ)

Basic Info.

Model NO.
GYTS
Connection Structure
None
Material Shape
Round Wire
Allowed Lateral Pressure
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength
1000N<10000N
Core
4 Core
Certification
RoHS, CE, ISO9001, VDE
Brand
Hongan
Sheath Material
PE
Armor
Steel Tape
Length
2km
Jacket
PE
Structure
Loose Tube Stranded
Fiber
G652D
Service
OEM ODM
Color
Black
Strength Member
Metal
Installation
Duct /Aerail /Underground /Direct Buried
Transport Package
Wooden Drum
Specification
750*750*760
Trademark
Hongan
Origin
China
HS Code
854470
Production Capacity
5000000km/Month

Product Description


Product Description
Duct/UnderType 48 Core g652d Fiber Optic Cable

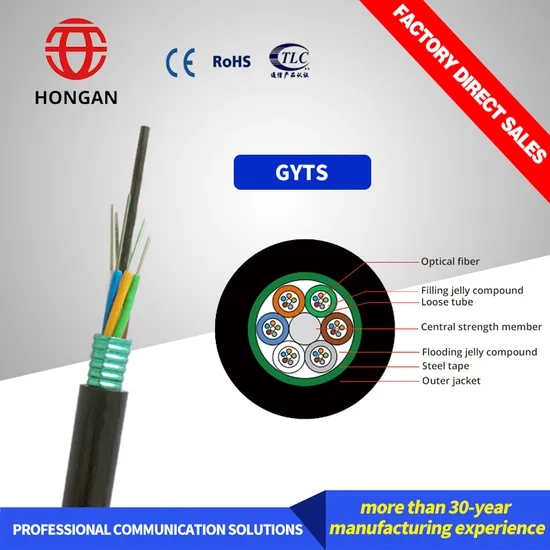

GYTS is used for duct or aerial applications. These steel tape armored cables are suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance. It is the stranded loose tube fiber optic cable with compact structure; the cable jacket is made of strong Polyethylene; High strength loose tube that is hydrolysis resistant. Hongan provides GYTS from 4 fiber cores to 288 fiber cores. Both single mode type and multimode types are available. We also provide Customized Service such as fiber number, fiber color and cable length, etc.
Item Parameters
Loose tube Material PBT
Color All colors display
Filler Material PE
Color Black
CSM Material Phosphating steel wire
Armoured Material Plastic coated steel strip
Outer jacket Material MDPE
Color Black
Min. bending radius Static 10 times cable diameter
Dynamic 20 times cable diameter
Repeating bending Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage.
Tensile performance Short term 1500N
Crush Short term 1000N/100mm
Torsion Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage.
Impact Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage.

Fiber count Structure Fibers per tube Loose tube diameter(mm) CSM diameter/pad diameter(mm) Thickness of outer jacket(mm) Cable diameter(mm) Cable Weight(kg/km)
4 1+5 4 1.7 ±0.1 1.4/1.4 1.6±0.1 9.0 ±0.5 84
6 1+5 6 1.7 ±0.1 1.4/1.4 1.6±0.1 9.0 ±0.5 84
8 1+5 4 1.7 ±0.1 1.4/1.4 1.6±0.1 9.0 ±0.5 85
12 1+5 6 1.7 ±0.1 1.4/1.4 1.6±0.1 9.0 ±0.5 85
18 1+5 6 1.7 ±0.1 1.4/1.4 1.6±0.1 9.0 ±0.5 85
24 1+5 6 1.7 ±0.1 1.4/1.4 1.6±0.1 9.0 ±0.5 86
30 1+5 6 1.7 ±0.1 1.4/1.4 1.6±0.1 9.0 ±0.5 86
36 1+6 6 1.7 ±0.1 1.8/1.8 1.6±0.1 9.4 ±0.5 100
48 1+5 12 2.0 ±0.1 1.4/1.4 1.6±0.1 9.7 ±0.5 97
60 1+5 12 2.0 ±0.1 1.4/1.4 1.6±0.1 9.7 ±0.5 97
72 1+6 12 2.0 ±0.1 2.0/2.0 1.6±0.1 10.4 ±0.5 124
84 1+7 12 2.0 ±0.1 1.8/2.9 1.6±0.1 11.3 ±0.5 136
96 1+8 12 2.0 ±0.1 1.8/3.5 1.6±0.1 12.0 ±0.5 149
108 1+9 12 2.0 ±0.1 1.8/4.2 1.6±0.1 12.7 ±0.5 165
120 1+10 12 2.0 ±0.1 1.8/4.9 1.6±0.1 13.4 ±0.5 180
132 1+11 12 2.0 ±0.1 1.8/5.5 1.6±0.1 14.0 ±0.5 194
144 1+12 12 2.0 ±0.1 1.8/6.3 1.6±0.1 14.8 ±0.5 213
192 1+6+12 12 2.0 ±0.1 2.2/2.2 1.6±0.1 14.7 ±0.5 225
216 1+6+12 12 2.0 ±0.1 2.2/2.2 1.6±0.1 14.7 ±0.5 226
288 1+9+15 12 2.0 ±0.1 2.2/4.2 1.6±0.1 16.7 ±0.5 285
Certification
Company Introduction
FAQ
1. Are you the real factory?
Yes,our factory is located in Shandong Province, near to Qingdao Port,having more than 30- years munufature experience. Welcome to visit.
2. What is your fiber brand?
Most fiber is from Weixin, a fiber brand owned by Hongan ourselves. But we also purchase fiber from Corning, YOFC and other brands.
3.What is your main products?
Our main products are outdoor and indoor fiber optic cable, FTTx cable, network cable and telephone cable.
4.What is your payment term?
30% in advance, 70% before delivery.
