Heavy Drilling Machine Big Drilling Machine with 63mm Drilling Capacity Z5163b

Product Description

1.Features
1)Drilling ,milling and tapping
2)Spindle speed step-changed cyclically,spindle auto-feeding and cyclic change of feed speed
3)Head swivels 360° horizontally
4)Headstock and worktable up &down perpendiculary
5)Super high column
6)Precision micro feed
7)Positive spindle lock
8)Distinct auto device for releasing tools operate very easily
9)Gear driven ,lower noise Main Applications This machine tool is a kind of universal machine tool which is mainly applicable for drilling as well as for hold slash, spot facing, chamfering, reaming, tapping, boring.
Headstock can be moved up and down, and rotated 360º around the vertical column, middle worktable can be move left and right or front and back , Headstock (except (Z5045/1)) can be leaned ±90º .
Move headstock and work table by worm gear, easily operate. Depth of dill is ensured by scale fixed on sleeve and Setting nut.
In order to easily change tools the automatic tool-stripping device is mounted in the spindle.

2.Specification

Specific ation	Z5163B
Max drilling diameter	63mm
Max.threading Dia.	M36
Spindle taper	MT5
Maximum spindle feed resistance	30000N
Maximum spindle torque N.M	800 N.m
The Distance from spindle to column	375mm
Stroke of spindle quill	250mm
Spindle box travel(manual)	250mm
Spindle speed step	9
Spindle speed range	40-570r.p.m
Spindle feed step	6
Spindle feed range	0.11-0.75mm/min
Table size	650x550mm
Vertical travel	300mm
Max distance between spindle and table surface	800mm
Main motor power	5.5kw
Motor of cooling pumps	40w
Speed of cooling pumps	25L/min
Overall size	1500x1130x2800mm
Net weiaht	2500kg

3.Standard accessories : Drill chuck,change sleeve Wedge-Wrenches and toolbox

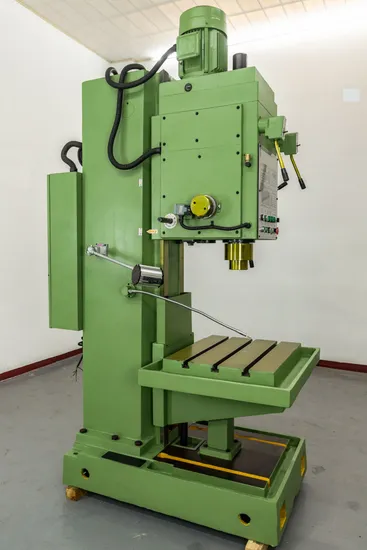

4.Machine photos
6.Manufacturing Capability

---
