US$2,900.00
|
1 Piece
(MOQ)
|
Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Certification
CE, ISO9001: 2000
Feature
Easy Operation Safety Convenience
Operator Type
Seated Drive
Transport Package
Container
Production Capacity
500unit/Month
Packaging & Delivery
Package Size
248.10cm * 115.00cm * 226.50cm
Package Gross Weight
4380.000kg
Product Description
Product Description
1.The double-cylinder air-cooled engine has high power,low fuel consumption,smooth operation and low noise. 2.Optional design of boom arm can easily achieve small space operation
3.Simple operation mode,convenient maintenance,perfect technical support and high reliability,high quality price-per-formance ratio and low use cost

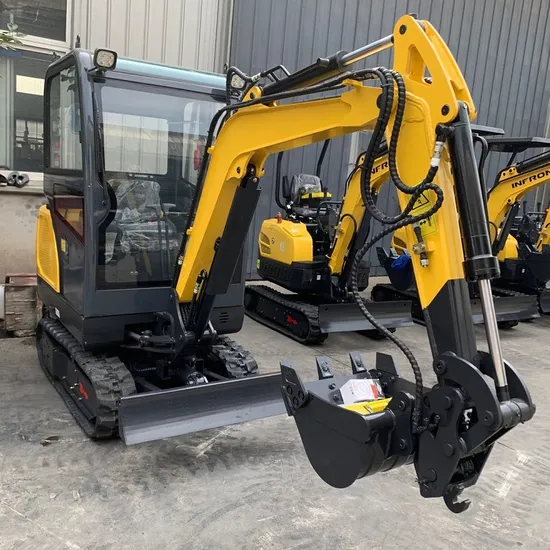

4.The whole machine is welded with low-alloy steel,and after aging treatment,the rigidity and stability of the whole vehicle KV series mini excavator
| Performance parameters | unit | specification |
| Self weight | kg | 1500 |
| Standard Bucket Capacity | m³ | 0.04 |
| Working device form | | Backhoe/Front shovel |
| engine model | | Changchai 390/Yanmar 3TNV70 |
| Rated power/speed | kw/rmp | Changchai 20/Yanmar 14.6 |
| System pressure | Mpa | 16 |
| Swing speed | rmp | 11 |
| Maximum climbing angle | ° | 35 |
| Walking speed (high speed/low speed) | km/h | 1.5 |
| fuel tank volume | L | 18 |
| size | unit | specification |
| wheelbase | mm | 1100 |
| total track length | mm | 1300 |
| Platform ground clearance | mm | 400 |
| Chassis width | mm | 1100 |
| Track width | mm | 180 |
| Track material | | rubber track |
| full vehicle height | mm | 2200 (retracted) |
| The scope of work | unit | specification |
| Maximum ground excavation radius | mm | 2400 |
| Maximum excavation depth | mm | 1850 |
| Maximum excavation height | mm | 2740 |
| Maximum unloading height | mm | 1850 |
| Maximum vertical excavator depth | mm | 1450 |
| Minimum radius of gyration | mm | 1200 |
| Maximum lifting height of bulldozer | mm | 150 |
| Bulldozer maximum digging depth | mm | 180 |
| Bulldozer maximum digging depth | mm | 180 |
>>
