High Quality Servo Motor Fast Speed Wood Acrylic Leather CO2 CNC Laser Cutting Engraving Machine

Product Description

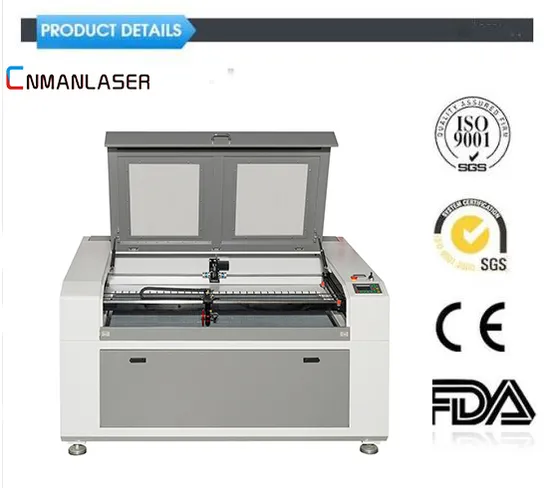

1390 High Quality Servo Motor Fast Speed Wood Acrylic Leather CO2 CNC Laser Cutting Engraving Machine
PRODUCTION :
1.Small and Medium machine size--very popular model.
2. Machine can add with 60W, 80W, 100W and 150W laser tube, which can be used for engraving and cutting work.
3. Laser Tube 80W, 100W and 150W all use RECI brand--one of the best laser tube brands in this in dustry.
4. Machine color is optional.
TECHNICAL PARAMETER :

Model	MAN-1390
Working area	1300*900mm
Laser power	60w/80w/100w/Option
Laser type	Sealed CO2 laser tube
Cooling type	Water cooling
Engraving speed	0-60000mm/min
Cutting speed	0-30000mm/min
Laser output control	0-100% set by software
Min engraving speed	Chinese: 2.0mm*2.0mm, English letter: 1.0mm*1.0mm
Locating precision	+0.01mm
Controlling software:	DSP control system
Graphic format supported	DST PLT BMP DXF DWG AI LAS,etc
Compatible software	TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,etc
Color separation	Yes
Drive system	High-precision stepper motor
Auxiliary equipments	Exhaust fan and air exhaust pipe
power supply	AC110V-220V+10%,50HZ/60HZ
Working environment	Temperature:0-45, Humidity 5-95%(No condensate water)
Optional parts	up&down table, Auto-focus device, rotary device etc

DETAILS IMAGES :
Feature :

1. CO2 Glass sealed laser tube
China famous brand ( Reci ), good beam mode stability, service time over 1500~8000 working hours.
2. Laser Power
40W~180W, good quality and stable output to extend the laser tube service time.
3. imported lens and mirrors
High transmittance, good focusing, reflecting effect.
4. DSP control system, Leetro Controller
Leetro USB controller. USB interface, support online/offline working, English language system, adjustable cutting speed and power.
5. High accuracy stepper motors and drivers. Belt transmission
6. Aluminium blade table
7. HIWIN Linear guide rails
8. Laser cut software, user's manual
9. Tool box
10. Industrial Cooling System
Constant water temperature ensures laser tube a longer service time and high stability
11. Exhaust Fan
Exhaust fan removes dust and smoke to protect the optical parts and the users.
12. Electromagnetic air pump
The air blowing protects the lens from smoke and dust pollution. Also it protects the material being processed from fire or burned.
1. Red dot
The laser is invisible. Red dot shows the position of the laser on the material. It's more convenient for location.
2. Honeycomb or blade table optional
Aluminum blade table is for processing acrylic, wood and other hard materials;
Honeycomb table is for processing cloth, leather and other soft materials.
3. Up/down Z-axis
You can adjust the table height by operating the Z-axis to process thick materials. Z-axis is also a must when you need to use auto focusing and rotary.
4. Auto focusing
Auto focusing automatically adjust the focusing distance.
5. Rotary
Rotary is used when processing cylindrical objects like bottles, cups, sticks, etc.
SAMPLE SHOW :
Applicable Materials:
Materials Such As Acrylic, Wood Planks(Light Planks,Candlenut Wood),Bamboo Ware,
Double Color Board,Paper, Leather, Shell, Coconut Shell, Ox Horn, Resin Animal Grease,
ABS Board,Lampshade, Etc.
Applicable Industries:
Mould Industry (Construction Mould, Aviation And Navigation Mould, Wooden Mould),
Advertising, Decoration,Arts And Crafts, Electronics, Electric Appliances, Etc.
CO2 Laser tube power can decide the cutting thickness:

Laser power/thickness	Acrylic/mm	Plywood/mm	MDF/mm
60W	8	5	4
W2(90--100w)	12	8	7
W4(100--130w)	15	10	9
W6(130--160w)	20	15	13
W8(150--180w)	30	20	20

PACKAGING & SHIPPING :
Packages:
Firstly our worker will make sure your machine clean before package, then add Stretchy film for the whole machine and spare parts for sweet
protection, at last we will make export standard strong plywood case package according to your needs.
Transport:
We will provide various ways of transportation.
1 By sea / 2 By air / 3 By train / 4 By car
SERVICES :
1) Machine has been adjusted and tested before delivery,we will take the testing videos for you to check the machine if asked.
2) 24 months guarantee of the whole machine
3) Main parts(excluding the consumables like lens and mirrors)shall be changed free of charge if there is any problem during the warranty period.
4) We will provide the consumable parts at an agency price when you need replaceme
5) 24 hours support by mobile,whatapp,wechat ,skype online service,we are always here support
6) Maintenance and technological support: Whole life.
7) . Maintenance and technological support: Whole life.
8 ). Engineers available to service machinery overseas.
FAQ :
Q1: How can I choose the best machine for me?
You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not.
Then we can give you the best model depends on our experience.
we can supply many models . (20*30cm,30*40cm,40*60cm,60*90cm,90*130cm,130*250cm) , and laser wattage (ranging from 40 watts to 300 watts)
If you'd like help determining which laser is right for your application or receive pricing information.
Q2: Is it easy to operate for user?
We will send you manual and guide video in English, it can teach you how to operate the machine. If you still cannot learn how to use it,
we can help you by "Team viewer" online help software. Or we can talk by phone, email or other contact ways.
Q3: Is the machine safe to operate?
Yes, the laser is completely safe to operate. Laser machines offer so many safe system, like leakage proof socket, emergency stop button ,
water alarm, red dot focus.
Q4: What's the guarantee, in case the machine breaks down?
The machine has 2 years guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client
s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality problem under "normal use". .
Q5: How's the payment? How long is the delivery time?
Telegraphic Transfer(T/T) to our official company bank account or Western Union(WU)
For standard machines, it would be 5-10days; For non-standard machines and customized machines according to client s specific requirements,
it would be 15 to 30 days.
Q6: Do You Arrange Shipment For The Machines?
Yes, we could use door to door express ,air plane way to your air port and sea shipping way to your sea port.
Based on EXW (factory price),FOB terms(Free on board),CIF terms(cost, insurance and freight)

---
