Newamstar Pet Bottle Blow Making Machine

Product Description

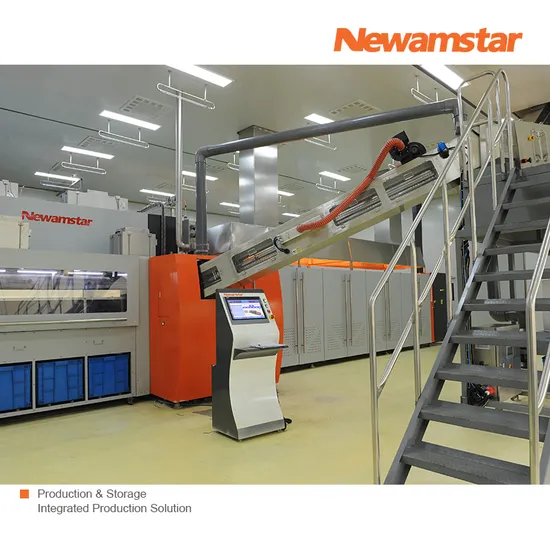

Newamstar High-speed Blowing-filing-capping Combiblock combines the blowing, filing and capping system reducing transmission, empty bottle handling, storage processes, which improved packaging hygienic condition and reduce packaging cross-contamination so as to improve the overall operating efficiency but lower the energy consumption, thereby reduce the overall production cost of enterprises.
Advantages
Blowing unit
High-speed blow valve group with high-speed network control ensures blowing technic precision and unification.
Three-dimensional dynamic simulating design ensures exact and reliable cam transmission and mesh.
High-pressure blow valve group optimum design helps save air a lot.
Quick-change for mould.
Wearable aluminum alloy mould surface with special treatment of hardness.
Key points automatic lubrication.
Filling unit
High-speed and high-precision filling valve: 200ml/s, ± 3mm.
Servo drive system
With CIP function
Capping unit
Magnetic constant torque, defective rate≤ 0.2%
Reversal caps ejecting device
No bottle, no feeding cap.
Main Products:

Beverage Processing System		System	Equipment	Design capacity
		Water Treatment System	Pre-filtration System\Membrane Separation System\Sterilization System	5-100 T/hr
		Processing System	Dissolving Unit\Extraction Unit\Fermentation Unit\Blending Constant Volume Unit	5-60 T/hr
			UHT System\CIP System\ Disinfectant System\Carbon Mixer
Packaging System	System		Equipment	Design capacity
	Blow Moulding System		0.25~15L	1200-81000 BPH
	Filling System		Water Filling\Aseptic Filling\Ultra-clean Filling\Hot Filling\CSD Filling	1200~81000 BPH
	Combibloc		Starbloc\(Big)Bottled Water Combibloc\Aseptic Combibloc\Ultra-clean Combibloc\CSD Combibloc\ Hot-fill Combibloc\ Non-beverage Combibloc	1200-81000 BPH
	Conveying System		Air Conveyor\ Bottle Unscrambler\ Bottle tilting chain\ Showering Cooling Tunnel\ Bottle Warmer\ Bottle(Case, Pallet) Conveyor	5000~81000 BPH
External Packing System		System	Equipment	Design capacity
		Film Wrapper	Transparent\Colorful Film	60~120 box(case)/min
		Carton Packer	Robot Packer\ Wrap around packer	60~120 box(case)/min
		Bottle(Can) Palletizer(Depalletizer)	PET Bottle\Can\Glass Bottle	5000-72000 BPH
		Case Palletizer(Depalletizer)	Carton\Plastic Crate	5000-81000 BPH
		Labeler	Hot Glue\Self-adhesive Sticker\ Cold Glue\Pre-applied Glue	6000-48000 BPH
Internal logistics system		System	Equipment	Remark
		Intelligent Warehouse	Rail Guided Vehicle\Automated Guided Vehicle\Stacker\ Automated Loading System
		Warehouse Control System	Racking System
		Warehouse Management System	WMS combined with Enterprise's system
Management Platform for Intelligent Factory		System	Equipment	Remark
		Central Electrical Control System for Whole Line	Operation Monitoring\Data Collection\Reports\Energy Management
		Remote	24 hours customer service line\Remote diagnosis to solve technical fault quickly\Professional support & technical training

---
