CNC Horizontal Drilling and Grinding Machine for Quartz Glass

Product Description

CNC Horizontal Drilling and Grinding Machine For Quartz Glass

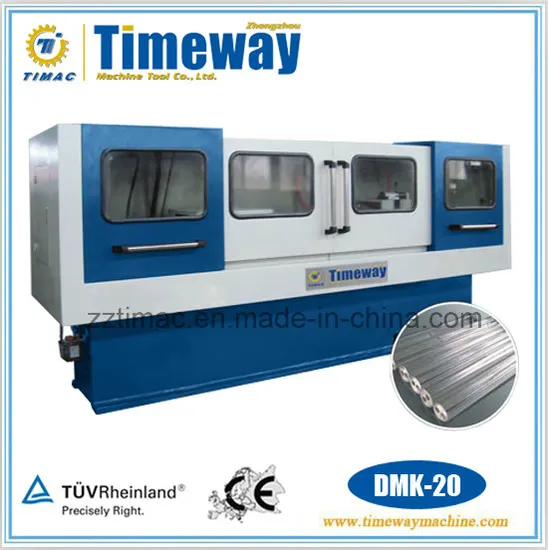

DMK-20 DMK-80E
Product Description:
The machine is suitable for optical fibre abd cable, it can cutting certain-size deep hole according to the requirements of a specific location on certain diameter of high purity quartz glass rod.

Technical Parameter

Specification	Unit	DMK-20
Drilling diameter range	mm	Φ10-20
Max. drilling depth	mm	1050
Spindle center height	mm	175
X-axis travel	mm	100
Drilling-bar box spindle speed	rpm	4000-12000
Feed speed range	mm/min	0-500
Rapid feed speed	mm/min	2000
Z-axis feed motor torque	N.m	6.36
Z-axis feed motor power	kw	2
X-axis feed motor torque	N.m	7.5
X-axis feed motor power	kw	1.5
Drilling-bar box motor power	kw	3.5
Oil pump motor power	kw	4
Total power	kw	15
CNC system	-	KND 100Ti
Max. cooling system pressure	Mpa	1.5
Coolant flow	L/h	1500
Coolant filtration precision	um	20
Machine dimension(LxWxH)	mm	3710x2700x1700
Machine weight	kg	6000

Specification	Unit	DMK-80E
Drilling diameter range	mm	83
Max. drilling depth	mm	1500
Max. diameter of workpiece	mm	200
Drilling-bar box spindle speed	rpm	3000
Workpiece speed range	rpm	0-20
Max. cooling system pressure	Mpa	1.5
Coolant flow	L/h	1500
Hydraulic system pressure	Mpa	6
Hydraulic system power	kw	2.2
Feed motor power	kw	4.2
Main motor power	kw	5.5
Coolant power	kw	4
CNC system	-	KND 1000Ti
Machine dimension(LxWxH)	mm	5000x1400x1600
Machine weight	kg	8000

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
