Surgical Body Gown Making Machine+Surgical Gown Sleeve Making Machine

Product Description

Surgical Body Gown Making Machine+Surgical Gown Sleeve Making Machine+Urtrasonic Sewing Machine

Introduction:
The hospital clinic use surgical gown body cloth making machine is mainly for making the medical gown for hospital, clinic, doctor department.
Medical gown production line process: Produce Surgical Gown Body _Produce Sleeve_ Sewing Sleeve And Gown.The whole finished product producing, including surgical gown body making machine, sleeve making machine, sewing machine.

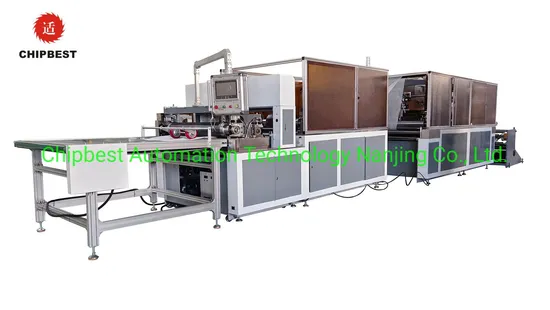

Surgical Gown Production Machine Referred Picture:

Gown Body Making Machine Parameters :

Machine Name	JS-AG 20 To 30 PCS Per Minute Hospital Clinic Use Surgical Gown Body Cloth Making Machine
Production Speed	20-30PCS/MIN
Voltage	380V, 50Hz
Overall size	L10000*W3180*H2000mm
Power	25 KW
Machine weight	About 2100KGS

Finished Gown Body Display :


1.Unwinding Part:Hydraulic shaftless feeding, hydraulic adjustment material width,the width can be adjusted left and right. Double magnetic powder brake, automatic tension control, photoelectric control, feeding type deviation correction control.
2.Traction Part:Double servo motor traction(servo motors control the forward traction and reserve traction) to adjust the length of gown.
Belt Weld Part:The belt can be ultrasonic weld and servo motor controls the length of belt ,then pneumatic cut the belt.
3.Neckline Cutting Part:Driven by servo motor, the position of cutter die can be adjusted arbitrarily
4.Gown Body Fold Part:C-type fold,the mould size can be adjusted
5.Shoulder Weld Part:Driven by servo motor, ultrasonic weld mould,the mould position and size can be adjusted.
6.Armhole Cutting Part:With laser cutting and servo drive, the size of armhole can be adjusted arbitrarily. It can be connected with sleeve making machine to make a whole surgical gown with different sizes.
7.Shoulder Cut Part:Driven by servo motor, the position of cutter die can be adjusted arbitrarily.
8.Conveyor Belt Part:Independent conveyor table.
9.PLC Touch Screen:PLC touch screen control.

Main Configuration Of gown body making machine

No.	Name	Qty
1	Touch Screen	three
2	PLC	One
3	Automatic tension control	1set
4	EPC device	1set
5	15K ultrasonic system	4 sets
6	20K ultrasonic system	8 sets
7	Servo motor with motion controller	18sets
8	Feeding motor	1pcs
9	Imported Cutting mould	Several
10	laser cutting	2sets
11	Cylinder	38pcs
12	Electromagnetic valve	28pcs
13	Hydraulic automatic feeding and unwinding shaft	1pcs
14	Auto edge fold device	1set

Spare Parts :


Nonwoven Sleeve Making Machine Picture :

Nonwoven Sleeve Making Machine Size	5000×2000×1800mm (L*W*H)
Best speed	40-60 PCS/min
Voltage	380 V ,3 phase ,4 lines
Ultrasonic Set	2 Sets
Machine Working Power	5 KW
Machine weight	1200 kg

Finished Sleeve Product Photo:
Nonwoven Sleeve Making Machine Parts Photos :


Sewing Machine Picture For Gown & Sleeve :

Gown & Sleeve Sewing Machine Parameters :

Machine Name	Sewing Machine For Gown & Sleeve :
Source power	220V±10V
Input power	2KW
Output frequency	20KHZ
Working speed	0-20m/min
Roller width	5~10mm
Dimension	800*600*1200mm(L*W*H)
Net weight	About 100KG
Air compressor	needed (customer prepare)

Package : (packed with standard exported plywood case)

---
