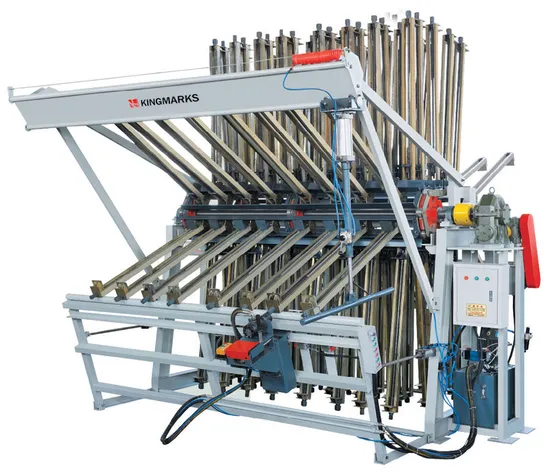

Hydraulic Clamp Carrier for Finger Joint Board

Product Description

Product Description
Semi-Auto Clamp Carrier is used to laminate Products such as Table Tops, Butcher Blocks, Stair Treads, Turnings, Mouldings, Cabinet Door Panels, Waste Recovery, Lumber Banding, and many more applications.
Features:
1.Panel Flattener is designed to hold stock flat while each clamp is tightened.
The Flattener rides on ball bearings on an overhead beam. The hand valve to energize the cylinder is interlocked with the Semi Auto Tightener for a rapid and safe operation. The Flattener will stay energized until the operator rotate the hand valve to release pressure.
2. The Semi Automatic Tightener's ergonomic design reduces operator effort and increases productivity. The tightener carriage rides on ball bearings for quick and easy positioning to clamp on the front rest. A simple push or pull of the lever allows the Tightener to engage the clamp for tightening or loosening.
The Tightener is offered in either Pneumatic or Hydraulic, which provides a more uniform pressure that an impact type of Tool.
3.Hold down bars can be used on thin panels to eliminate bowing. These are placed over the panel and over a clamp. They are held in place while the panel cures.
Detailed Photos
The Semi Automatic Tightener's ergonomic design reduces operator effort and increases productivity. The tightener carriage rides on ball bearings for quick and easy positioning to clamp on the front rest. A simple push or pull of the lever allows the Tightener to engage the clamp for tightening or loosening.
The Tightener is offered in either Pneumatic or Hydraulic, which provides a more uniform pressure that an impact type of Tool.
Hold down bars can be used on thin panels to eliminate bowing. These are placed over the panel and over a clamp. They are held in place while the panel cures.

Our Advantages

Product Parameters

Model	KCC1325-6H	KCC1325-8H
Max. Processing length	2500mm	2500mm
Max. Processing width	1250mm	1250mm
Processing thickness	8-90mm	8-90mm
Section	6	8
Clamp quantity per section	8pcs	8pcs
Hold down bar quantity per section	4pcs	4pcs
Quantity of clamp tightener	1pc	1pc
Quantity of pneumatic panel flattener	1pc	1pc
Hydraulic motor power	4kw	4kw
Rated pressure	0.6Mpa	0.6Mpa
Rotary motor power	1.1kw	1.1kw
Overall dimensions	3980*3900*3800mm	3980*3900*3800mm
Packing size	3800*1700*2250mm	3800*1700*2250mm
Net weight	3200kgs	3600kgs

Packaging & Shipping
After passed the quality inspection, the machine will be wiped with biodegradable anti-rust oil to protect from the humid sea air. Then use PE film packaging.
Installation Instructions
We can supply the installation operation videos for customers.
FAQ
1) Q: What's the MOQ?
A: One set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can.
3) Q: What's the payment terms?
A: T/T 30% as deposit and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company. KINGMARKS is our brand.
5) Q: How long is the warranty period?
A: One year except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.

---
