Product Description
Product Description

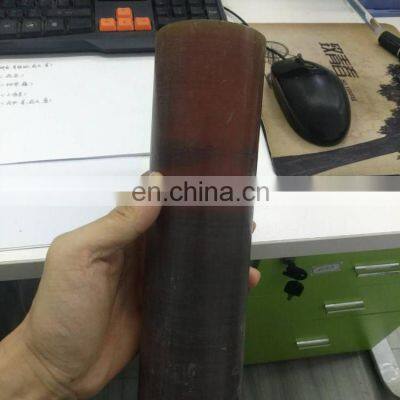

Amber Polyetherimide PEI Ultem block PEI 1000 sheet
Description:
Amber Polyetherimide PEI Ultem block PEI 1000 sheet:PEI(Ultem,polyetherimide) is an amorphous, translucent engineering thermoplastic with high mechanical efficiency, also with good thermal resistance and chemical stability(Temperature: Up to +170°C ,+200°C short term), high dimensional stability and creep strength. It has the best torsional strength of all thermoplastic plastics, so it has become a cheap substitute for small steel cutting parts.
Key Features:
Suitable for repeated hot steam sterilization. Easily machined but susceptible to stress cracking. Care required with coolant. Self-extinguishing V-0.Applications:
Metering equipmentsterilization tanksmicrowave partscoil formersinsulatorssensor housingssurgical instrumentslight socketsflangesswitch partsvalve bodiessight glasses
Related data :
| Items | Property
| Unit
| Value
|
Mechanical
| Modulus of Elasticity ( Tensile Test )
| MPa
| 3200
|
Tensile Strength
| MPa
| 127
|
Tensile Strength at Yield
| MPa
| 127
|
Elongation at Yield
| %
| 7
|
Elongation at Break
| %
| 35
|
Flexural Strength
| MPa
| 164 |
Compression Strength
| MPa
| 35
|
Compresion Modulus
| MPa
| 2800
|
Impact Strength
| kj/m^2
| 113
|
Thermal
| Glass Transition Temperature
| ℃
| 216
|
Melting Temperature
| ℃
| N/A
|
| Service Temperature Short Term | ℃ | 200 |
| Service Temperature Long Term | ℃ | 170 |
| Thermal Expansion 23-100℃ long | 10^-5K^-1 | 5 |
Thermal Expansion 100-150℃ long
| 10^-5K^-1
| 6
|
| Specific Heat | J/(g*k) | 1.2 |
Thermal Conductivity
| W/(K*m)
| 0.21
|
Electrical
| Specific Surface Resistance
| Ω
| 10^14
|
Specific Volume Resistance
| Ω*CM
| 10^14
|
other
| Water Absorption
| %
| 0.05/0.1
|
Flammability ( UL94 )
| -
| V0
|
