Fast Sh-Dtdp-3.0 380V 50Hz Semi-Automatic Wire Cable Winding

Product Description

Product Description

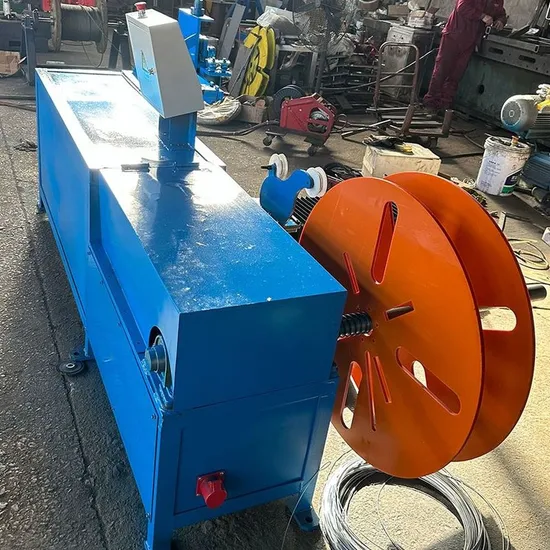

Semi-Automatic Winding Machine
This reversing machine is mainly designed for dividing steel wire ropes for elevators, Solving the problems of difficult clamping. Difficult demolding, and high manual labor intensity in the past. At the same time, it also solves the problem of noncircular and uneven steel wire rope discs, Enterprises, workshops, processing workshops, storefront operations, and other pieces can all be used, improving production efficiency and safety.
After debugging the relevant parameters, with one click start, the motor rotates forward and drives the winding mechanism to run, At the same time, the cable puller arranges the cables and the meter counter records the meters, which can slow down in advance, stop running until the meter is reached, and perform unloading and packaging work, After resetting, proceed to the next work, Easy to operate, convenient for one person to work, time-saving and labor-saving.
Working voltage: SH-DTDP-1.0 (2.0.3.0) external 380v, three-wire four-wire AC power supply. The neutral line must be connected.
Operating speed: The maximum speed regulation of the frequency converter is 50HZ, But it is not recommended to operate at the highest speed.
Maximum wire diameter: 22MM.
Product Parameters

WINDING MACHINE SPECIFICATION
Product Name	Semi-Automatic Winding Machine
Keywords	Winding Machine
Series Model	SH-DTDP-3.0
Overall Size	2270mm*1330mm*1200mm
Net Weight	400KG
Wiring	2.5 Square Copper Core Cable
Wiring Method	Three-Phase Five-Wire Wiring
Working Voltage	Not Exceeding 380V
Working Power Supply	Three-Wire Four-Wire AC Power Supply
Operating Speed	Inverter Maximum Speed Regulation 50HZ
Maximum Wire Diameter	22mm
Usage	Enterprises, Workshops, Processing Workshops, Store Operations, Etc.
Customization	Accept
MOQ	Low MOQ
Sample	Accept
After Sales Service Is Guaranteed.

Detailed Photos
FAULTS AND ALARMS
In case of emergency, press the emergency stop button to stop the machine.

FAULTS AND ALARMS
The equipment has various safety protection measures such as overvoltage, overcurrent, overload, and overheating. under voltage, and under voltage.
SECURITY AND MAINTENANCE
During the work process, it is important to coordinate the running speed well and avoid safety accidents caused by high-speed operation.
SECURITY AND MAINTENANCE
Do not overload the operation to avoid damaging the equipment or burning out the motor and electrical components.
SECURITY AND MAINTENANCE
Regularly clamp lubricating oil on the gearbox and observe the temperature rise and noise of the motor. if the temperature rise exceeds 85 degrees, stop the machine for inspection.
FAQ
Q1: Can l get some samples?
A1: We are honored to offer you samples for quality check. But you need to pay the shipping fee.
Q2: Do you have the products in stock?
A2: Are to be produced according to your order including: Not samples.
Q3: What's the delivery time?
A3: It usually takes about 25 working days to produce an order from MOQ to a 40HQ container. But the exact delivery time might be different for different orders or at different times.
Q4: How does your factory do regarding quality control?
A4: Quality is a priority. We always attach great importance to quality control from the very beginning to the end of production. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q5: What is your payment?
A5: TT
Q6: What are your shipping terms?
A6: EXW.FOB.CNF.CIF.

---
